Basic information

In poultry business, most of the poultry farmers have a common characteristic where their poultry farm is located in an area where there is high temperature, high humidity and abundant rainfall. So, Luoto carried out this project to explain how poultry farmers can opt for high-rise poultry house and our battery cage system to avoid the effect of constant heat or cold. We advice our customers to get a battery cage system because it helps to solve all chicken rearing troubles like prevention of disease spread, saves labour and less of feed wastage

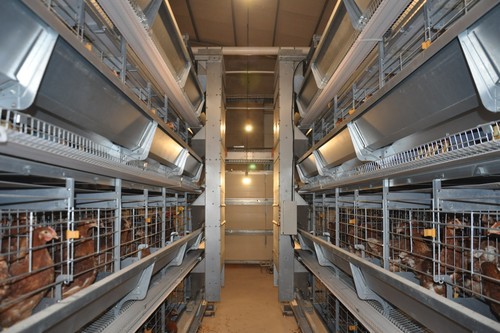

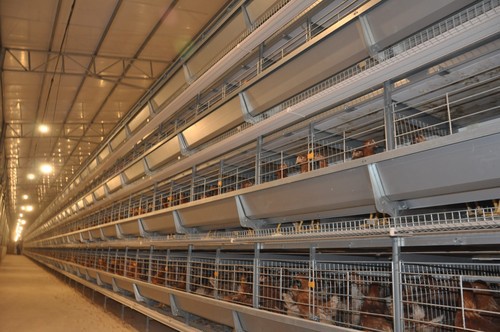

The customer used 3 rows 4 tiers battery cage system.  The layer house size length 121.0m, width is 12.5m and the height is (1.6m+1.6m=3.2m). Lower level of 1.06 meters for concrete structure is the upper level for steel structure. So the chicken manure can fall into the bottom of the ground directly, no chicken manure pollution, because of high temperature the manure can get faster evaporation to facilitate a single breeding cycle ends, the underlying use of manure collector system can help to clean up the chicken manure easily

The 3 row 4 tiers battery cage system each row has 53 sets, a total of 159 sets, each set can feed 200 birds, pavilions breeding of 31,800 only. The customers uses drinking water system, automatic driving feeding system with 11.2 tons of galvanized sheet metal tower, with automatic egg system, further enhance the automation. The battery cage system to use 275 GSM galvanized sheet, automatic stamping press, convenient transportation and installation, the battery cage system net undergoes hot dip galvanized surface treatment technology which applies to the local hot and humid climate environment

Specification list

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

1. Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, 4 birds/cell, LXWXH/set: 2mX2.5mX2.12m, LXWXH/cell: 1960mmX350mmX380mm

2. Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/set: 1.1mX2.3mX2.56m, LXWXH/cell: 1050mmX1000mmX635mm

3. Pullet chicken cage

96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/set: 1.25mX1.5mX2.9m, LXWXH/cell: 1200mmX600mmX625mm

4. Breeder chicken cage

280 female and 40 male/set, 4 tiers/set, 8 cells/set,  35 female and 5 male/cell, LXWXH/set: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5. Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6. Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

Features

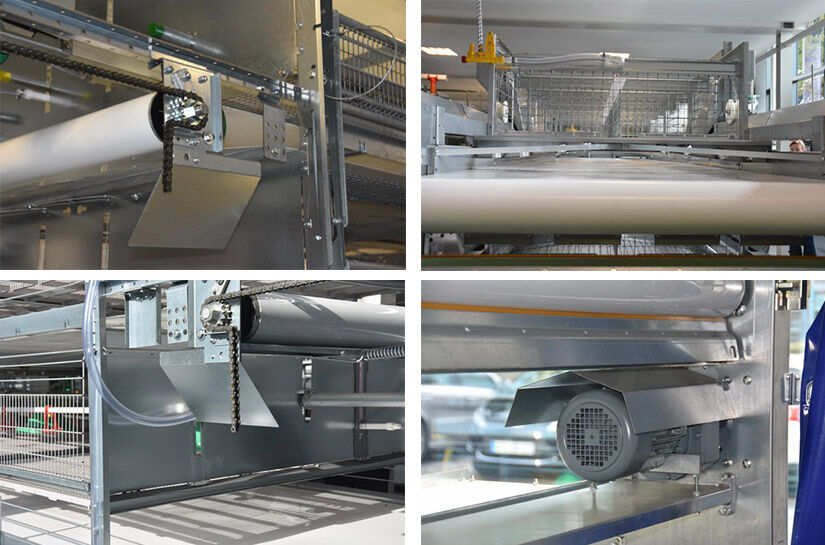

1. There is an egg saver, which ensures the safe rolling-off of eggs to the longitudinal belt. An additional advantage is for the newly laid eggs is, they dry while sliding to the egg saver, for which feather or dust cannot stick to the eggs

2. The manure collected by the manure belt beneath the bottom wires. This can remain up to 6 days

3. The air duct gives a direct air flow just upon the manure belt which helps to reduce the extraction of ammonia as well as dries the manure

4. Watering system in battery cage system is highly effective, water nipple are located outside each cages. These are made of stainless steel. The splash water is collected by drip cup, which keeps the battery cage system safe from corrosion & keep the manure dry

Benefits

1. It helps to boost the health of the chickens

Most poultry farmers do not get healthy results from their chicken rearing because they have ignored the use of battery cage system. They are very good means of accommodating your chickens in healthy conditions that will boost their reproduction, original battery cages are not mere cages with wire mesh floor and essential heating elements for brooding chickens. Quality and superior battery cage system are designed to outweigh an ordinary wire mesh cage. The wire floor is designed to allow manure go through it, taking it away from the chickens surroundings and eventually minimizing the risks of manure-borne diseases. This will keep the chickens healthy and make chicken rearing a task worthwhile for the poultry farmer

2. Increases egg production

A chicken that is healthy will significantly become more productive than chickens reared in environments that do not boost their health. Enriched battery cages increase the potential of egg production in chickens. In fact, recent estimations reveal that sixty percent of eggs used in products such as mayonnaise, sandwiches and cakes are from chickens reared in battery cages. This reveals that chickens have more tendencies to produce eggs in battery cage system compared to other rearing systems. It is more advisable to use battery cage system to aid egg production

3. Qualitative feeding for the chickens

The battery cage system makes feeding for chickens a habitual process which connotes more care for the chickens. This is because the chickens are fed through a long bisected metal or plastic pipe and water is served to them with overhead nipple systems which are set before the chickens. This makes it easy for the poultry farmer to care for the chickens with frequent and adequate food and water. Chickens are well-catered for in battery cages and this makes them healthier and more productive

Advantages

1. It helps in identifying poor producers and prompt culling

4. It helps in the controlling of vices of poultry cannibalism and egg eating

5. It helps in production of clean eggs

6. It helps in the removal of stress factors

7. It had easy control of parasitic disease

8. It prompts steps to control feed wastage

9. The cage method of housing is ideal for the area of moderated climate conditions where the day temperature in summer does not high and temperature does not fall too low

10. Greater number of birds is reared per unit of area

11. It facilitates correct maintenance of records

Our services

1. We offer the best poultry equipment which can meet our customers every requirement

2. We have long time and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solutions. And customer can be rest assured

3. We recommend suitable products based on customer’s availability resources

4. We provide free house design to help customer build well-structured and modern pen

5. We offer training to our customers for those who have no knowledge about poultry business

6. Our poultry equipment’s are made with high and durable materials

Frequently ask questions

A: What is battery cage system in poultry?

Q: Battery cage system is housing systems which are mostly used for chicken rearing and suitable for several methods of animal production

Q: What is the length of battery cage system?

A:  battery cage is a small, barren wire cage that is used to house egg-laying hens it is about 1.82m, and there are 4 hens confined to each cell

Q: What are the features of a battery cage system?

A: Battery cage system is the predominant form of housing for laying hens worldwide. They reduce aggression and cannibalism among hens, but are barren, restrict movement, prevent many natural behaviours and increase rates of osteoporosis

Q: Why is it called a battery cage system?

A: The cages are located in big sheds which can contain thousands of cages next to each other and stacked on top of each other. This is where the name 'battery cage system' comes from stacked up together

Q: Is battery cage system different from chicken cage?

A: No, it is the same thing is either you call it chicken cage or battery cage system
