Basic information

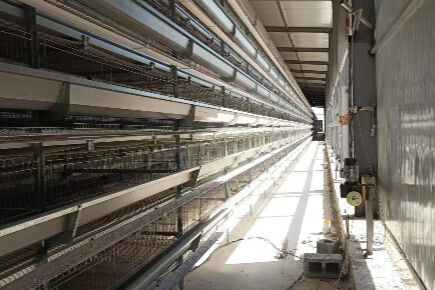

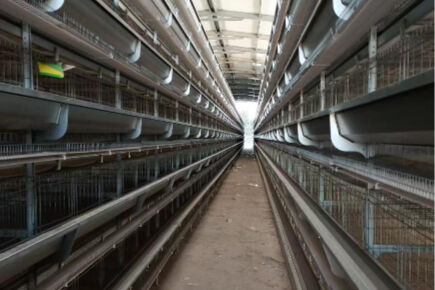

Best carried out a layer project by introducing the layer cage equipment to our customer’s demonstrating how it can be used to house 73,440 birds in the poultry house. The layer house is constructed according to the amount of birds needed in the poultry house and the size as follows, the length, width and height which is 100.0m x 16.04m x 6.04m, it chooses 5 rows 6 tiers of the layer cage equipment to keep 73,440 birds in the layer house

The layer cage equipment works with automatic egg collection system to aid the collection of eggs without stress, the automatic egg collection system all transports egg from the layer cage equipment to egg house and allows the consumers to be the first person to touch the eggs after the over-all collection, then the egg moves along the inclined conveyor portion and arrives at the stacking table, when out of operation, the crosswise conveyor rests at the upper level in order to avoid interference with the personnel activities

The lengthwise belts of the automatic egg collection system may operate at different speed rates and the speed rate is selected by the poultry farm personnel depending on the egg-laying performance of the flock and the cross-wise conveyor utilization level. In order to prevent egg contamination during handling at the egg collection belt, the equipment incorporates a dedicated lengthwise belt cleaning brush with the waste container

Specification list

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

1.Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, 4 birds/cell, LXWXH/set: 2mX2.5mX2.12m, LXWXH/cell: 1960mmX350mmX380mm

2.Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/set: 1.1mX2.3mX2.56m, LXWXH/cell: 1050mmX1000mmX635mm

3.Pullet chicken cage

96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/set: 1.25mX1.5mX2.9m, LXWXH/cell: 1200mmX600mmX625mm

4.Breeder chicken cage

280 female and 40 male/set, 4 tiers/set, 8 cells/set,  35 female and 5 male/cell, LXWXH/set: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5.Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6.Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

Features

1. The feeding trough is made from a premium material that prevents rust and therefore lasts longer. They are remarkably lightweight, resistant to corrosion, and makes feeding very efficient

2. The layer cages are suitable for all kinds of egg-laying chickens including breeders, layers, point-of-lay, and point-of cage birds. They are well designed for the clean and easy collection of eggs, a seamless serving of feed and easy management of the entire cage

3. The electrified machine has scientific, mechanized, automated, and intensive benefits

4. Greatly improves the degree of automation, improves efficiency, and saves labor costs

5. Low noise during operation, which reduces the noise influence on chickens and improves the rate of laying

6. The machine runs smoothly, improving the efficiency of production

7. It reduces the rate of broken eggs and increases the bottom line

8. Operation of the machine is simple which saves the manpower

Components

1. Wire mesh

It is A-type with hot galvanized, angle iron or 0.6m thick steel flat with weaving process which includes cutting, stamping, bending, welding and forming. Advantages of the mesh includes strong, sturdy and smooth, the durability is about 20-25 years with high quality un-annealed steel wire. The weaving process requires welding and then bending and the surface treatment is either hot dip or electro galvanize with smooth surface, good elasticity, high strength, and so on

2. Water drinking line

Its highly precise stainless steel ball with high sensitivity, 360 ̊ active sealed, but has no leakage guarantees for drying of chicken manure. The installation, disassembly, convenient and cleaning is easy no need for glue and bonding

3. Feeding trough

The feeding trough colour depends on your request, either white or green. The feeding trough is equipped with an adjustment plate, which can effectively meet the chick feeding at different growth stages, and has sufficient feeding, eating position, uniformity and health of the chicken, durable, transport does not occupy the place, will not damage. The design of the long groove edge of the feeder though is very good, which reduces the waste of the chicken food

4. Front water supply

In front of poultry house there is a filter for water cleaning, a medicator and water meter

Pressure regulator concentration of chemical feeder is adjustable and the water meter is numerable

Advantages

1. Fully automatic control is realized, which greatly reduces the operators, reduces the labour intensity and improves the labour productivity

2. The bottom of each cage is provided with a dung cleaning belt, which is clean and sanitary to ensure the health of chickens

3. Small footprint, high space utilization, easy to realize intensive and large-scale feeding

4. The chicken manure is cleaned in layers, which is easy to collect and centralized treatment

5. The utilization rate of chicken manure is high and the environmental pollution is minimal

6. The fully closed feeding mode is conducive to preventing the occurrence of infectious diseases and improving the production performance of chickens

Characteristics

1. The steel wire has strong tensile and compressive properties

2. It is convenient to observe the growth of chicks, which is convenient for grouping and selection

3. It has an automatic timing and clearing of feces effectively reduces the disease infection rate and mortality of chicks

4. The trough is equipped with an adjustment plate, which can effectively meet the chick feeding at different growth stages, and has sufficient feeding, eating position, uniformity and health of the chicken

5. Chicken feeding per unit area has increased by 50%-100%

Our services

1. We offer the best equipment which can meet our customers every requirement

2. We have long time and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solutions. And customer can be rest assured

3. We offer excellent services in all our equipment

4. We give customers detailed information on the product they want to buy

5. We recommend suitable products based on customer’s availability resources

6. Installation team come for installation after customers have received the goods

Frequently ask questions

Q: What is a layer cage equipment and what is it uses in a poultry farm?

A: Layer cage equipment is galvanized wire cages for egg laying chicken which is known as layers and they are used in poultry houses for the easy management of hens and the eggs they lay

Q: How can i maintain an automatic egg collection system?

A: Ensure to carry out a proper periodic cleaning and disinfection inside the vehicles used to transport eggs to avoid contamination of these during the trip

Q: Is there a particular location the egg collection system should be situated at?

A: The system does not actually have a fixed location. It is mainly installed according to the needs of customers
