Basic information

Battery cage has become a widespread practice in the last three to four decades

Today, more than 99% of all chicken meat and eggs produced are from chicken battery cages. It is fair to say that battery cages has replaced free range farming or what was the natural way of growing, managing and nurturing livestock. Chickens that raise for eggs or some other reason are all bred and raised through battery cages

A battery cage is a system that is used for chickens which has grown up to 12 weeks or 16 weeks. The battery cages has increased egg production to 98% and it has made handling chicken manure very easy and has also reduced disease transmission among the chickens

Great improvement has been noticed all over the world in poultry farming due to the battery cage which has created comfort and stability for the birds

There are cages for the day old to adult birds that is from brooding to point of lay. Without good knowledge of cages and its specification comparing it with the pen dimension which will determine the capacity of birds a pen can accommodate will not be easy, that is why we are here not just to sell but to give rightful information about the battery cage

Product description

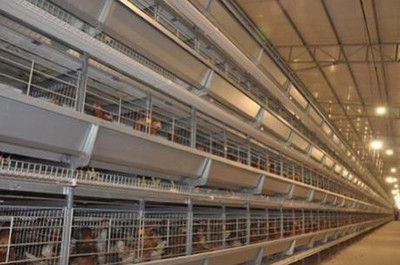

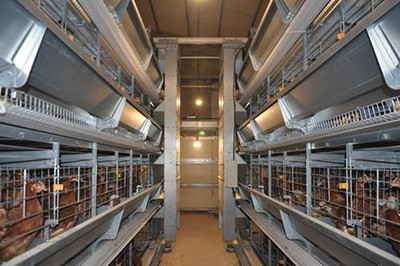

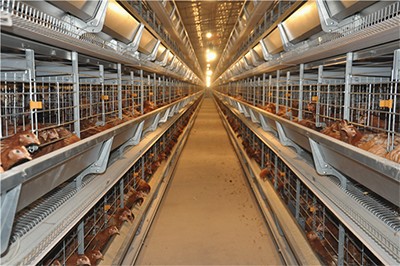

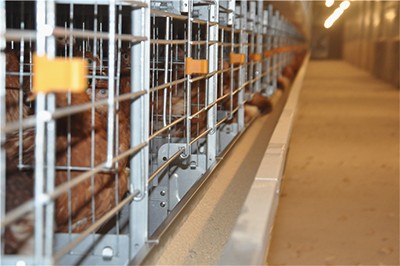

A battery cage is a small metal wire cage of approximately 16” by 18”. The battery cages are commonly arranged back-to-back in three rows of identical small metal wire cages connected together like battery cell. In this housing system, hens have access to automatic management-controlled feed and water

Also, the wire cage floors are made in such a way that the eggs roll down to the egg tray for easy automatic collection. Similarly, hens’ droppings fall through the wire cage floor either onto a conveyor belt or into a pit for disposal. The number of hens kept in chicken battery cages can vary depending on the size of the cage and chicken battery cage is used to reduce cannibalism among the chickens

The battery cage has some components which help to perform specific duties with little or no stress such as an automatic feeding hopper which helps take chicken feed from a central hopper or a bin out to feed the birds continuously all day. The automatic egg collector’s conveyor belt takes the eggs to the header, the flexible fingers carefully place the eggs on a cross conveyor, which then take the eggs to the classifier room and this helps to reduce broken eggs

The products are manufactured using strong raw materials and advanced techniques to offer long-lasting services. The component of a battery cage makes rearing of poultry birds easier and with less stress. The battery cage enables large number of birds to be reared at the same time

Specification list

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

1.Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, 4 birds/cell, LXWXH/set: 2mX2.5mX2.12m, LXWXH/cell: 1960mmX350mmX380mm

2.Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/set: 1.1mX1.9mX2.56m, LXWXH/cell: 1050mmX1000mmX635mm

3.Pullet chicken cage

96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/set: 1.25mX1.5mX2.9m, LXWXH/cell: 1200mmX600mmX625mm

4.Breeder chicken cage

280 female and 40 male/set, 4 tiers/set, 8 cells/set,  35 female and 5 male/cell, LXWXH/set: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5.Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6.Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

Features

1. There is a full automatic drinking and feeding system

2. It has quality cage fittings

3. It is durable and has strong anti-corrosion function

4. It is fully automatic and highly efficient

5. It has a lower density to protect the poultry chickens

6. The rate of disease spread is low

7. It has high durability install

8. It is not toxic and hot galvanized

9. It is easy to clean and install

Advantages

1. There is less feed consumption and wastage of feeds by the birds

2. The is more efficiency in the rate of feed conversion

3. There is low spread of diseases

4. Cost of medication will be less and accurate dosage of drug will be determined

5. Keeping records of the birds will be easier

6. The amount of space required will be reduced

7. Identification of individual bird

8. Egg is in abundance, there is no shortage of eggs

9. The battery cage system helps to create job opportunities

10. With battery cages it is easier to care for pullets

Our services

1. We give customers detailed information on the product they want to buy

2. After purchasing our poultry equipment, we do follow up on our customers about the equipment they purchased

3. We offer the best equipment which meets our customer’s every requirement

4. We have long time and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solution

5. We give customers detailed information on the product they want to buy

6. We give guideline to our first time customer’s on how to go about their poultry equipment

Frequently ask questions

Q: What does battery cage consist of?

A: it consist of an automatic feeding and drinking system

Q: Is the battery cage really effective for layers?

A: Yes, it is really effective for layers because it helps in reducing disease transmission creates a stable environment for the birds which help them produce more eggs

Q: How does the automatic manure cleaning system work with the battery cage?

A: The automatic manure cleaning system works with the battery cage to ensure a clean and healthy environment for the birds
