Layer Slatted Floor System

‹

Layer Slatted Floor System

›

‹

  • Layer Slatted Floor System

›


"Quick Viewing Of Layer Slatted Floor System"


Brief Introduction


slatted floor system (2)

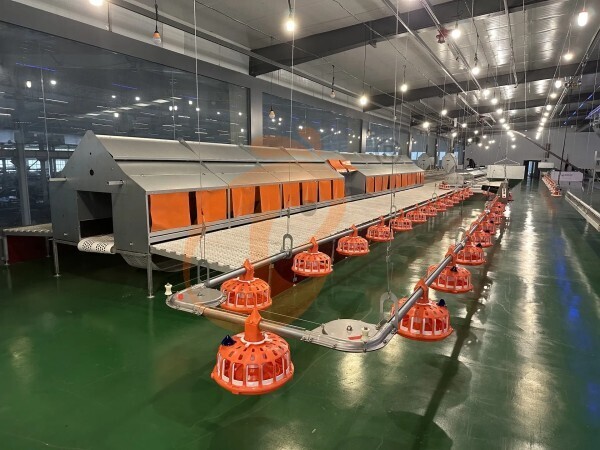

layer slatted floor system (10)


layer slatted floor system (2)

Automatic Egg Belt


  • This modern housing system, the layer slatted floor system, is built for comfort, hygiene, durability, and steady egg production, ensuring healthier flocks and lasting farm productivity.

  • Imagine a bright poultry house where hens stand on raised slatted floors, automatic feeding, drinking, manure removal system, and also egg collection.

  • Eggs roll safely to trays, and droppings fall below, keeping the air clean and the floor dry.

Brief Data

Slide the table left and right to view the full content.

ItemTypical Range
Birds Per House10,000 – 40,000 birds
House Width10 – 14 m
House Length60 – 100 m
House Area600 – 1,200 m²
Stocking Density9 – 12 birds/m²
Floor StructureSlatted floor + egg nests + activity area
Application NotesBalances production efficiency and animal welfare; widely used in modern cage-free layer projects

Why Choosing Taiyu Group's layer slatted floor system?

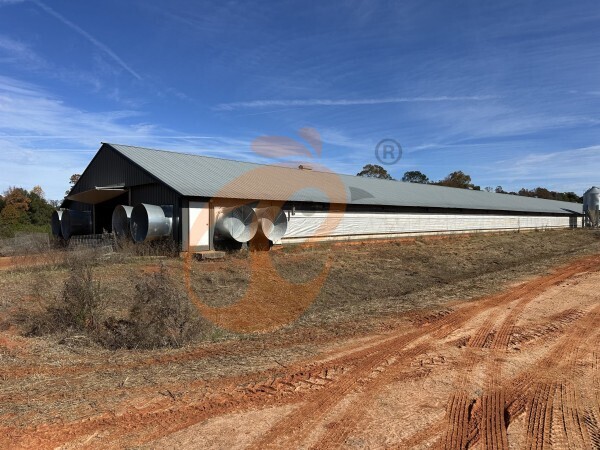

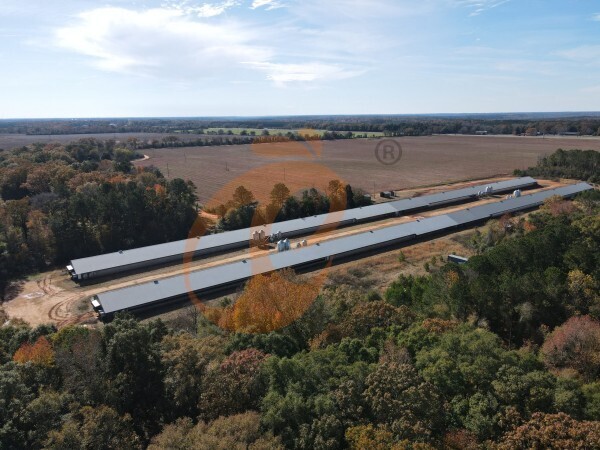

  • Taiyu Group's case in USA

layer slatted floor system (21)

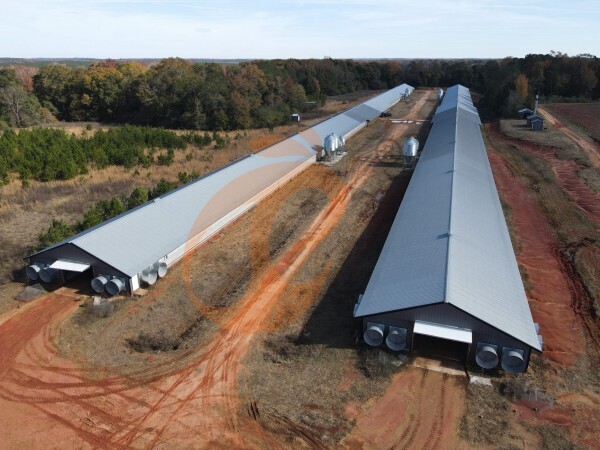

layer slatted floor system (9)


layer slatted floor system (20)

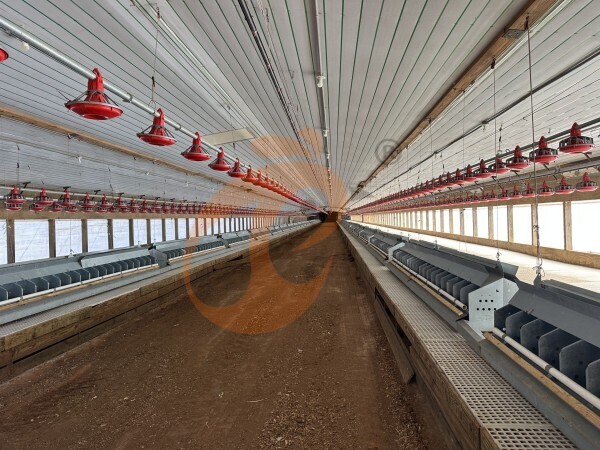

layer slatted floor system (8)

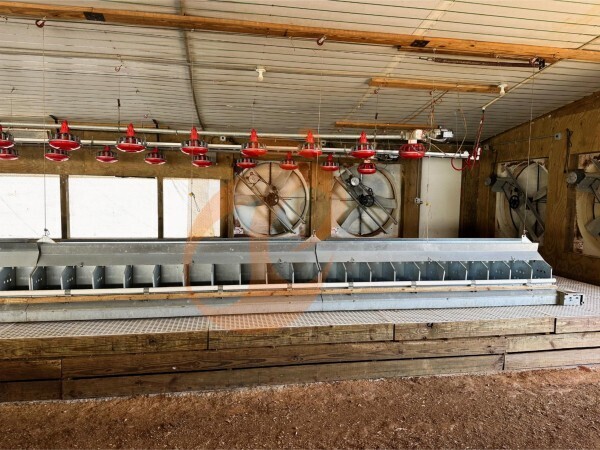

layer slatted floor system (18)

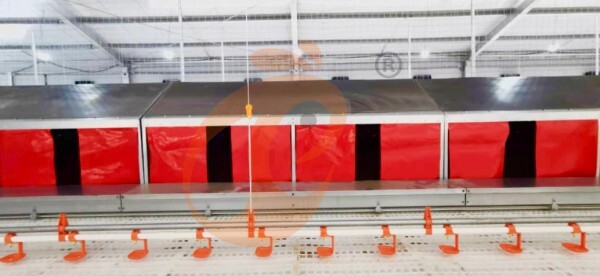

  • Taiyu Group's case in China

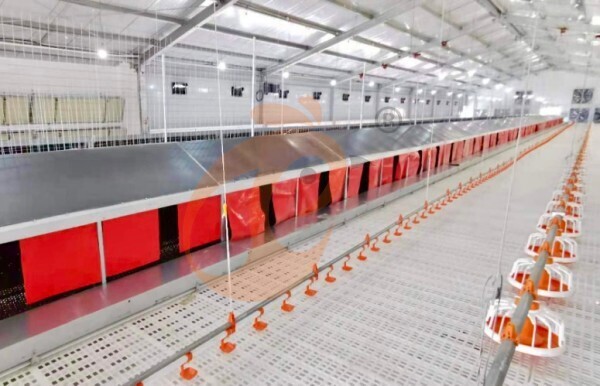

layer slatted floor system (3)


layer slatted floor system (4)

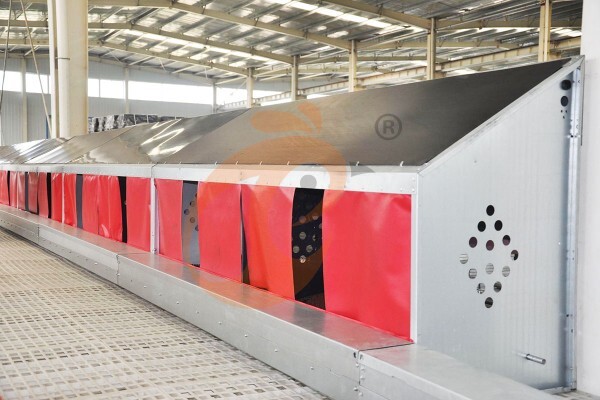

layer slatted floor system (5)


  1. Taiyu Group has executed turnkey projects worldwide (in Africa, Asia, Middle East, etc.) for both layer and broiler farms.

  2. It brings European‑standard design influences and localized support to maximize performance and return on investment.

  3. Customizes designs based on the farm's size, region, climate, and production goals.

How To Choosing Layer Rearing Equipment?

Here is a deep comparison for you to have a clearer understanding.

Layer slatted floor system VS layer cage system VS deep litter system.

Slide the table left and right to view the full content.

Comparison ItemLayer Cage SystemSlatted Floor SystemDeep Litter System
Suitable Scale≥20,000 birds/house≥10,000 birds/house≤10,000 birds/house
Initial Investment (CNY/bird)120–18080–12040–70
Stocking Density (birds/m²)18–229–126–8
Peak Laying Rate (%)92–9588–9285–88
Feed-To-Egg Ratio (kg feed/kg egg)2.0–2.22.2–2.42.4–2.6
Egg Breakage Rate (%)1–22–34–6
Floor Egg Ratio (%)~02–55–10
Ammonia Level (ppm)10–1515–2525–40
Survival Rate (%)95–9794–9692–94
Labor Requirement (persons/10,000 birds)0.4–0.60.6–0.81.0–1.5
Manure Handling Efficiency

Very high-Centralized manure removal

High-Manure drops through slatsMedium-Manure mixed with litter
Animal Welfare LevelLowMediumHigh

To obtain the quotation, please Whatsapp 24 hours online/Mobile: +8618830120193.

Related Broiler Rearing Equipment

battery cage price (3)

Egg Laying Chicken Cage

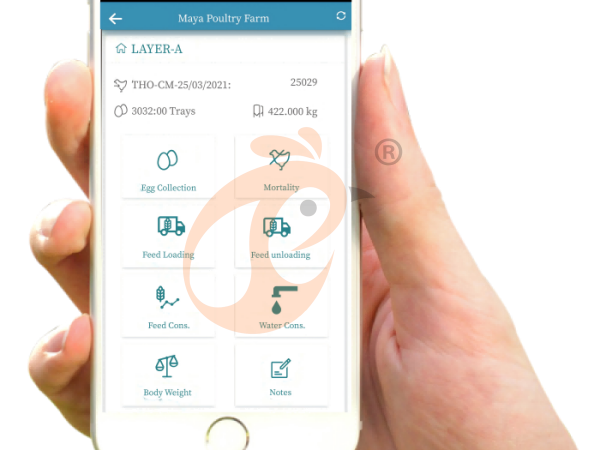

IOT poultry farm 5 (1)

IoT Smart Poultry Farm


All pictures (or videos) of this pages are the application of our layer slatted floor system in customers' poultry farm. Our technicians have rich experience in localizing farms.

This guide explains how the modern slatted floor system for layers works, its construction, technical details, accessories with their working principles.


"European Standard Slatted Floor System Design"


1. Quick Data Overview

Parameter

Value / Range

Note

System Type

Modern slatted floor

For layer hens in egg production

Suitable Bird Capacity

2,000–20,000 hens

Depends on house size & unit count

Unit Dimension (standard)

2.4m × 1.2m per platform

Customizable

Floor Height Above Ground

60–70 cm

For airflow & manure clearance

Slat Gap Size

2.5–3 cm

Comfortable for hens, droppings fall through

Material (Floor Slats)

High-impact polypropylene

Anti-corrosion, 10+ years life

Support Frame

Hot-dip galvanized steel

≥25 years service

Stocking Density

6–8 birds/m²

Meets welfare standards

2. Structure Breakdown And Layout

broiler slatted floor system (15)


broiler slatted floor system (14)

Each slatted floor unit in the layer slatted floor system is built to provide durability and easy cleaning.

The structure allows air circulation under the floor and keeps droppings separated from the hens.

Unit Type

Size (L × W × H) mm

Birds Per Unit

Floor Material

Support Material

Bird Space (cm²)

S1

2,400 × 1,200 × 650

30–36

Polypropylene slats

Galvanized steel frame

450–470

S2

3,000 × 1,500 × 700

50–60

Polypropylene slats

Galvanized steel frame

430–450

S3

4,000 × 2,000 × 700

80–100

Polypropylene slats

Galvanized steel frame

428–440

For beginners: A 60m × 10m house can hold around 40–45 slatted units of the layer slatted floor system, comfortably housing 4,000–5,000 hens.


"Key Advantages Of Our Automated Layer Slatted Floor System"


3. System Accessories, Materials And Working Principles

(1) Automatic Feeding System

broiler slatted floor system (8)


broiler slatted floor system (9)


  • Fittings: Feed silo (3-10 tons), galvanized feed troughs, chain feeder or push cart system.

  • Working Principle
    Feed silo ensures steady feed supply into troughs.
    Feed is evenly moved through troughs using a chain or auger.
    Each hen has access to consistent feed portions, reducing waste and competition.

(2) Nipple Drinking Line

broiler slatted floor system (12)


  • Fittings: Water storage tanks (500-1,000 liters), stainless steel nipple drinkers, PVC water pipe, pressure regulator.

  • Working Principle:
    Water storage tank works with nipple system to stabilize flow.
    Birds peck nipples to release water directly into their beaks.
    The regulator controls steady pressure, preventing leaks and ensuring clean supply.

(3) Manure Collection System

broiler slatted floor system (4)


  • Fittings: Polypropylene manure belt or scraper, gearbox motor.

  • Working Principle
    A key part of the layer slatted floor system, droppings fall through floor gaps to the belt below.
    Waste is transferred outside the house, keeping floors dry and air clean.

(4) Lighting System

broiler slatted floor system (1)


  • Fittings: LED strip lights with programmable timer, backup generator

  • Working Principle
    Adjustable artificial light simulates daylight hours, maintaining a 16-hour light cycle to stabilize egg production and reduce stress.
    Backup generator protects against power outages in remote areas.

(5) Ventilation Setup

broiler slatted floor system (4)


  • Fittings: Exhaust fans (6,000–12,000 CFM) , air inlets, evaporative cooling pads (optional).

  • Working Principle
    One fan every 15–20m of aisle for proper airflow.
    Fans draw warm air out, inlets bring fresh air in.
    Cooling pads can lower house temperature in hot climates, protecting birds from heat stress.

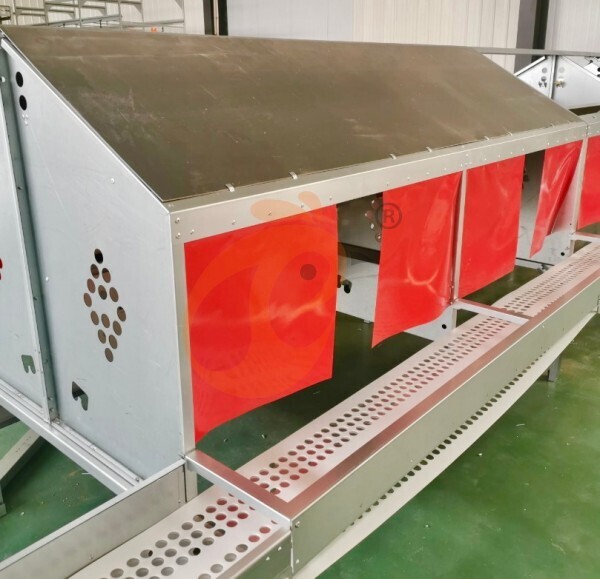

(5) Egg Nest

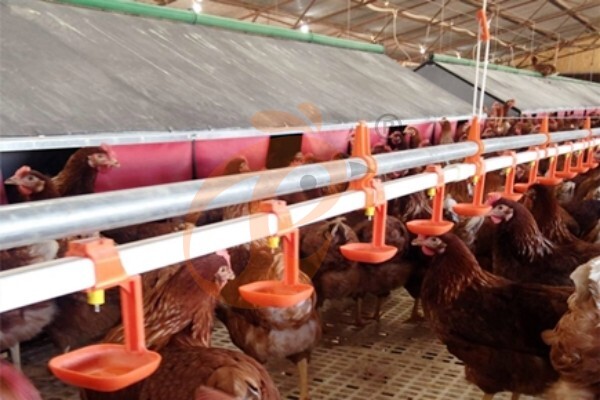

layer slatted floor system (13)

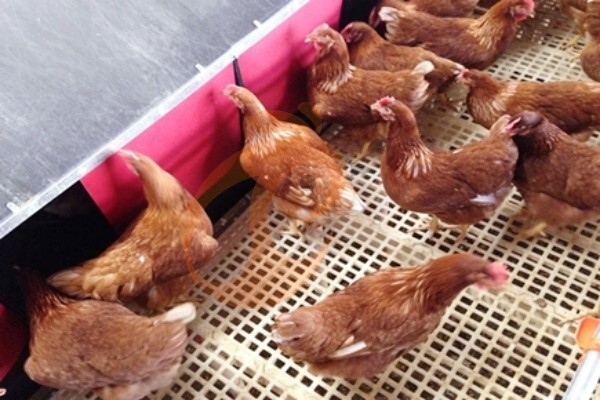

layer slatted floor system (11)

layer slatted floor system (6)

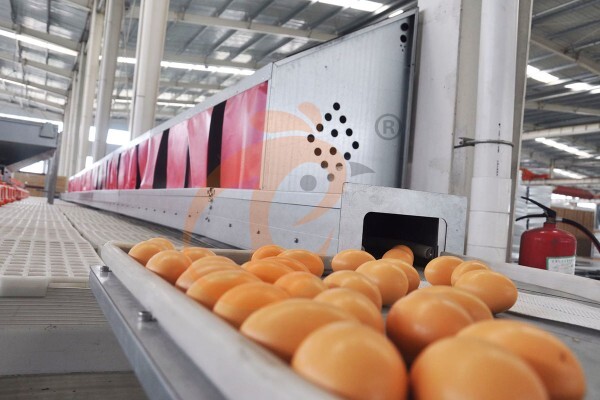

Egg Collecting End Device


  • Fittings: Integrated egg nests mounted on slatted floor sections, plastic or galvanized nest boxes, soft nest mats (plastic or artificial turf), sloped nest floor (7–9°), egg collection tray or egg belt, nest curtains, anti-perching devices.

  • Nest ratio: 1 nest / 4–5 layers

  • Nest width: 30–35 cm per compartment

  • Nest height from slatted floor: 45–60 cm

  • Working Principle:

  • The egg nest is installed above the slatted floor (manure-dropping boards) so that manure falls through the slats, keeping the nest area clean and dry.

  • Hens are attracted to the nest by the enclosed, dim environment and soft mats, which helps reduce floor eggs.

  • The slightly sloped nest floor (7–9°) allows eggs to roll gently into the collection tray or onto the egg belt, minimizing egg breakage and contamination.

4. Capacity And Inputs

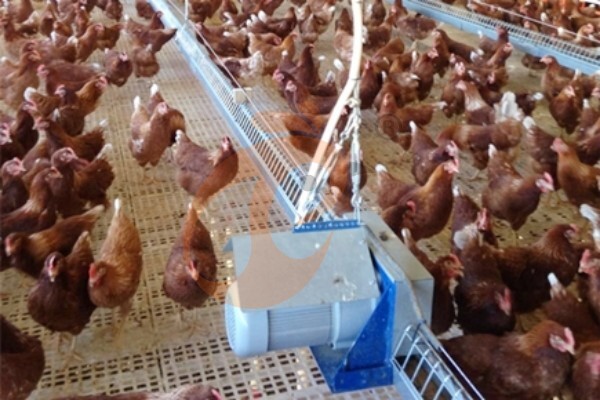

layer slatted floor system (14)

Parameter

Value Per 100 Birds

Value For 5,000 Birds

Daily Feed Requirement

11–12 kg

550–600 kg

Daily Water Requirement

20–22 liters

1,000–1,100 liters

Manure Produced Daily

8–10 kg

400–500 kg

Egg Production Rate

85–92 percent

4,250–4,600 eggs/day

The clear data helps farmers plan resources efficiently for the layer slatted floor system.


"Why Choose Layer Slatted Floor System"


5. Hygiene And Airflow Benefits

The raised layer slatted floor system allows natural airflow below the system, reducing ammonia and moisture levels.

Eggs remain cleaner because droppings never touch the laying surface.

Performance Factor

Numerical Value

Air Gap Below Floor

60–70 cm

Ammonia Reduction Efficiency

65–70 percent

Egg Breakage Reduction

20–25 percent

Average House Humidity Level

55–65 percent

6. Farm Efficiency And Economic Benefits

Factor

With Slatted Floor System

Without Slatted Floor System

Gain

Egg Cleanliness

90–95% clean

75–80% clean

+15%

Feed Conversion

2.2–2.3 kg per 12 eggs

2.5–2.7 kg

10%

Labor Requirement

2 workers (5,000 hens)

4–5 workers

-50%

Egg Breakage

<1.5%

5–7%

70%

7. Integrating Farm Knowledge

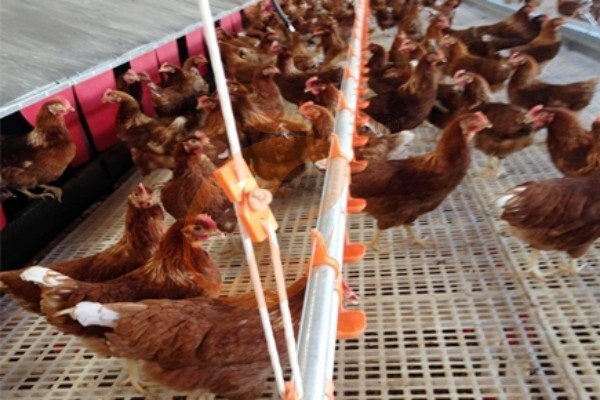

layer slatted floor system (15)


IOT poultry farm 5 (2)


IOT poultry farm 5 (1)


The layer slatted floor system works best when paired with smart farm management practices:

(1) Lighting Program: Start at 14 hours/day for pullets at 18 weeks, increase to 16–17 hours/day for stable laying.

(2) Feeding: Offer ~110 grams feed per hen daily, divided into 2–3 meals.

(3) Manure Handling: Remove waste at least weekly to reduce ammonia and fly breeding.

(4) Biosecurity: Separate entry points for feed delivery, egg collection, and manure disposal to minimize disease spread.

8. Who Should Choose The Modern Slatted Floor System?

(1) Small to large egg farms (500– over 20,000 hens).

(2) Farmers upgrading from deep litter to a cleaner layer slatted floor System.

(3) Projects in warm, humid regions needing better airflow.

(4) Businesses seeking long-term investment with reduced labor.

9. Contact Us: Let's Build Your Intelligent Project

(1) Our headquarte is in HongKong. We own office and factories branches in China, Ethiopia, Tanzania and Nigeria.

chicken cage design (2)

China


chicken cage design (1)

Nigeria


chicken cage design (2)

Tanzania


chicken cage design (1)

Ethiopia


(2) For fast response, feel free to contact us directly via WhatsApp at +8618830120193, please provide the following information:

  • Your full name

  • Phone number (including WhatsApp ID)

  • Email address

  • Farm location (country/region)

  • Total land area of your farm

  • Type of poultry: layer, broiler, or pullet

  • Expected bird capacity

  • Equipment you're interested in (poultry farm turnkey project, chicken cages, name of poultry farm equipment.)
