Quick Viewing Of H Type Automatic Broiler Battery Cage System

Current Status Of Commercial Broiler Farming Equipment Worldwide

In today's global commercial poultry industry, broiler farming has become increasingly automated and large-scale.

For commercial broiler farms with more than 10,000 birds, based on over 20 years of multi-country experience, our company has identified three mainstream H-type broiler cage designs that are widely accepted and preferred by local markets worldwide.

Three Main Types

1. Pull-out slat harvesting system

2. Chain-type automatic harvesting system

3. Without automatic harvesting system

There are equipped with automatic systems of feeding, drinking, manure cleaning, cage system and smart poultry system (optional accessories).

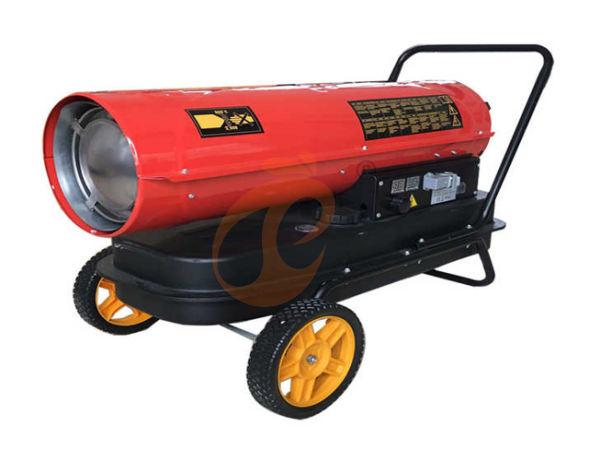

Some customers choose environmental control system such as automatic house lighting, heating device and ventilation systems. These are used in temperate and frigid climates, while in tropical climates they are applied as appropriate.

Application Guide Of 3 Types Of H Type Commercial Broiler Cage

To help you better understand these poultry equipment, we will present some short videos and real farm data.

Video 1: Taiyu (HK)’s Turnkey Case Of Pull-Out Slat Harvesting System

The video part of pull-out slat harvesting system are from 00:30s to 01:10s.

1. Key Advantages

• Pull out the detachable slat tray, chickens fall onto the manure belt, to end lift device for collection

• Eliminates manual catching from each cage

• Reduces labor demand by 50–60%

• Achieves harvesting efficiency of 5,000–8,000 birds/hour

• Lowers injury rate to ≤2–3%

• Improves overall harvesting speed by 2–3 times

• Ideal for commercial poultry farms seeking higher efficiency

2. Price Range

The middle one in 3 types

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Video 2: Taiyu (HK)’s Turnkey Case Of Chain-Type Automatic Harvesting System

The video part of chain type harvesting system are from 00:35s to 01:59s.

1. Key Advantages

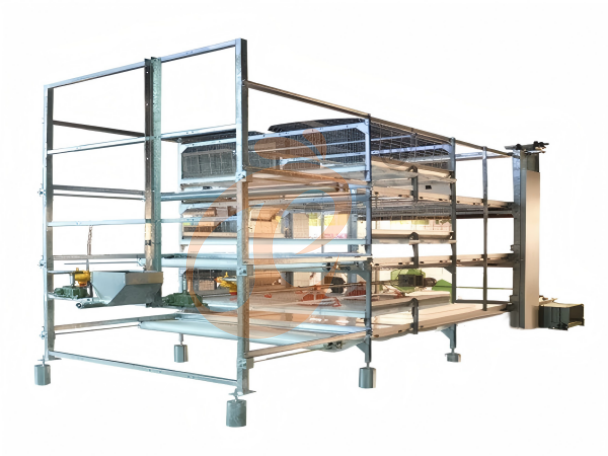

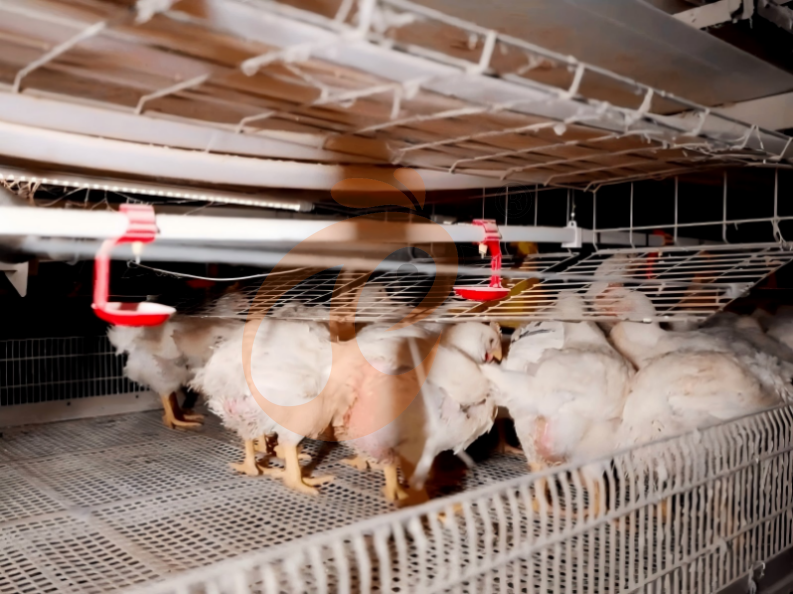

• During harvesting, the side mesh rises, Chickens are transported to end lift device for collection

• Reduces labor demand by 50–70%

• Improves harvesting efficiency by 2–3 times

• Achieves a collection speed of 6,000–10,000 birds/hour

• Minimizes injury rate to ≤1–2%

• Suitable for large-scale commercial poultry farms (30,000+ birds)

2. Price Range

The highest one in 3 types

Video 3: Taiyu (HK)’s Turnkey Case Of Broiler Cages Without Automatic Harvesting System

1. Smart poultry system are from 00:03s to 00:06s.

2. Intelligent automatic timed and quantified feeding system are from 00:17s to 00:35s.

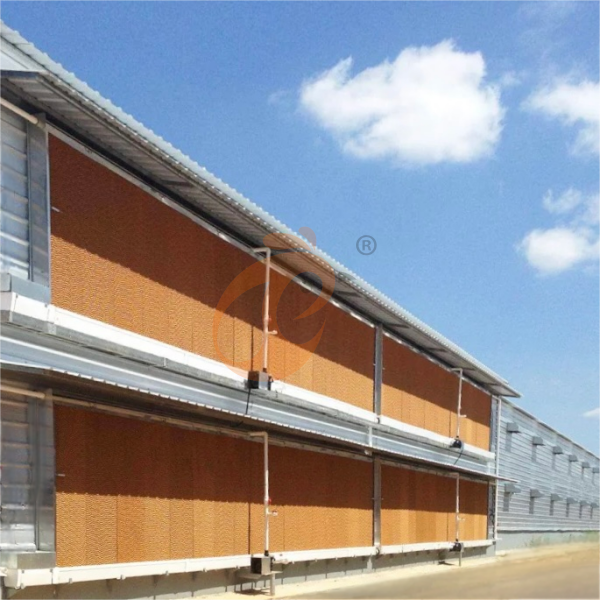

3. Ventilation systems are from 00:52s to 01:03s.


1. Key Advantages

• Integrated automatic feeding, drinking, and manure cleaning systems, manual chicken collection

• Q235 steel with hot-dip galvanization or aluminum-zinc coating

• Service life of 15–20 years

• Fully automatic system reduces labor

2. Price Range

The lowest one in 3 types

Broiler Capacity In A House

These three types of equipment have basically the same broiler stocking capacity under the same chicken house dimensions.

1. 80 x 11 x 4.1-12 (L x W x H): 23,000 - 31,000 birds

2. 100 x 11 x 4.1-12 (L x W x H): 29,000- 40,000 birds

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Why Choosing Taiyu (HK) Group

Here is a 15 mins video showing Taiyu (HK) headquarters, poultry farm equipment, production department, QC, logistics department, customer cases...

The Advantage Of Taiyu (HK) Broiler Cage

1. Quality and design of Taiyu (HK) broiler cage: European standards

2. Lifespan of Taiyu (HK)'s pullet cage: 25+ years

3. Delivery from local factory: Hong Kong headquarters, branches of China, Nigeria, Tanzania, Ethiopia and Kenya ( depends on you location, we delivery from the nearest factory and warehouse)

Our design and quality of automatic harvesting H frame broiler battery cage system  and poultry farm equipment based on European and USA standard.

24 hours Reception WhatsApp NO. : +8618830120193.

All pictures (or videos) of this pages are the application of our automatic harvesting H frame broiler battery cage system in customers' poultry farm.

Our technicians have rich experience in localizing poultry farms.

Two Rows

"European Standard Automatic Harvest H Frame Broiler Battery Cage System"

1. Concise Specifications Of Automatic Harvest H Frame Broiler Battery Cage System

For your reference only, the following data is estimated, The exact data is based on the actual needs of the project and customer requirements, or our exact quotation.

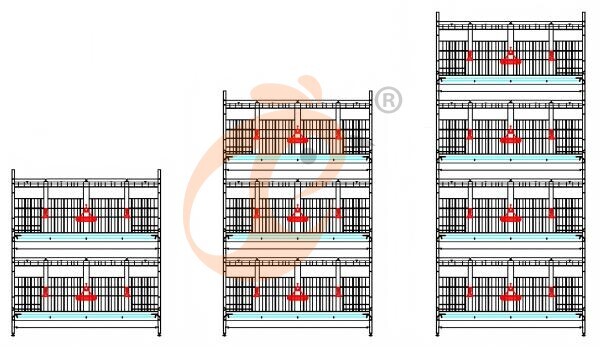

3 Tiers

2 Tiers, 3 Tiers And 4 Tiers

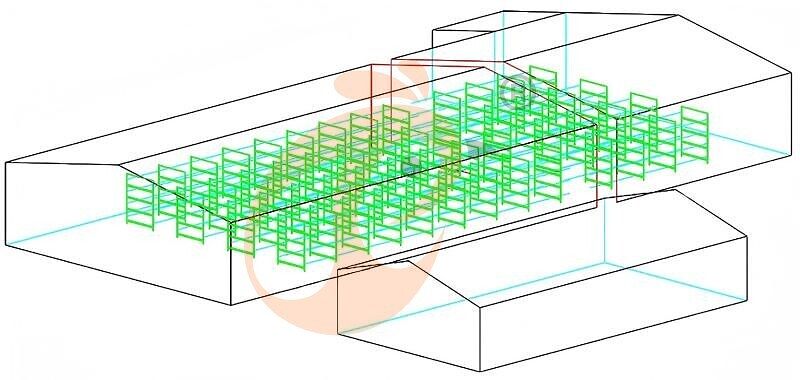

Layout Of Battery Cage In Poultry House

(1) Technical Specifications

Data is for reference only. Swipe horizontally to view full table.

(2) Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

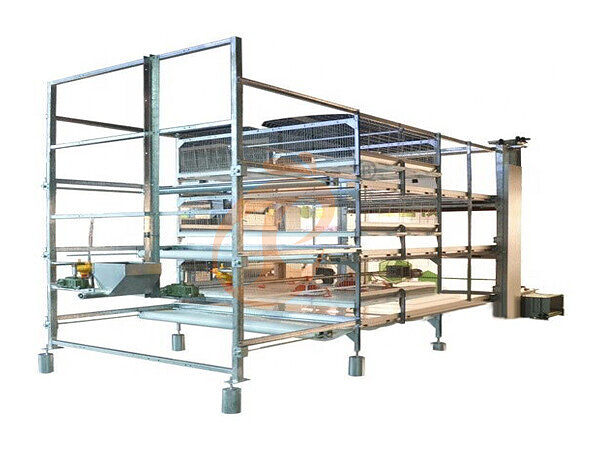

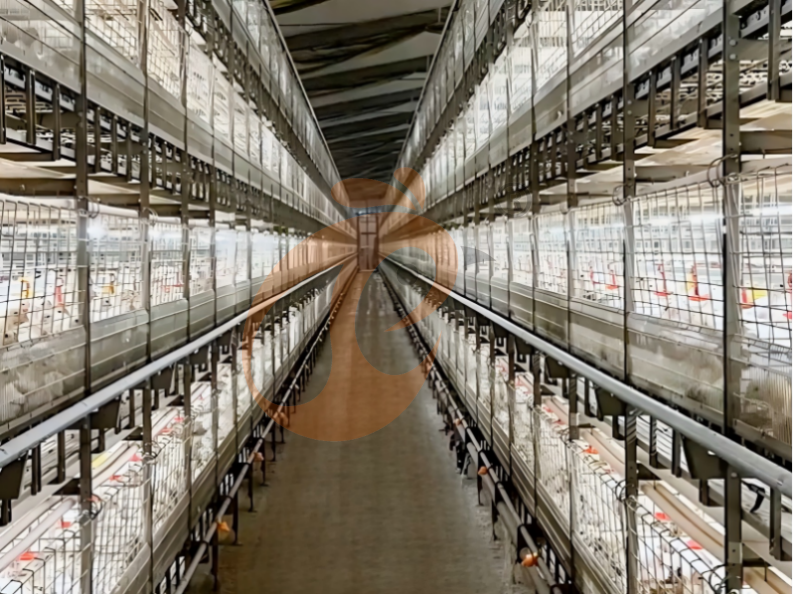

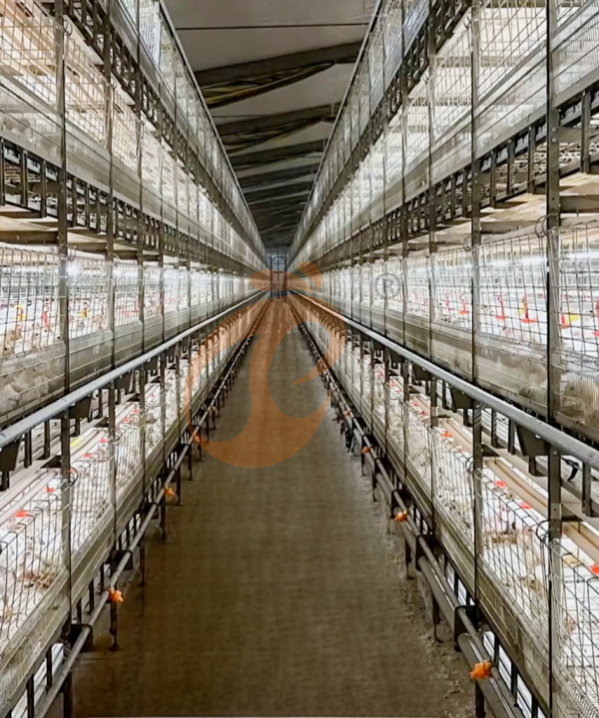

2. Core Equipment: H-Type Multi-Tier Automated Farming System

(1) Cage Structure And Density Configuration

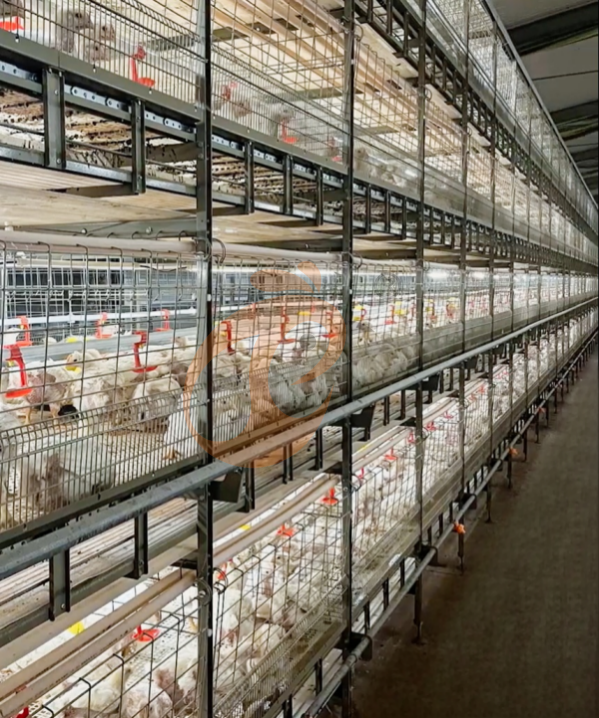

The automatic harvesting H frame broiler battery cage system features a high-density, modular design based on a full steel frame.

Tailored for large-scale operations requiring continuous harvests and precise batch management.

Its core strengths lie in vertical space utilization, intelligent system coordination, and integrated environmental control.

4 Tiers

"The Key Advantages Of Adopting Automatic Harvest H Frame Broiler Battery Cage System"

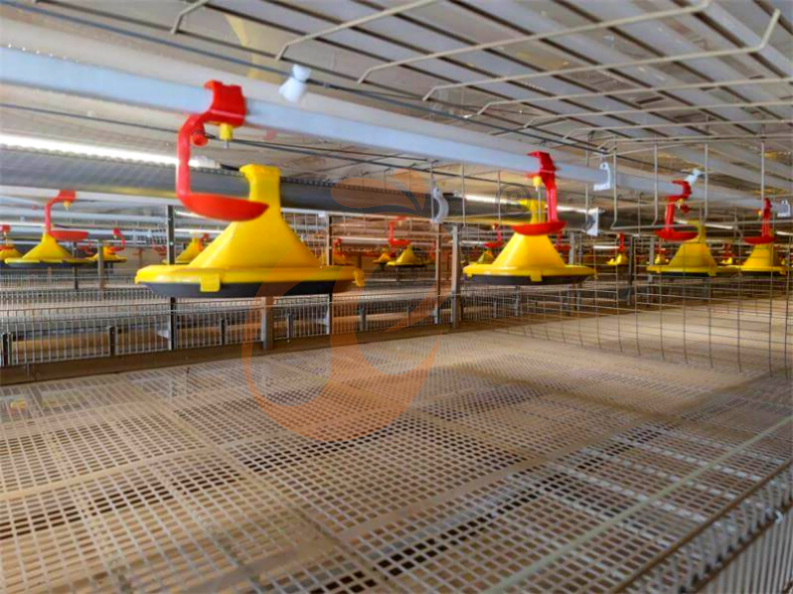

3. Automated Feeding And Drinking: Multi-Segment Precision Distribution

(1) Automated Feeding System

This system utilizes a dual-channel chain-type feed cart that controls feed volume and intervals autonomously.

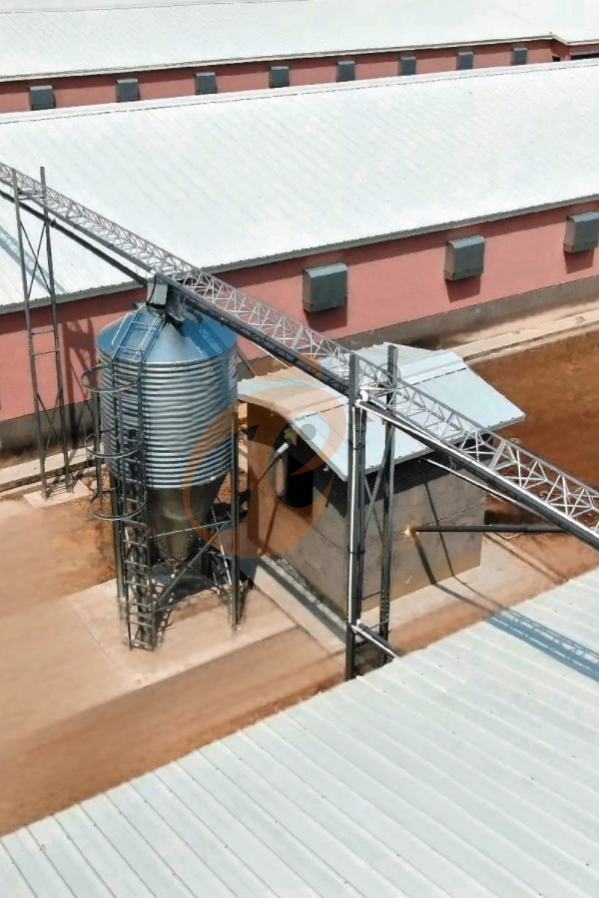

Standard configurations include 3–20-ton silos (or custom sizes) connected to a main auger line, enabling 24/7 uninterrupted feeding.

• Chain-disc feed transmission at 30–40 m/min speed, delivering feed along 60 m lines in ~2 minutes, with ±3% accuracy

• Manual override retained for emergency operation during power failure

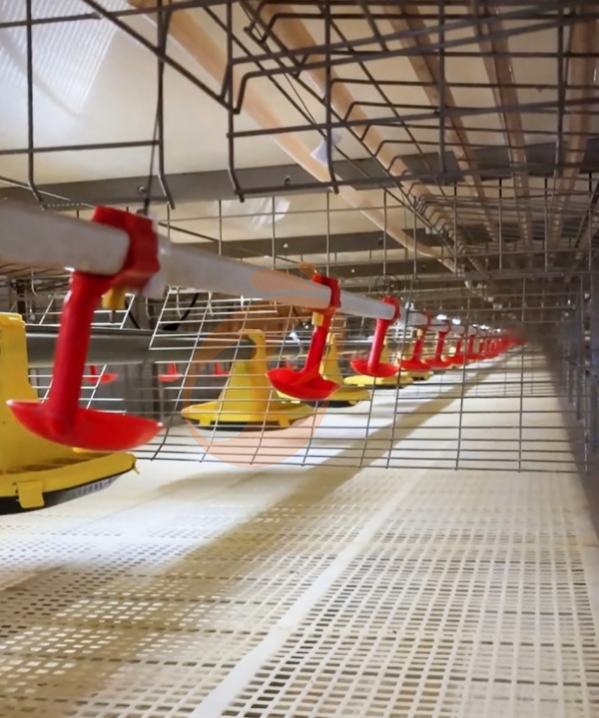

(2) Automated Drinking System

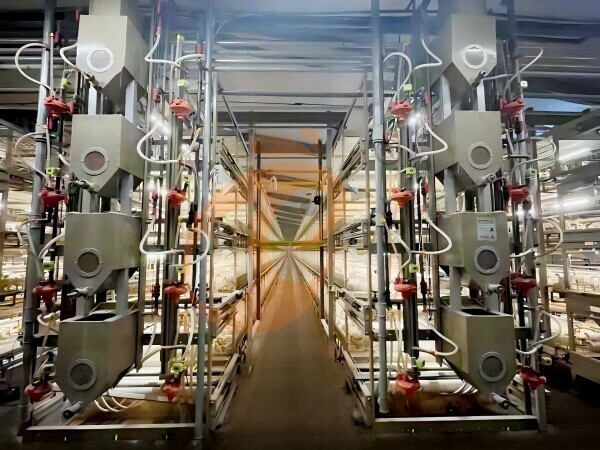

Ending Water And Feed Device

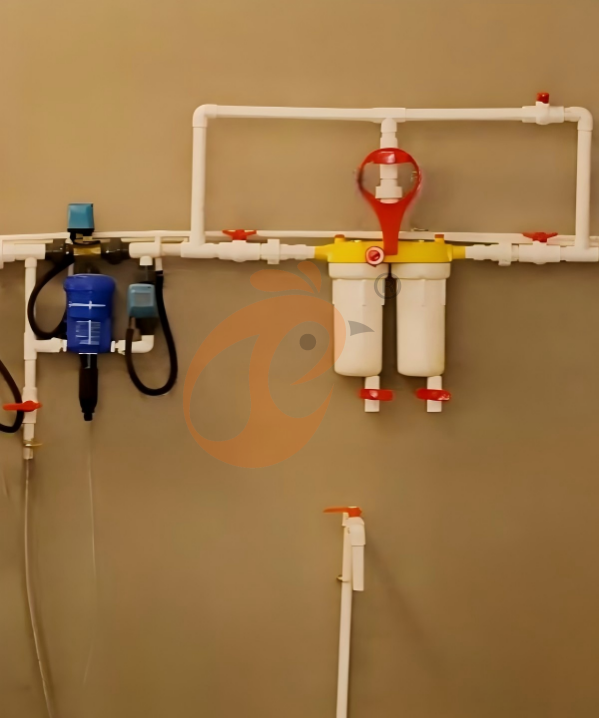

The system features imported nipple drinkers, reinforced PVC pipelines, and external stainless-steel pressure regulators.

Each line is independently controllable for easier flushing and maintenance, ensuring hygienic water delivery.

• Dual-sided supply per cage tier

• Pressure range is 0.2–0.3 MPA

• Integrated filtration and back flushing system with scheduled auto-cleaning

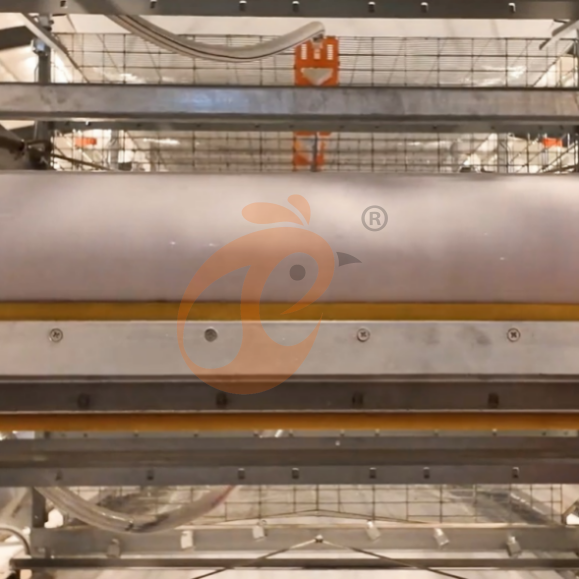

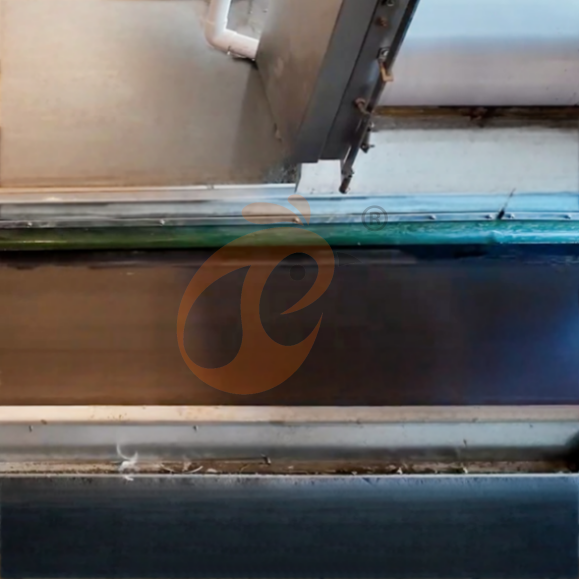

4. Automated Manure Removal System: Stable, Quiet, And Durable

Automated Manure Removal System

To Outside Of Broiler House

This system is controlled via PLC with scheduled runs. In typical settings, it activates every 2 hours to complete one full-length pass through the barn.

• Durable flexible belt made from imported PP/PVC, its width is designed according to the chicken cage, 1.2 mm thick, resistant to wear and tearing.
  With anti-stick coating on both surfaces, they can run continuously for 5–7 years.

• The belts are equipped with auto-centering sensors that maintain belt alignment during high-speed operation.
  At the end of each run, a scraper mechanism removes any remaining manure

• PLC triggers system; warning lights and motors activate

• Manure falls onto belt, transported outside via conveyor or pit

• System shuts down automatically after cycle ends

"Why Choose Automatic Harvest H Frame Broiler Battery Cage System"

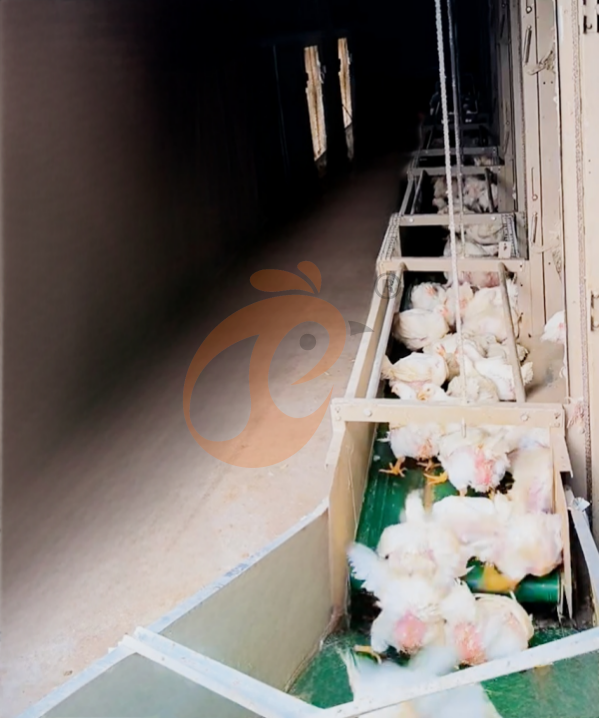

5. Smart Harvesting: Fully Automated Broiler Collection System

As farm density increases, manual harvesting has become a bottleneck.

The integrated automatic harvesting H frame broiler battery cage system enables complete batch collection without human handling.

It includs: in-cage conveyor belts (per tier), End-of-tier collection platforms,Vertical lift units,External horizontal conveyors.

This system is controlled via PLC with scheduled runs. In typical settings, it activates every 2 hours to complete one full-length pass through the barn.

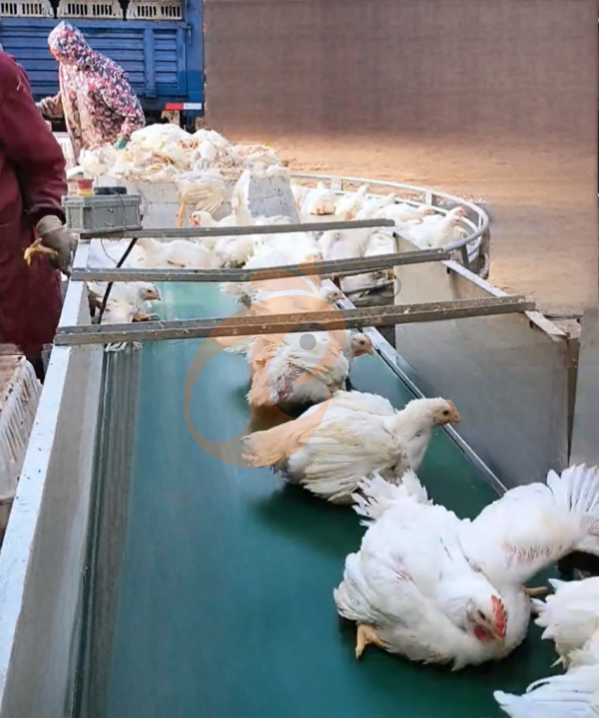

(1) Operation Process

• Birds are fasted 1 day before harvest

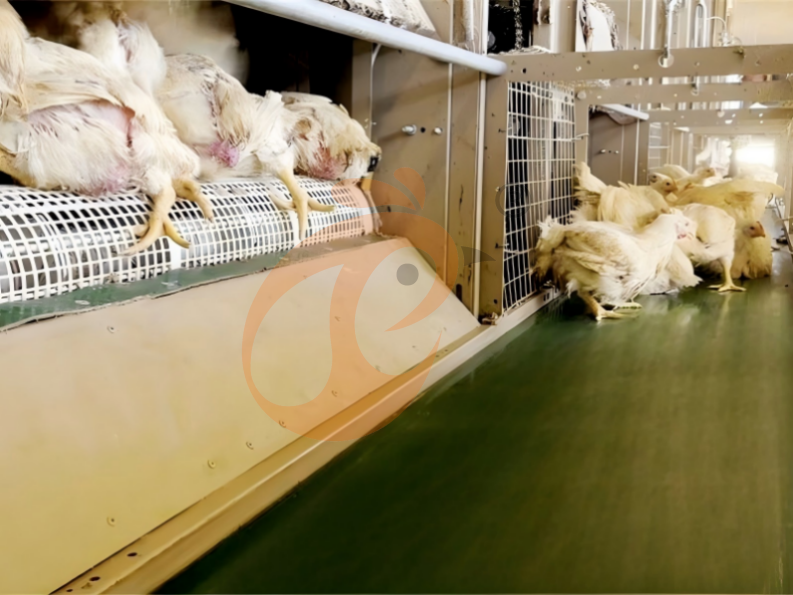

• Belts transport birds to tier-end zones

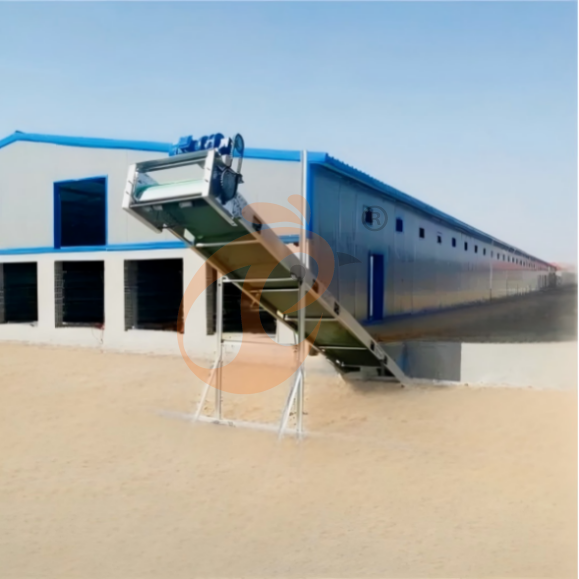

• Vertical lifts elevate birds to horizontal conveyors

• Birds are moved directly to loading docks or holding areas

• This no-touch system significantly improves hygiene and reduces stress

(2) Performance

• Batch handling capacity: 8,000–10,000 birds/hour

• Pressure reduction increases survival rate by 1–1.5% by 1–1.5%

(3) Key Specs Of The Harvesting System

This module accounts for about 20% of total system cost but offers significant ROI through improved turnaround time and reduced labor.

6. Management Integration: Full-Cycle Support From Brooding To Harvest

While the automatic harvesting H frame broiler battery cage system is highly automated, proper management remains vital for success.

Adjest The Height By Boriler Age

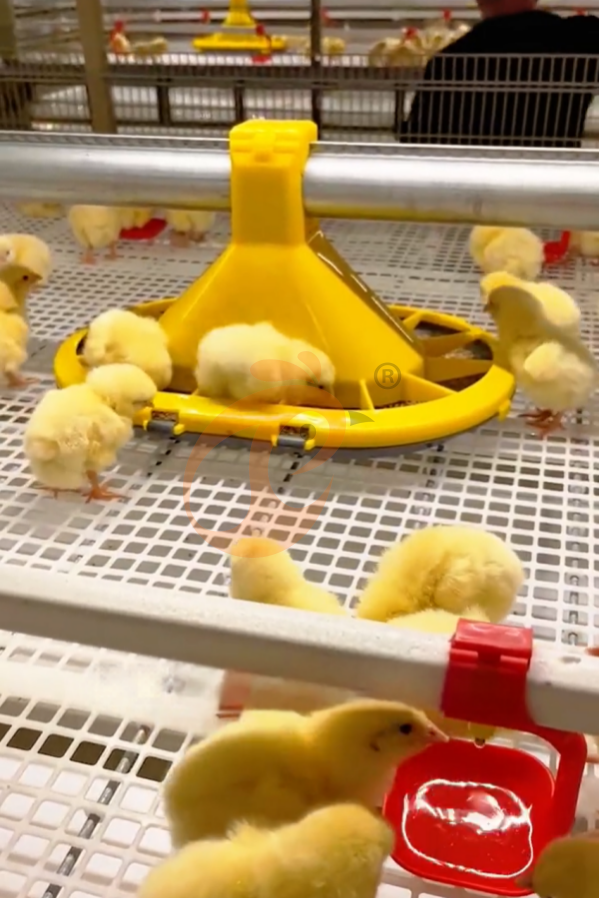

(1) Brooding: Temperature & Lighting Synchronization

Localized temperature zones can be maintained at 33–35°C, paired with smart LED systems that simulate natural daylight to ease chicks into the environment.

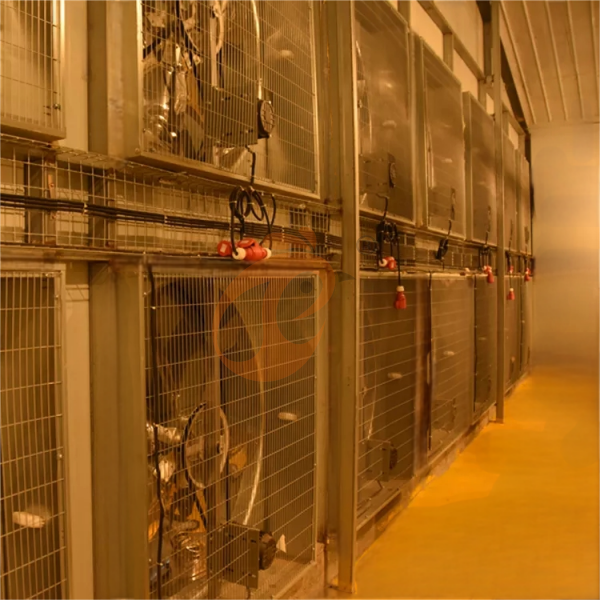

(2) Growth Phase: Ventilation & Humidity Control

Negative-pressure fans and side-window controls maintain humidity at 60–70%(0-14 days). Sensors detect ammonia and moisture, automatically adjusting airflow and window frequency.

(3) Health & Bio-Security: Immunization And Monitoring

Each unit includes observation lighting and transparent front doors for daily checks and manual vaccination. Systems can connect to a remote monitoring platform for live health tracking.

7. Recommendation Farm Management Of Poultry Farm, House And Cage System (selective assembly)

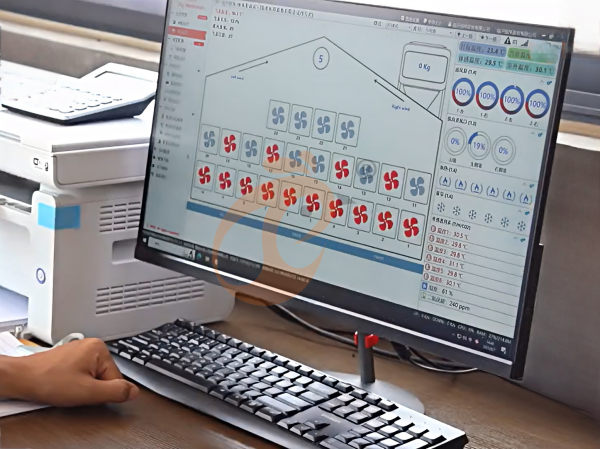

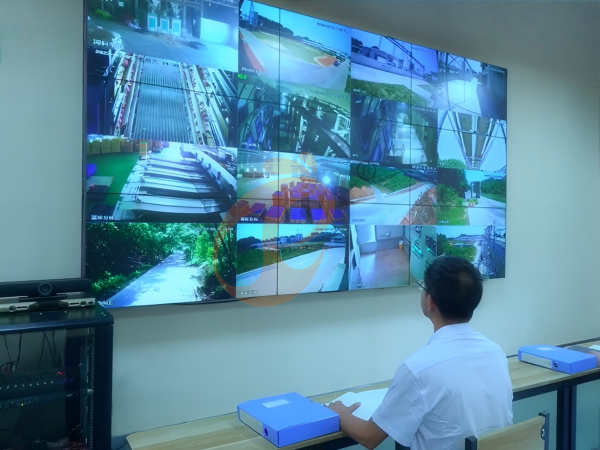

(1) From CCTV to giving order to every house, from date collection to AI data analysis report, abnormal condition detection and alarm system.

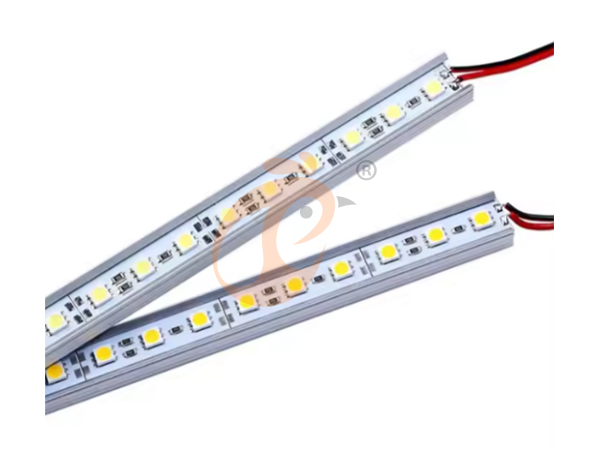

(2) Lighting is provided for chickens of all ages, which enhances their immunity and increases their productivity.

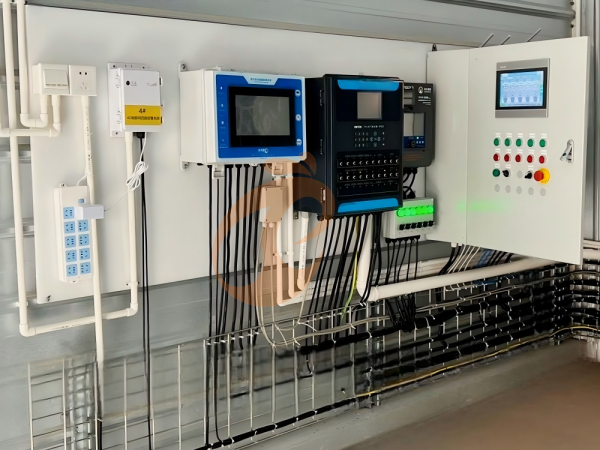

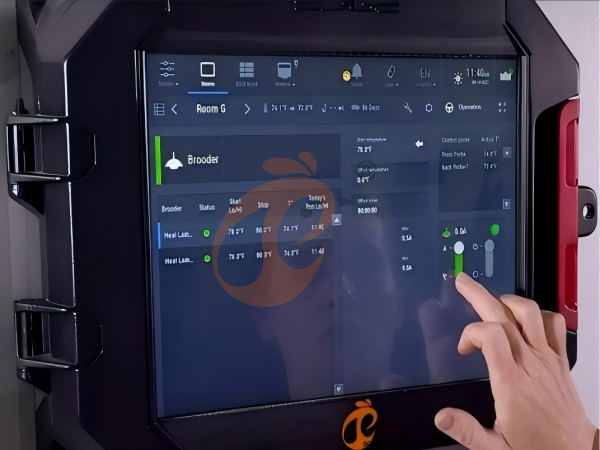

(3) One-stop management and control, continuously enhancing farm profits.

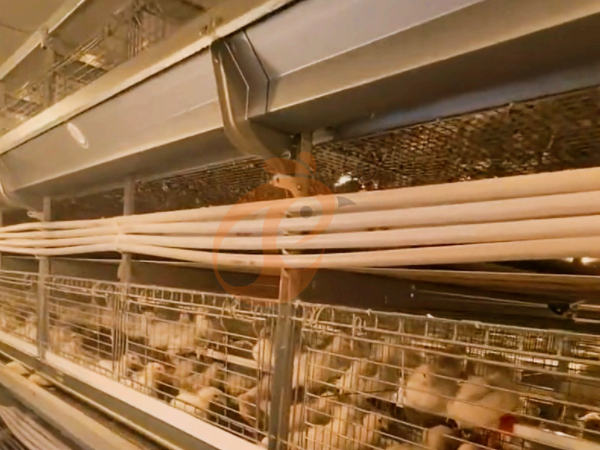

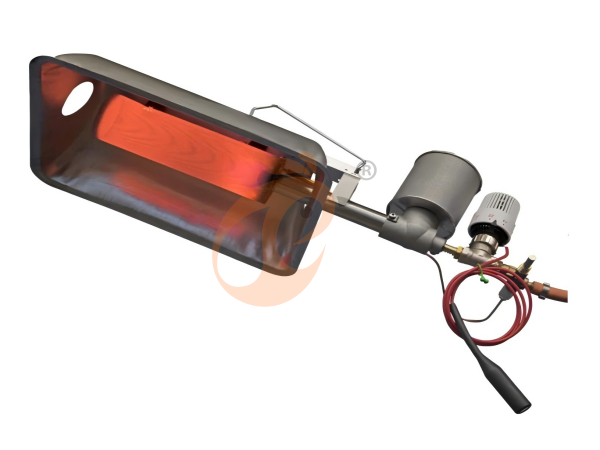

(4) Warm device gives a temperature of 28℃-37℃ to baby chicken according to its different age.

(5) Cooling device gives a temperature 18℃-27℃ to older chicken according to its different age.

(6) Humidity device gives a humidity 40%-70% to chicken according to its different age.

Please contact us to give your exact solution according to your breeding quantity and farm condition.

Visit our products to learn more...

8. Conclusion: A System Truly Ready For The Future

From stocking density and automation to final harvest, this automatic harvesting H frame broiler battery cage system delivers a complete smart-farming cycle.

With the automatic harvesting system at its core, it minimizes manual labor, boosts output, and represents a critical tool for any farm seeking efficient, large-scale broiler production.
