Quick Viewing Of H Type Automatic Broiler Battery Cage System

Current Status Of Commercial Broiler Farming Equipment Worldwide

In today's global commercial poultry industry, broiler farming has become increasingly automated and large-scale.

For commercial broiler farms with more than 10,000 birds, based on over 20 years of multi-country experience, our company has identified three mainstream H-type broiler cage designs that are widely accepted and preferred by local markets worldwide.

Three Main Types

1. Pull-out slat harvesting system

2. Chain-type automatic harvesting system

3. Without automatic harvesting system

There are equipped with automatic systems of feeding, drinking, manure cleaning, cage system and smart poultry system (optional accessories).

Some customers choose environmental control system such as automatic house lighting, heating device and ventilation systems. These are used in temperate and frigid climates, while in tropical climates they are applied as appropriate.

Application Guide Of 3 Types Of H Type Commercial Broiler Cage

To help you better understand these poultry equipment, we will present some short videos and real farm data.

Video 1: Taiyu (HK)’s Turnkey Case Of Pull-Out Slat Harvesting System

The video part of pull-out slat harvesting system are from 00:30s to 01:10s.

1. Key Advantages

• Pull out the detachable slat tray, chickens fall onto the manure belt, to end lift device for collection

• Eliminates manual catching from each cage

• Reduces labor demand by 50–60%

• Achieves harvesting efficiency of 5,000–8,000 birds/hour

• Lowers injury rate to ≤2–3%

• Improves overall harvesting speed by 2–3 times

• Ideal for commercial poultry farms seeking higher efficiency

2. Price Range

The middle one in 3 types

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Video 2: Taiyu (HK)’s Turnkey Case Of Chain-Type Automatic Harvesting System

The video part of chain type harvesting system are from 00:35s to 01:59s.

1. Key Advantages

• During harvesting, the side mesh rises, Chickens are transported to end lift device for collection

• Reduces labor demand by 50–70%

• Improves harvesting efficiency by 2–3 times

• Achieves a collection speed of 6,000–10,000 birds/hour

• Minimizes injury rate to ≤1–2%

• Suitable for large-scale commercial poultry farms (30,000+ birds)

2. Price Range

The highest one in 3 types

Video 3: Taiyu (HK)’s Turnkey Case Of Broiler Cages Without Automatic Harvesting System

1. Smart poultry system are from 00:03s to 00:06s.

2. Intelligent automatic timed and quantified feeding system are from 00:17s to 00:35s.

3. Ventilation systems are from 00:52s to 01:03.


1. Key Advantages

• Integrated automatic feeding, drinking, and manure cleaning systems, manual chicken collection

• Q235 steel with hot-dip galvanization or aluminum-zinc coating

• Service life of 15–20 years

• Fully automatic system reduces labor

2. Price Range

The lowest one in 3 types

Broiler Capacity In A House

These three types of equipment have basically the same broiler stocking capacity under the same chicken house dimensions.

1. 80 x 11 x 4.1-12 (L x W x H): 23,000 - 31,000 birds

2. 100 x 11 x 4.1-12 (L x W x H): 29,000- 40,000 birds

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Why Choosing Taiyu (HK) Group

Here is a 15 mins video showing Taiyu (HK) headquarters, poultry farm equipment, production department, QC, logistics department, customer cases...

The Advantage Of Taiyu (HK) Broiler Cage

1. Quality and design of Taiyu (HK) broiler cage: European standards

2. Lifespan of Taiyu (HK)'s pullet cage: 25+ years

3. Delivery from local factory: Hong Kong headquarters, branches of China, Nigeria, Tanzania, Ethiopia and Kenya ( depends on you location, we delivery from the nearest factory and warehouse)

Our design and quality of automatic semi harvesting H frame broiler battery cage system and poultry farm equipment based on European and USA standard.

24 hours Reception WhatsApp NO. : +8618830120193.

All pictures (or videos) of this pages are the application of our automatic semi harvesting H frame broiler battery cage system in customers' poultry farm.

Our technicians have rich experience in localizing poultry farms.

Among medium to large-scale broiler farms, the "fully automated farming + semi-automatic harvesting" model has emerged as a mainstream configuration.

When paired with high-density H-type broiler cages, which automate feeding, manure removal, watering, and environmental control.

The addition of a sliding panel + dual-purpose manure belt harvesting system significantly reduces labor demands while enabling process upgrades within a controlled budget.

"European Standard Automatic Semi Harvesting H Frame Broiler Battery Cage System Design"

1. Concise Specifications Of Semi Harvesting H Frame Broiler Battery Cage System

3 Tiers

Ending Broilers' Conveyer

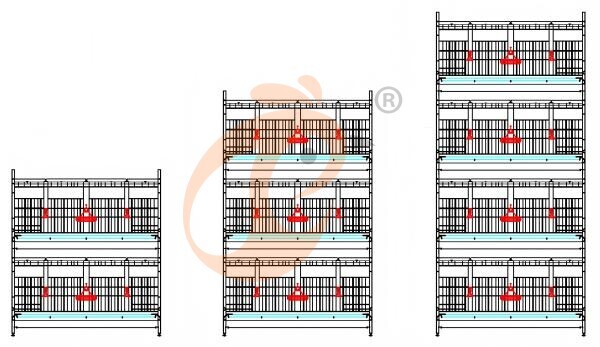

2 Tiers, 3 Tiers And 4 Tiers

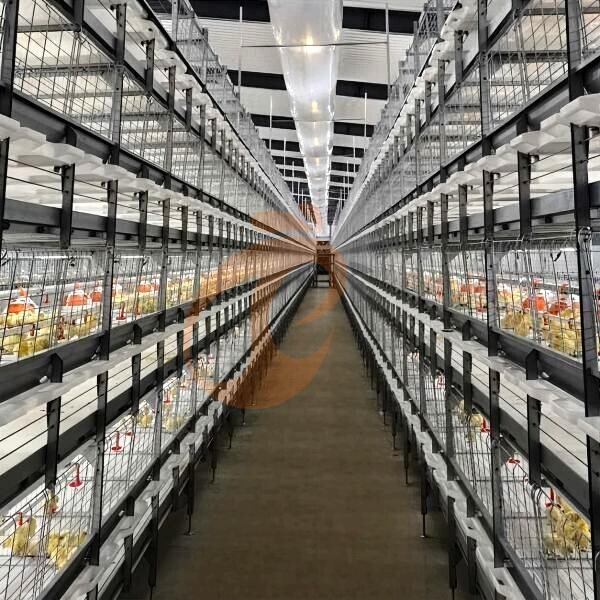

Layout Of Broiler Chicken Cage In Poultry House

(1) Technical Specifications

Data is for reference only. Swipe horizontally to view full table.

(2) Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

2. Manual Vs. Semi-Automatic Harvesting System

As shown above, the automatic semi harvesting H frame broiler battery cage system developed by Best Poultry Farm offers a smart trade-off—not full automation, but efficient automation where it counts.

With low transformation cost and strong adaptability, it has become a popular solution for farms looking to reduce labor while upgrading efficiency.

"Key Advantages Of The Automatic Semi Harvesting H Frame Broiler Battery Cage System"

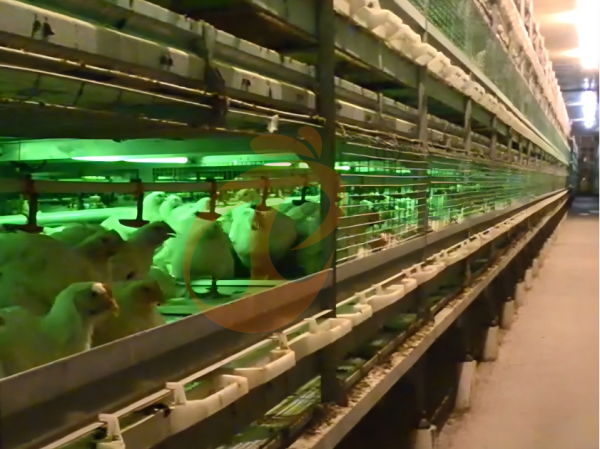

3. System Structure Design: High Density, No Compromise On Comfort

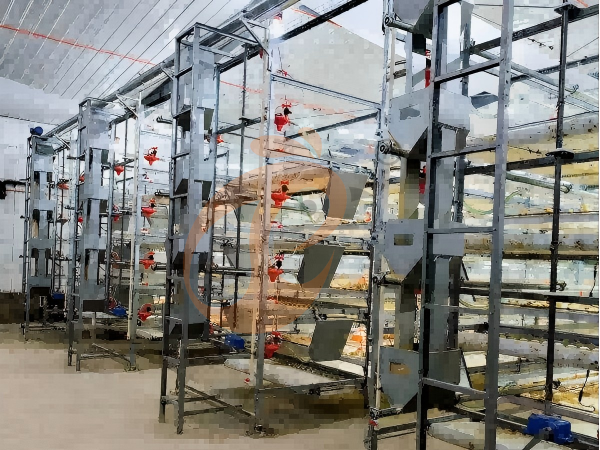

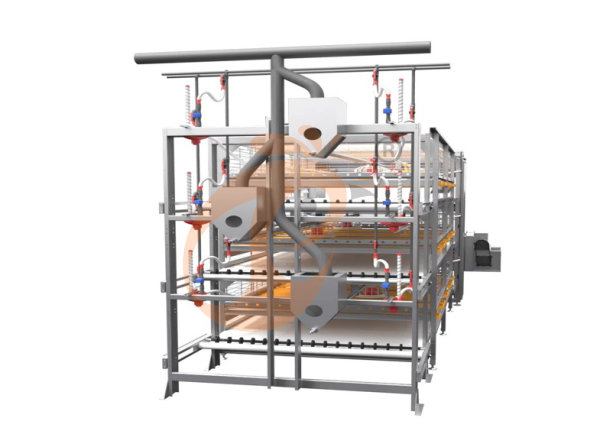

The automatic semi harvesting H frame broiler battery cage system features a symmetrical layout with a central operation aisle (≥1.5 m) between two cage rows.

H-Type Cage System Specifications

Cage Mesh And Frames

This system emphasizes compact density + smooth airflow + structural integrity + modular upgrade potential, adaptable to hot/humid southern climates and cold/dry northern regions alike.

4. Seamless System Integration: Automation That Works Every Hour

Automation here is not a collection of disconnected features—it's a continuous, coordinated chain operating 24/7.

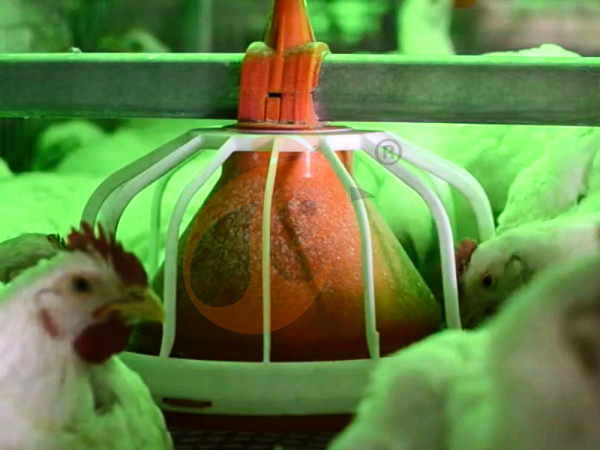

(1) Feeding System

Pipes And Feed Pan

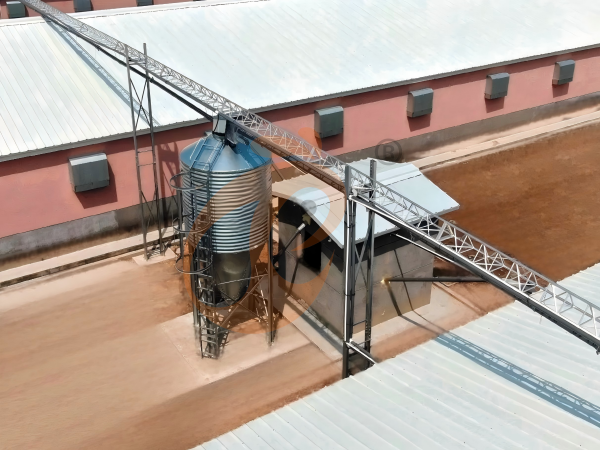

Grain silo → chain feeders → trough sensors → frequency-controlled motors

• Triggers feeding by actual demand (not just timers)

• Runs 3–4 times daily, reduces feed waste

• Energy savings up to 30%

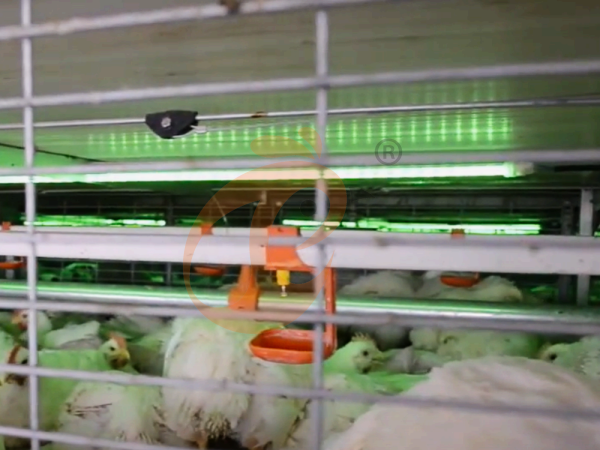

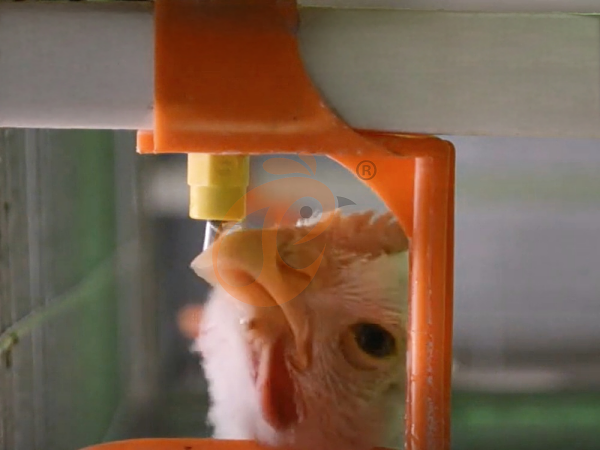

(2) Drinking System

Water tank → pressure regulator → PVC lines → nipple drinkers (30–60 ml/min)

• Auto-rinse twice daily

• Prevents algae and bacterial buildup

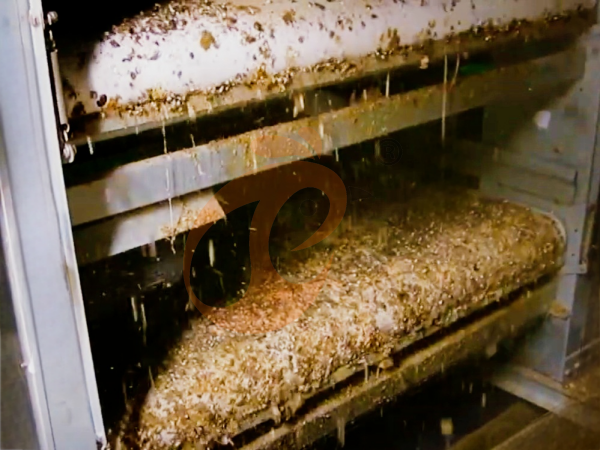

(3) Manure Removal

Independent belts per tier → powered rollers → external manure tunnel

• Runs every 2-4 hours

• Can switch to “harvest mode” during flock removal (dual-purpose)

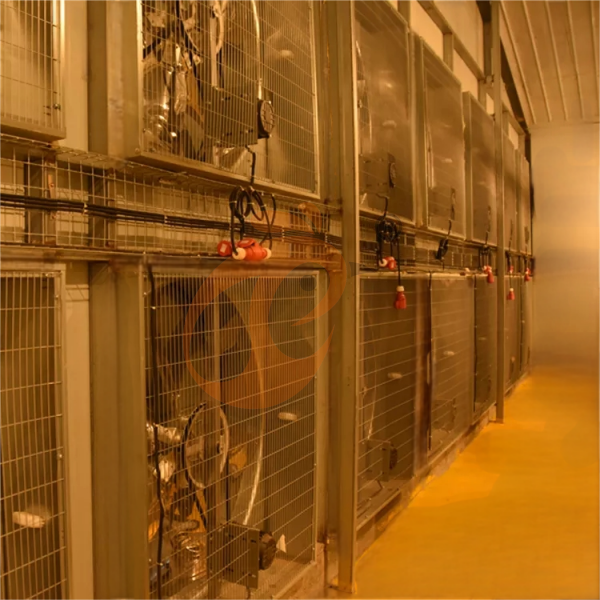

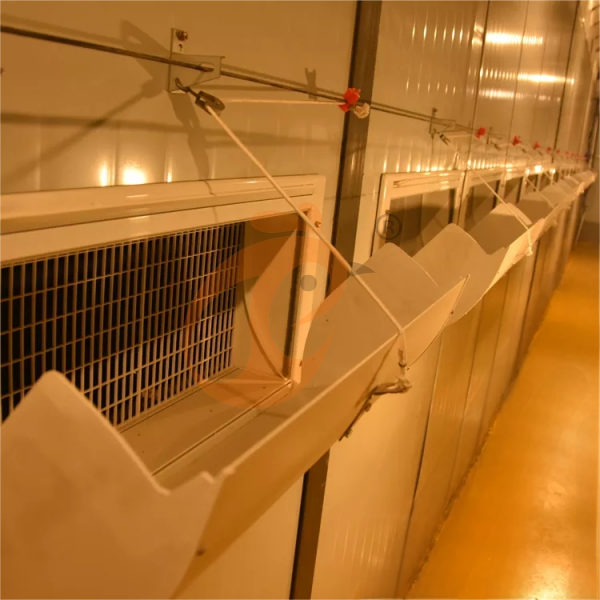

(4) Environmental Control

• 5 sensor groups per house

• Fans start at 28–30 °C

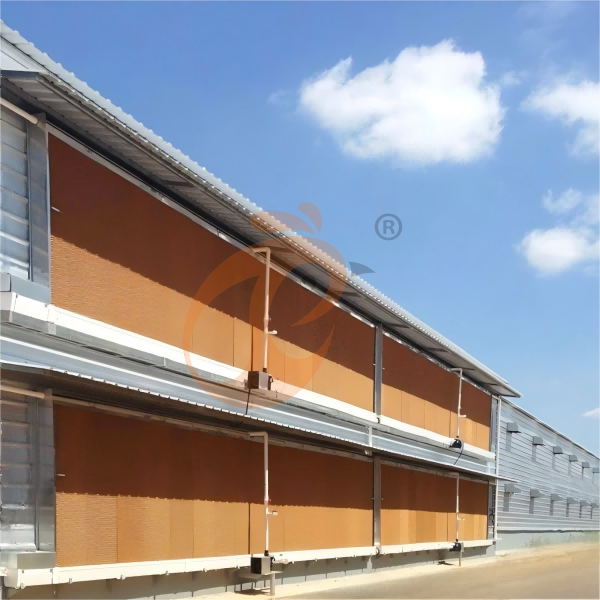

• Cooling pads adjust airflow stages

• All data can be monitored remotely

(5) Lighting

LED programmable lighting with 4 phases: sunrise / daylight / night glow / lights off

• Night light at 2–5 lux prevents piling and injuries

This automatic semi harvesting H frame broiler battery cage system isn't designed to "react to problems"—it's designed to run predictably and intelligently every hour, freeing farm managers from constant monitoring.

"Tips For Managing Poultry Farm With Automatic Semi Harvesting H Frame Broiler Battery Cage System"

5. Harvesting Flow Optimization: How The Sliding Panel + Belt Work Together

Best Poultry Farm's automatic semi harvesting H frame broiler battery cage system adopts a front-end manual + back-end mechanical workflow:

(1) Worker opens the sliding panel in front of the cage.

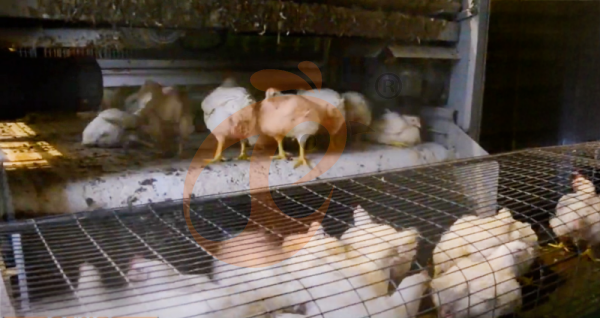

(2) Broilers gently slide down onto the lower manure belt.

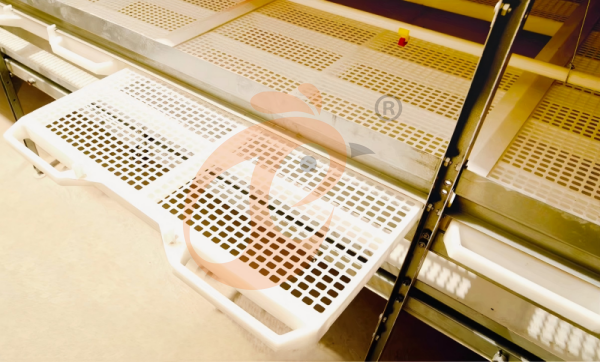

Plastic plates

(3) Belt switches to harvest mode and slowly conveys birds to rear.

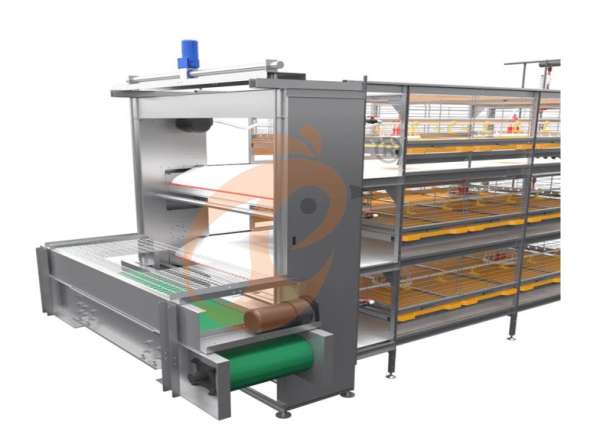

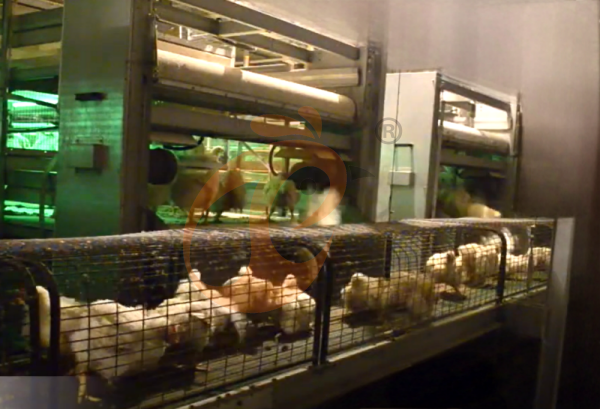

Broilers Drop To Horizontal Conveyor Lifter Ending Of Every Cage's Row

(4) A horizontal conveyor then moves birds out of the house.

Ending Transportating Device

(5) Workers perform crating or load directly onto trucks.

(6) This minimizes stress, reduces injury risk, saves labor time, and requires no structural overhaul of the house.

6. Why No Transfer? Four Operational Advantages Of All-In-One Cage Management

Traditional farms often brood chicks separately for 14 days before transferring them into grow-out cages.

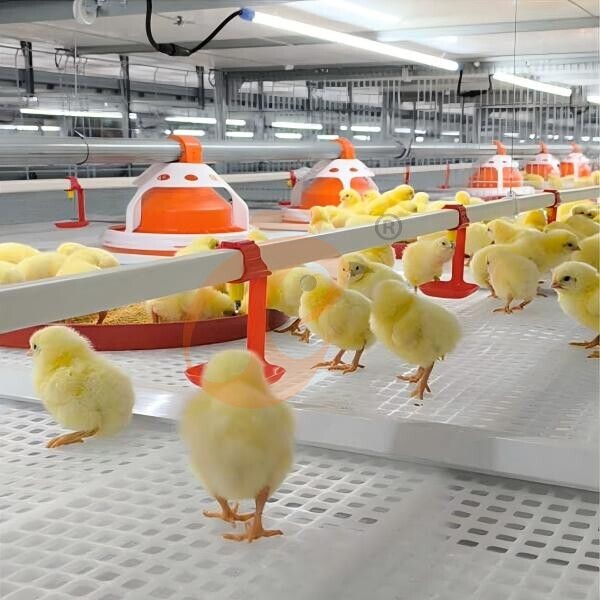

But this automatic semi harvesting H frame broiler battery cage system supports the full cycle—from day-old to market—in the same cage, with four real-world advantages:

(1) No Transfer = Less Mortality + Higher Weight Gain

• Transferring causes 16% drop in average daily gain for 7 days

• Eliminates stress-related losses (~0.3% lower mortality)

• Profit impact: 30 fewer deaths × 2 kg × $1.00/kg ≈ $60 saved per batch of 10,000 birds

(2) No Separate Brooding House = Lower Infrastructure Cost

• A brooding house for 10,000 birds = ~300 m² = $8,000(Under EU standards) in construction costs

• All brooding done in main house with ground heating or heaters

• Saves 25–30% floor space and system duplication

(3) Unified Operation = Easier Training + Fewer Mistakes

• Staff turnover is ~30% per year in large operations

• Standardized system means new workers can be trained in 2 days

• Management error rate reduced by 30–40%

(4) Consistent Flock Output = Uniform Weights + Market Advantage

• Weight variation stays within ±80 g, boosting load efficiency

• Each bird gains ~0.1 kg extra over 45 days

• Adds 1,000 kg meat per batch = $830–970 extra revenue

All-in-one cage design isn't just about hardware—it's a smarter business model. Less infrastructure, less stress, fewer errors, better outputs. Ideal for scaling without risk.
