Quick Viewing Of H Type Automatic Broiler Battery Cage System

Current Status Of Commercial Broiler Farming Equipment Worldwide

In today's global commercial poultry industry, broiler farming has become increasingly automated and large-scale.

For commercial broiler farms with more than 10,000 birds, based on over 20 years of multi-country experience, our company has identified three mainstream H-type broiler cage designs that are widely accepted and preferred by local markets worldwide.

Three Main Types

1. Pull-out slat harvesting system

2. Chain-type automatic harvesting system

3. Without automatic harvesting system

There are equipped with automatic systems of feeding, drinking, manure cleaning, cage system and smart poultry system (optional accessories).

Some customers choose environmental control system such as automatic house lighting, heating device and ventilation systems. These are used in temperate and frigid climates, while in tropical climates they are applied as appropriate.

Application Guide Of 3 Types Of H Type Commercial Broiler Cage

To help you better understand these poultry equipment, we will present some short videos and real farm data.

Video 1: Taiyu (HK)’s Turnkey Case Of Pull-Out Slat Harvesting System

The video part of pull-out slat harvesting system are from 00:30s to 01:10s.

1. Key Advantages

• Pull out the detachable slat tray, chickens fall onto the manure belt, to end lift device for collection

• Eliminates manual catching from each cage

• Reduces labor demand by 50–60%

• Achieves harvesting efficiency of 5,000–8,000 birds/hour

• Lowers injury rate to ≤2–3%

• Improves overall harvesting speed by 2–3 times

• Ideal for commercial poultry farms seeking higher efficiency

2. Price Range

The middle one in 3 types

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Video 2: Taiyu (HK)’s Turnkey Case Of Chain-Type Automatic Harvesting System

The video part of chain type harvesting system are from 00:35s to 01:59s.

1. Key Advantages

• During harvesting, the side mesh rises, Chickens are transported to end lift device for collection

• Reduces labor demand by 50–70%

• Improves harvesting efficiency by 2–3 times

• Achieves a collection speed of 6,000–10,000 birds/hour

• Minimizes injury rate to ≤1–2%

• Suitable for large-scale commercial poultry farms (30,000+ birds)

2. Price Range

The highest one in 3 types

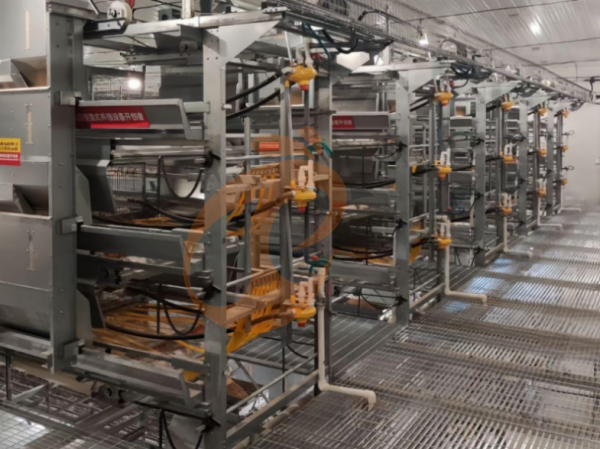

Video 3: Taiyu (HK)’s Turnkey Case Of Broiler Cages Without Automatic Harvesting System

1. Smart poultry system are from 00:03s to 00:06s.

2. Intelligent automatic timed and quantified feeding system are from 00:17s to 00:35s.

3. Ventilation systems are from 00:52s to 01:03.


1. Key Advantages

• Integrated automatic feeding, drinking, and manure cleaning systems, manual chicken collection

• Q235 steel with hot-dip galvanization or aluminum-zinc coating

• Service life of 15–20 years

• Fully automatic system reduces labor

2. Price Range

The lowest one in 3 types

Broiler Capacity In A House

These three types of equipment have basically the same broiler stocking capacity under the same chicken house dimensions.

1. 80 x 11 x 4.1-12 (L x W x H): 23,000 - 31,000 birds

2. 100 x 11 x 4.1-12 (L x W x H): 29,000- 40,000 birds

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Why Choosing Taiyu (HK) Group

Here is a 15 mins video showing Taiyu (HK) headquarters, poultry farm equipment, production department, QC, logistics department, customer cases...

The Advantage Of Taiyu (HK) Broiler Cage

1. Quality and design of Taiyu (HK) broiler cage: European standards

2. Lifespan of Taiyu (HK)'s pullet cage: 25+ years

3. Delivery from local factory: Hong Kong headquarters, branches of China, Nigeria, Tanzania, Ethiopia and Kenya ( depends on you location, we delivery from the nearest factory and warehouse)

• Our design and quality of IoT poultry farming system and poultry farm equipment based on European and USA standard.

• 24 hours Reception WhatsApp NO. : +8618830120193.

• All pictures (or videos) of this pages are the application of our in customers' poultry farm. Our technicians have rich experience in localizing poultry farms.

Imagine a poultry farm where the frantic squawks of feeding time are replaced by the gentle hum of automation.

Where the back-breaking labor of daily chores is handled by precision engineering, and your bottom line grows as steadily as your birds.

This isn't a futuristic fantasy. This is the reality delivered by the automatic H frame broiler battery cage system.

For decades, broiler farming has been a game of muscle and guesswork.

With global demand for poultry protein soaring, efficiency isn't just an advantage—it's a necessity.

The automatic H frame broiler battery cage system transforms your operation from a cost center into a profit powerhouse.

It's not just a cage; it's your strategic partner in high-density, high-yield poultry production.

"European Standard Automatic H Frame Broiler Chicken Cage For Sale"

1. Concise Specifications Of Automatic H Frame Broiler Chicken Cage For Sale

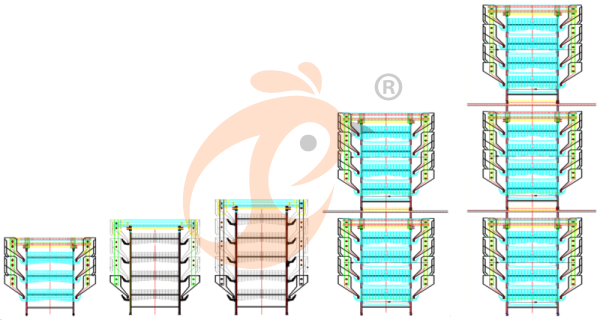

4 Tiers

3 Tiers, 4 Tiers, 5 Tiers, 8 Tiers, 12 Tiers

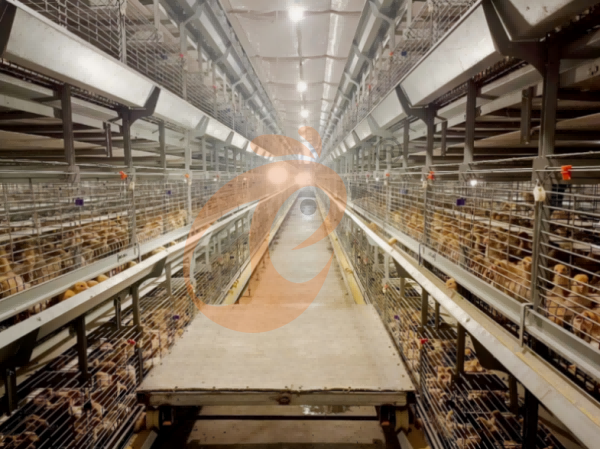

Layout Of Broiler Chicken Cage In Poultry House

(1) Technical Specifications

Data is for reference only. Swipe horizontally to view full table.

(2) Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

2. Based Structure Of Automatic H Frame Brooder Battery Cage System

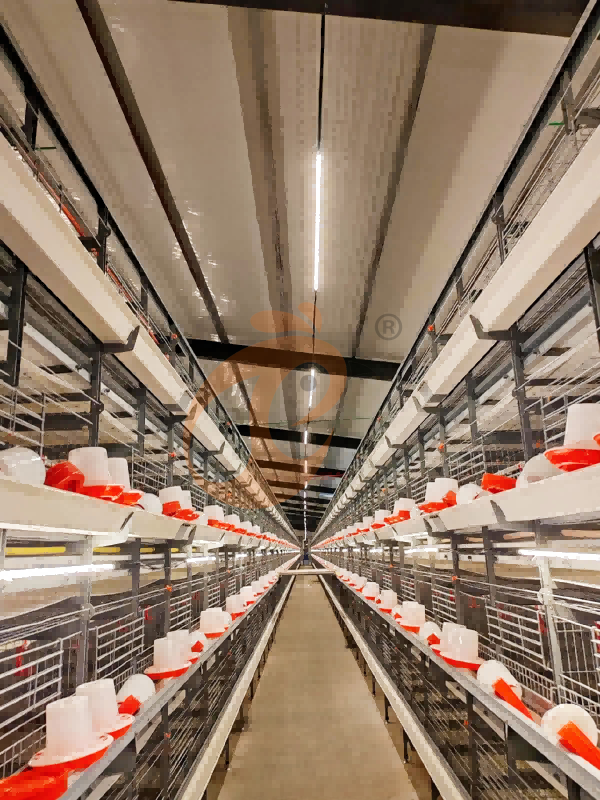

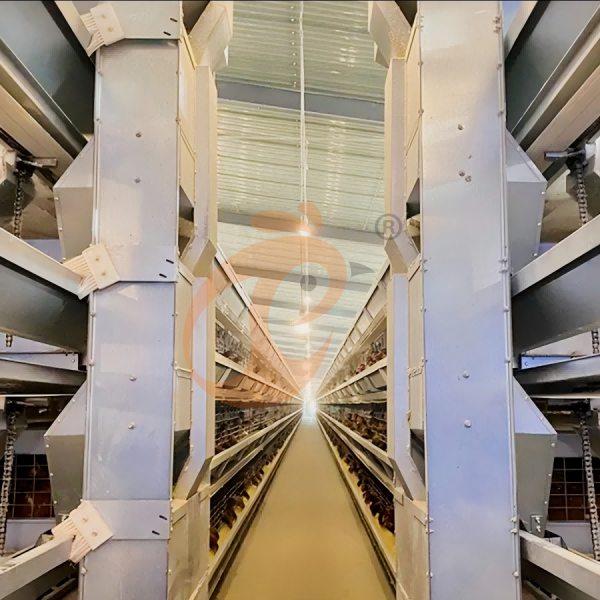

Cage Frame And Cage Mesh System

• Main material: Heavy galvanized material

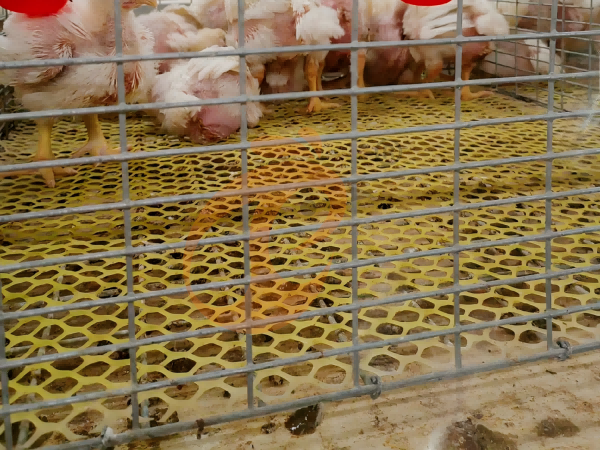

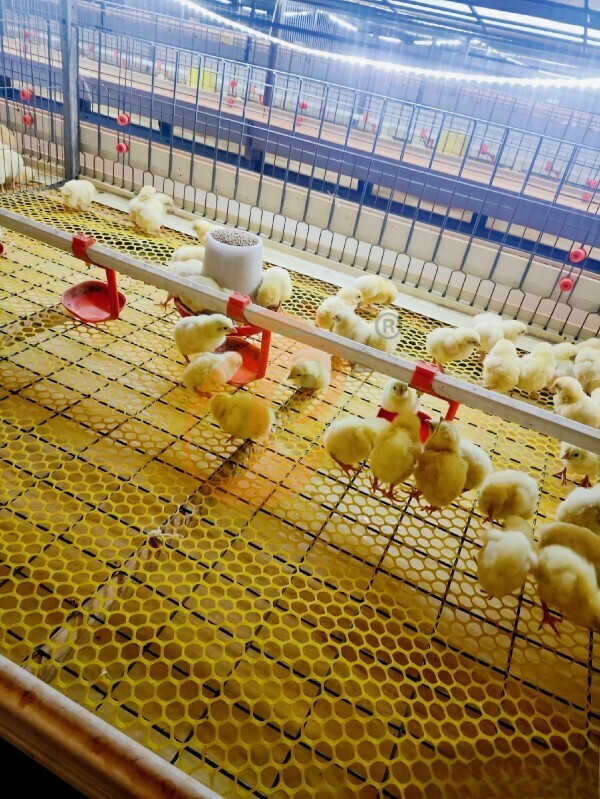

• Plastic floor mesh: 3–5 mm thick, 12–15 mm hole diameter, flexible, wear-resistant, and anti-slip.

• Accessories: Cage doors (sliding or bolt type), partition grids, support clips, anti-escape latches, plastic floor mesh (for chicks), bolts, connecting plates, galvanized coating, anti-rust coating.

• Grower stage: plastic mesh can be removed, chickens stand directly on the metal mesh or cage floor, improving durability and cleaning efficiency.

"The Advantages Of Automatic H Frame Broiler Chicken Cage For Sale"

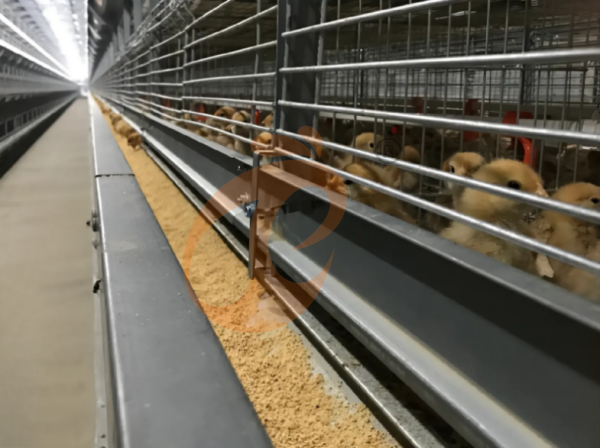

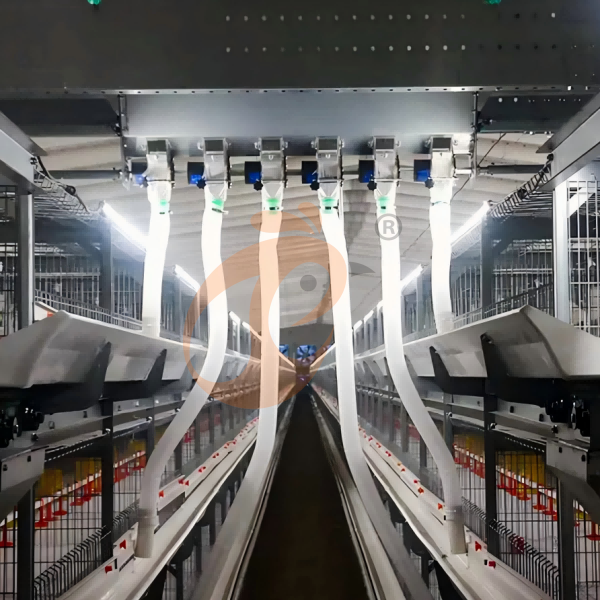

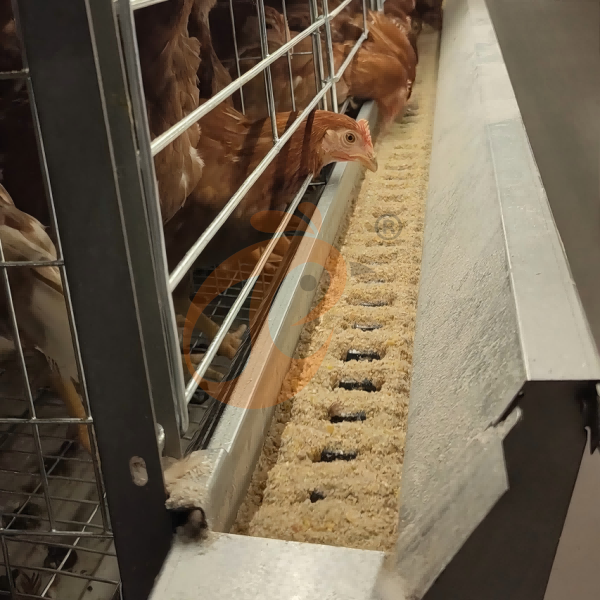

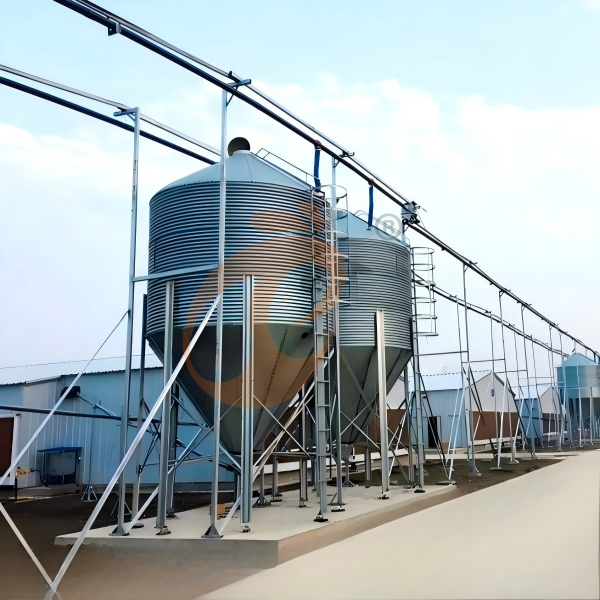

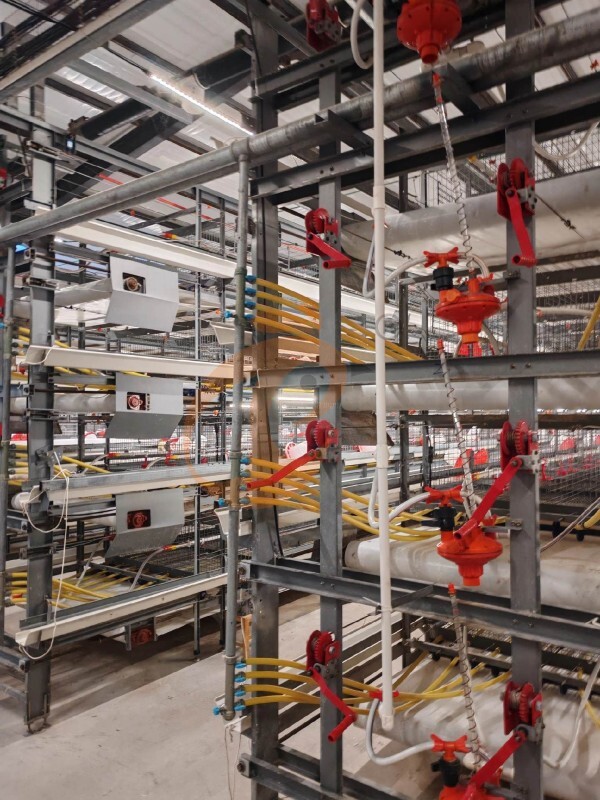

3. Automated Feeding System: Precision On A Rail

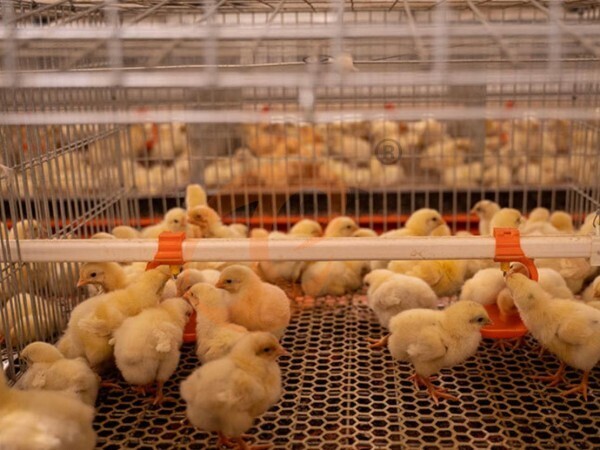

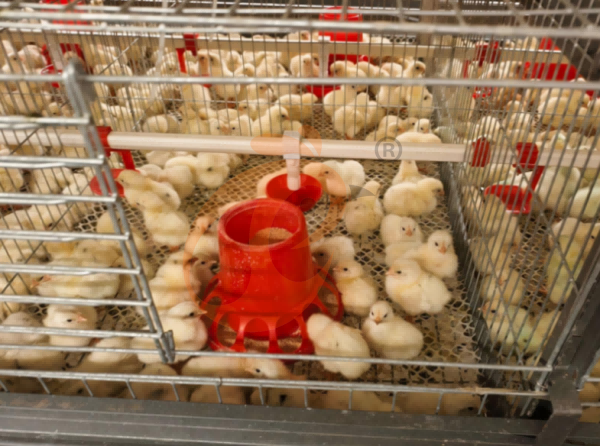

Small Feeder For Young Broiler

Automated feed delivery ensures uniform distribution with minimal waste. The system reduces labor and simplifies feeding routines for high-density operations.

Automated Feeding System Performance Data

Specific configurations are subject to customer requirements or final quotation.
Optimize feed efficiency and reduce costs instantly with the automatic H frame broiler battery cage system's precise feeding technology.

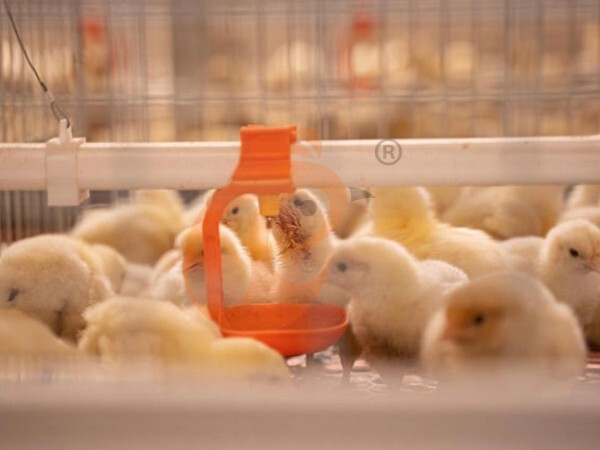

4. Intelligent Watering System: Hydration At A Peck

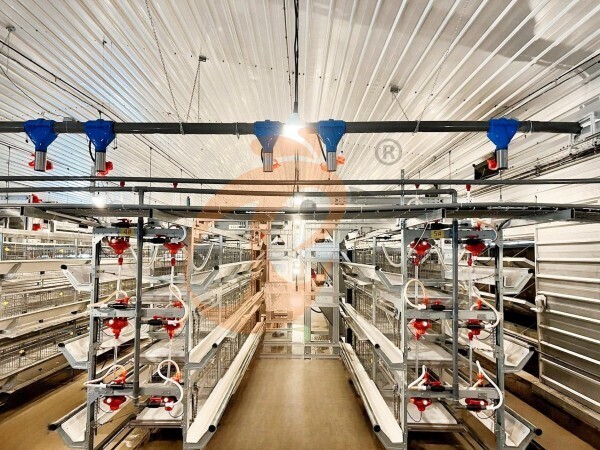

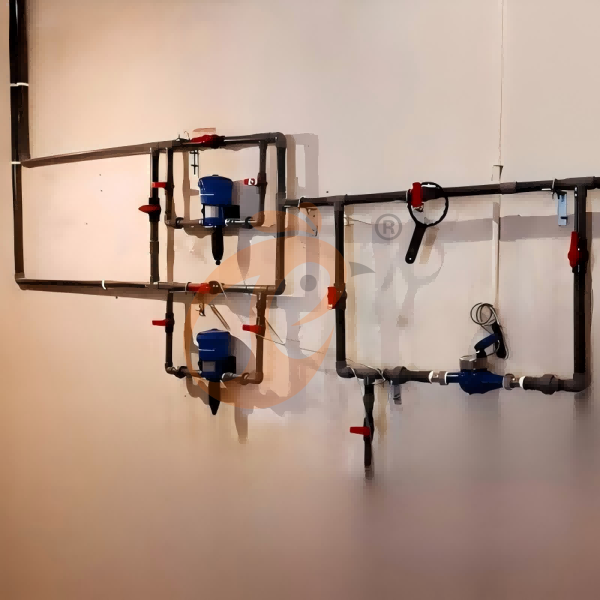

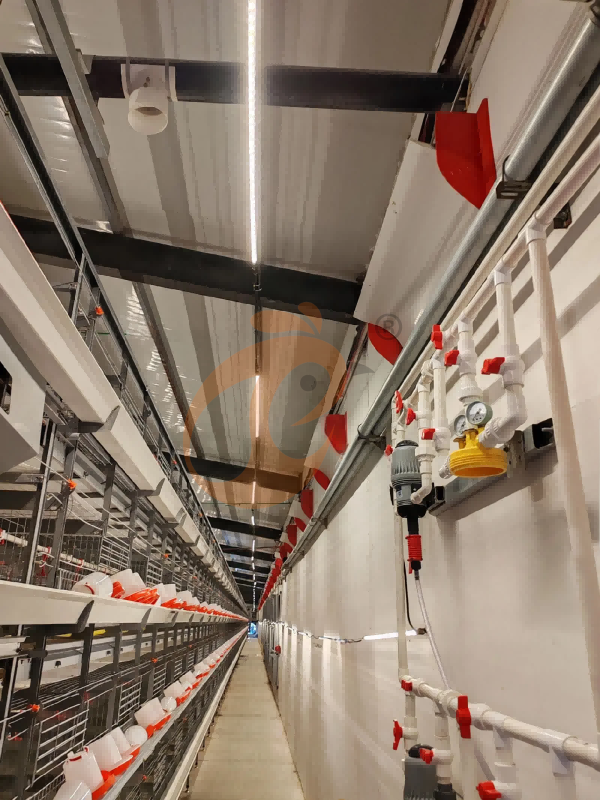

Beginning Device And Water Filter

The nipple drinking system maintains clean water delivery and reduces spillage, improving overall flock health while simplifying monitoring.

Nipple Drinking System Metrics

Data is for reference only. Swipe horizontally to view full table.

Ensure every bird drinks with ease and stay healthier with the automatic H frame broiler battery cage system's intelligent watering design.

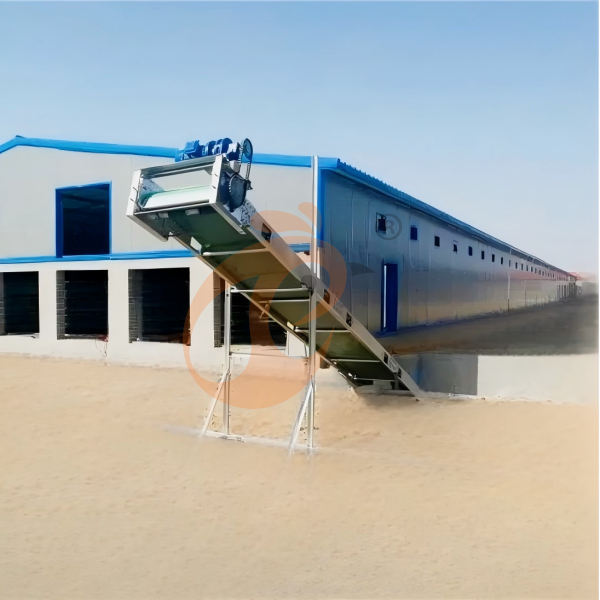

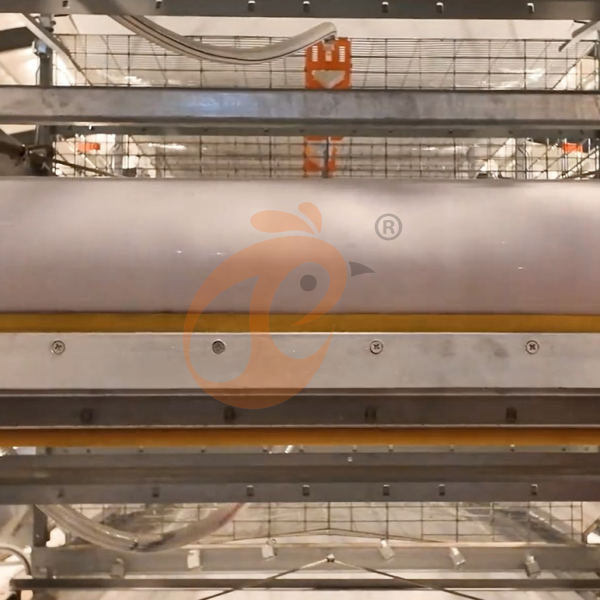

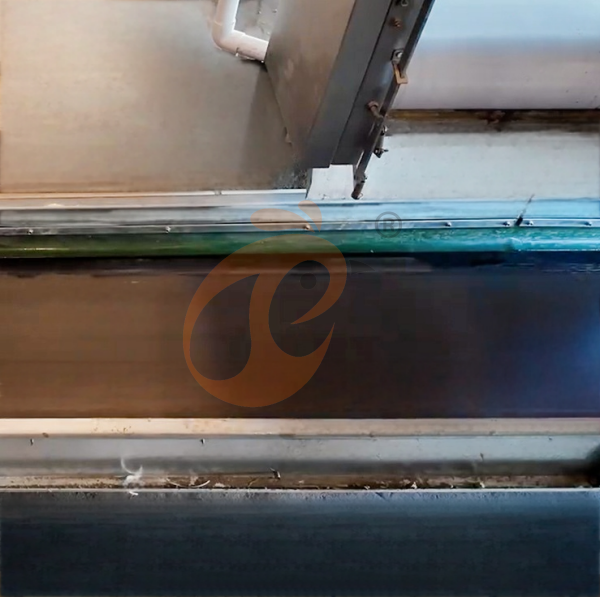

5. Manure Management System: Dry, Clean Solution

The manure belt system keeps litter dry and reduces ammonia, improving hygiene and overall bird welfare.

Maintenance is simplified with automated belts and anti-runoff design.

Manure Drying & Removal Efficiency

"Tips Of Managing Poultry Farm And Poultry Farm Equipment"

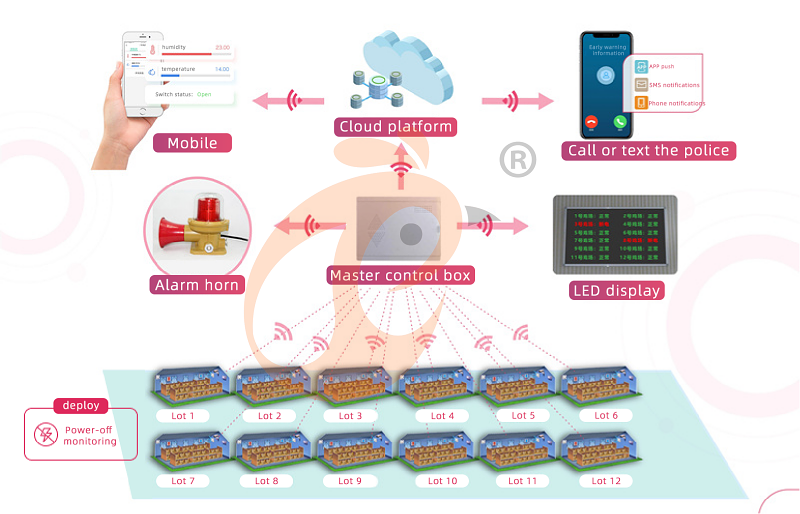

6. IoT & Smart Farm Integration

Full data collection

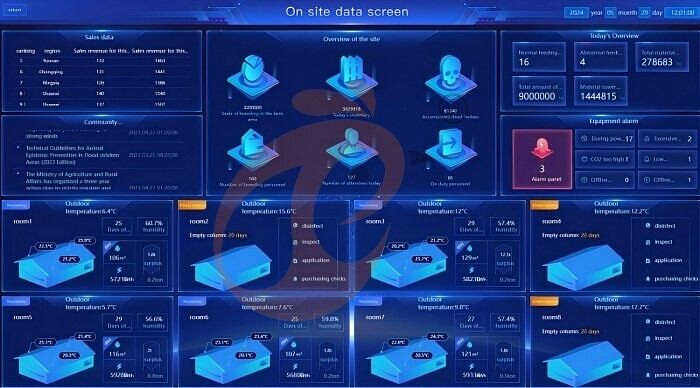

On site data screen

Sensors monitor temperature, humidity, air quality, and feed/water consumption.

Data integration allows proactive management and automated alerts for optimal flock performance.

Smart Farm IoT Integration Metrics

Data is for reference only. Swipe horizontally to view full table.

Transform your poultry farm into a smart, data-driven operation with the automatic H frame broiler battery cage system.

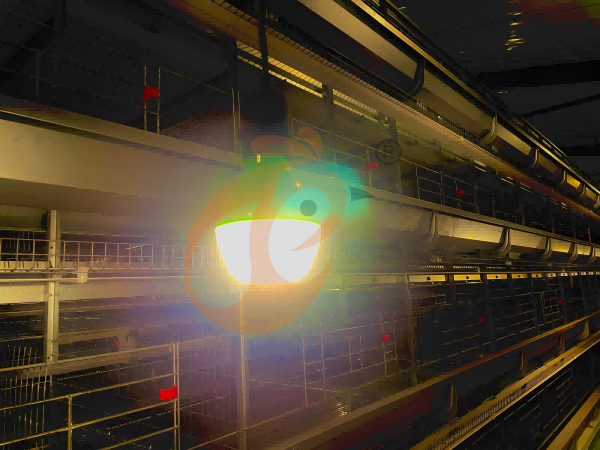

7. Lighting & Microenvironment

Light or LED lighting 9W, warm light, lifespan 50,000 h. Dimmable via control boxes.

Ventilation via high-quality fans + wet curtain system, side ventilation windows, temperature & humidity controllers integrated into a control cabinet.

Lighting & Microenvironment Parameters

Data is for reference only. Swipe horizontally to view full table.

Provide your flock the perfect environment for growth with the automatic H frame broiler battery cage system.

8. Farm Application & Essential Know-How

(1) Stocking Density And Bird Welfare

The automatic H frame broiler battery cage system provides birds sufficient space to stand, sit, and move freely while accessing feed and water.

This controlled environment minimizes stress, aggression, and competition, promoting uniform growth and healthier flocks.

(2) Stocking & Harvesting Parameters

(3) Farm Application Case

At green valley poultry farm in Jiangsu, a 50 x 7 m house equipped with 4-tier H cages reared 7,128 broilers per cycle.

Integration of automated feeding, watering, and manure management reduced labor by 60% and improved feed conversion.

Birds exhibited calmer behavior, lower mortality, and more uniform growth. Manual harvesting was faster and safer, resulting in higher-quality meat and reduced carcass downgrades.

Maximize bird welfare and farm profits with the automatic H frame broiler battery cage system.

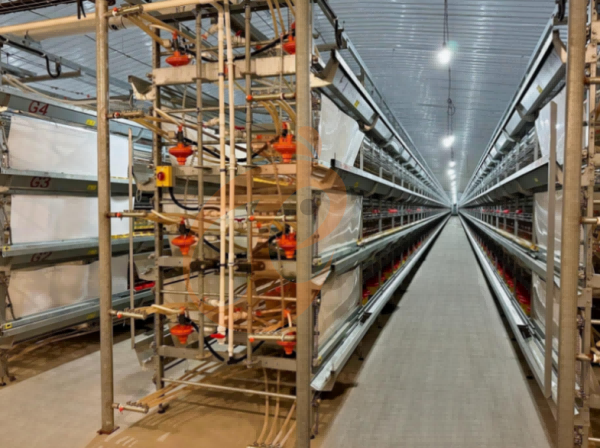

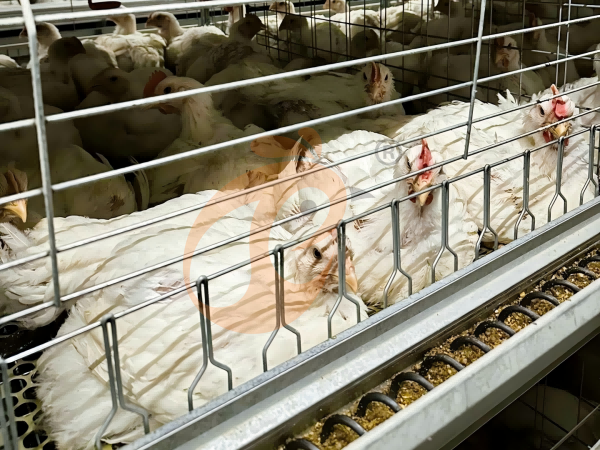

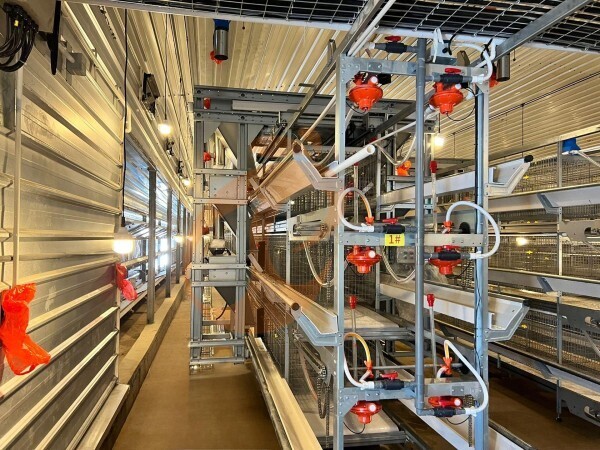

9. Efficient Manual Harvesting

Large cage doors and ergonomic height allow systematic bird removal. Birds accustomed to daily human checks remain calm, improving meat quality.

Key Management Focus Areas

Automation allows farm managers to focus on:

• Data monitoring: Feed & water via IoT sensors.

• System maintenance: Weekly inspection prevents issues.

• Environmental control: Dry litter, efficient ventilation.

• Lighting & enrichment: Correct photoperiod enhances FCR and welfare.

10. Recommendation Farm Management Of Poultry Farm, House And Cage System (selective assembly)

(1) From CCTV to giving order to every house, from date collection to AI data analysis report, abnormal condition detection and alarm system.

(2) Lighting is provided for chickens of all ages, which enhances their immunity and increases their productivity.

(3) One-stop management and control, continuously enhancing farm profits.

(4) Cooling device gives a temperature 18℃-27℃ to older chicken according to its different age.

(5) Humidity device gives a humidity 40%-70% to chicken according to its different age.

(6) Please contact us to give your exact solution according to your breeding quantity and farm condition.
