Our design and quality of semi automatic A frame manual harvesting broiler battery cage system and poultry farm equipment based on European and USA standard.

24 hours Reception WhatsApp NO. : +8618830120193.

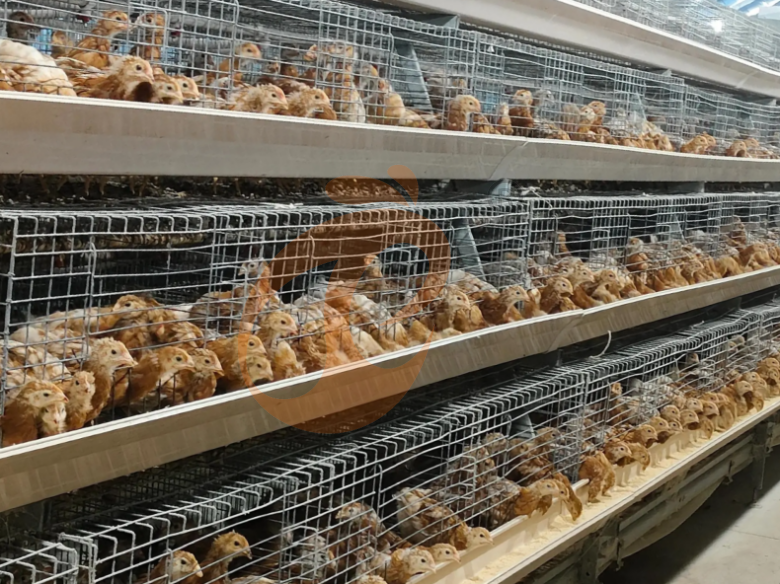

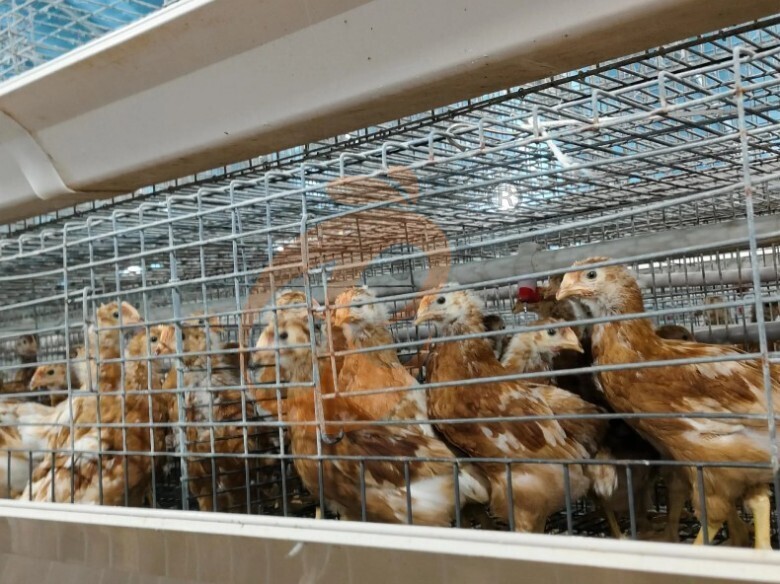

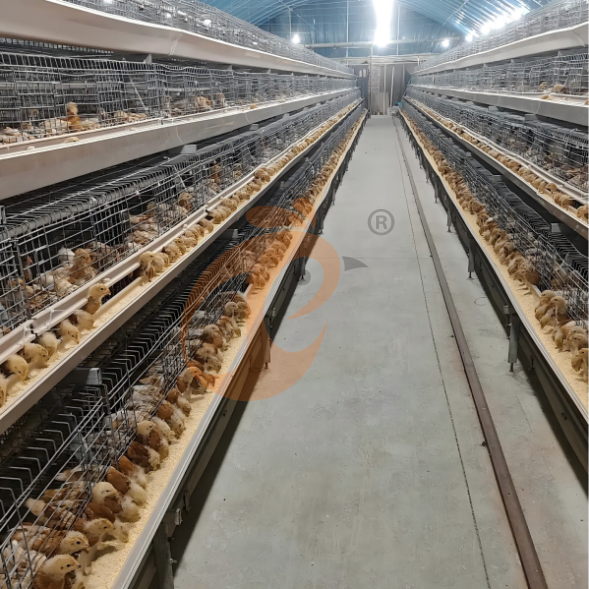

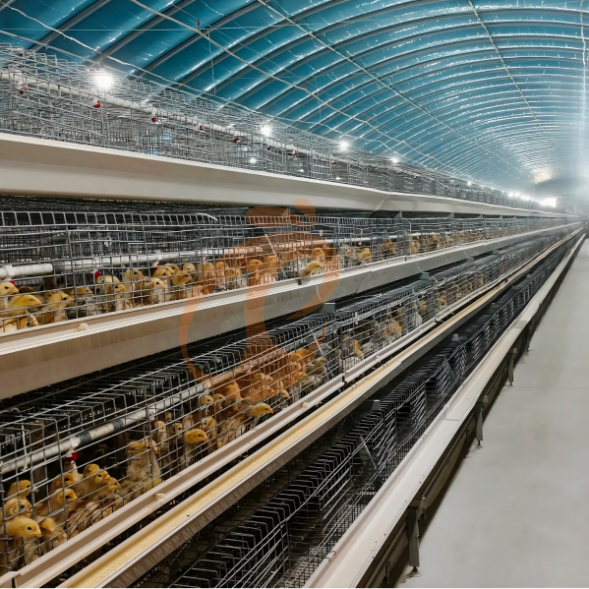

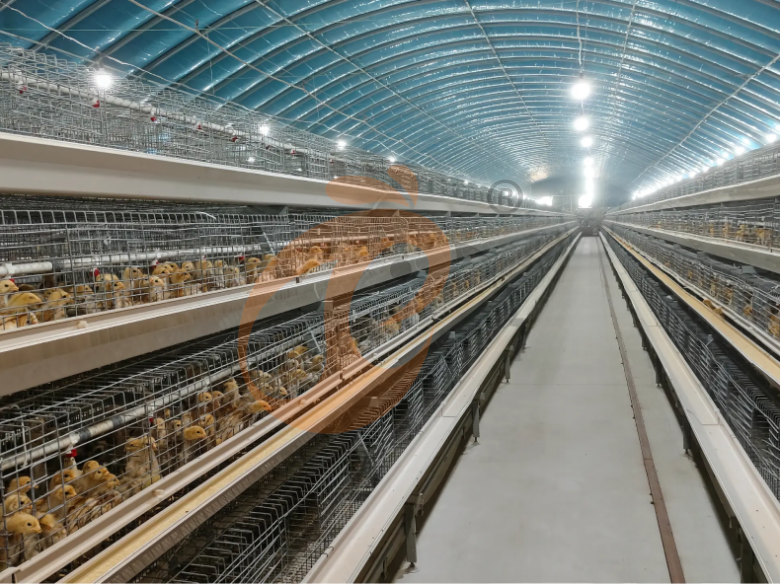

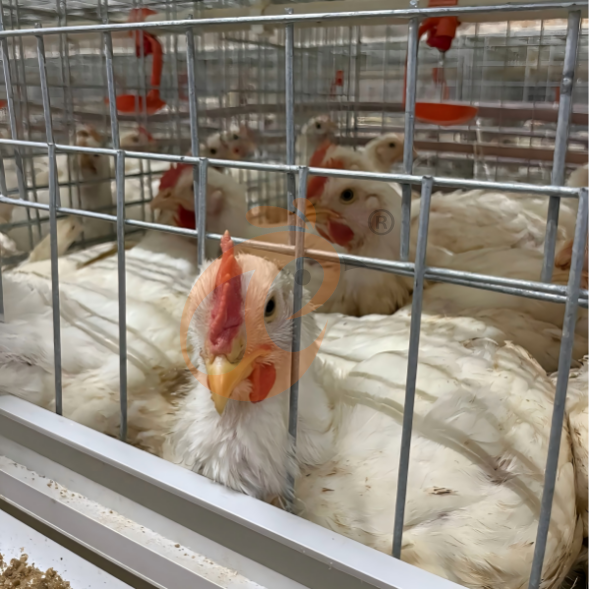

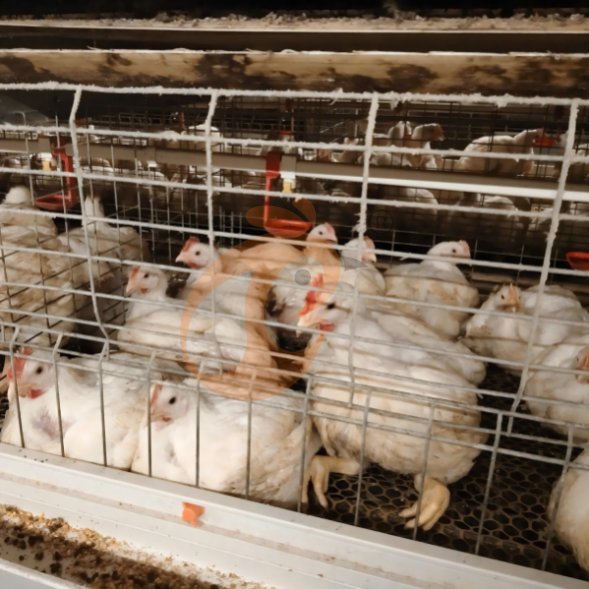

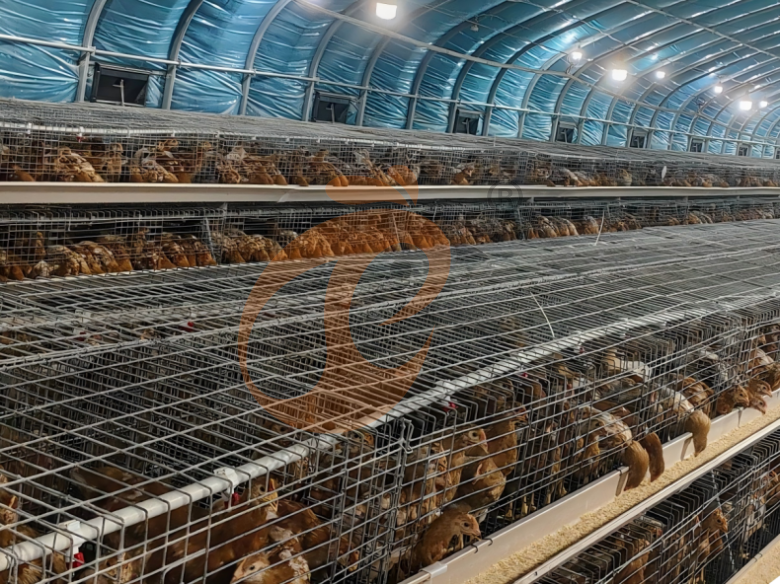

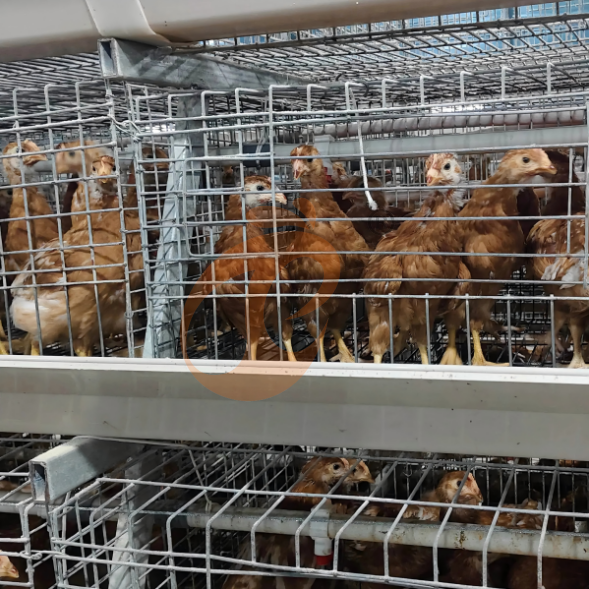

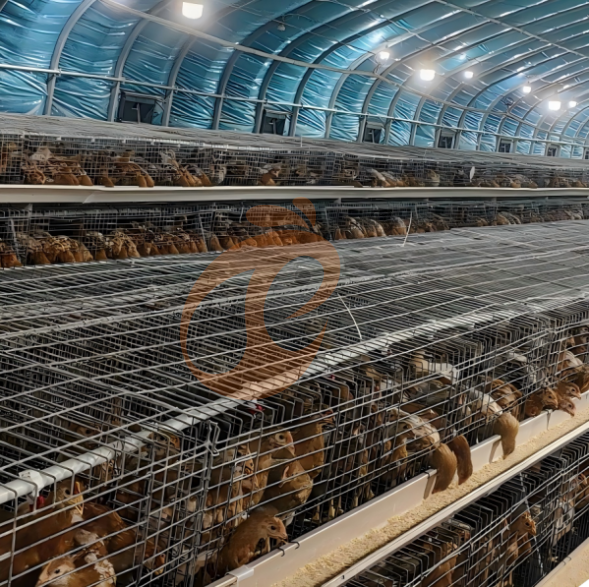

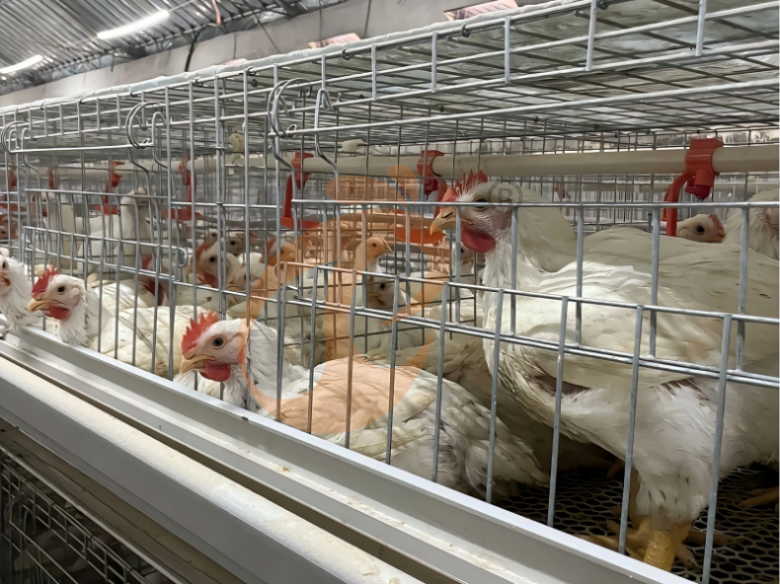

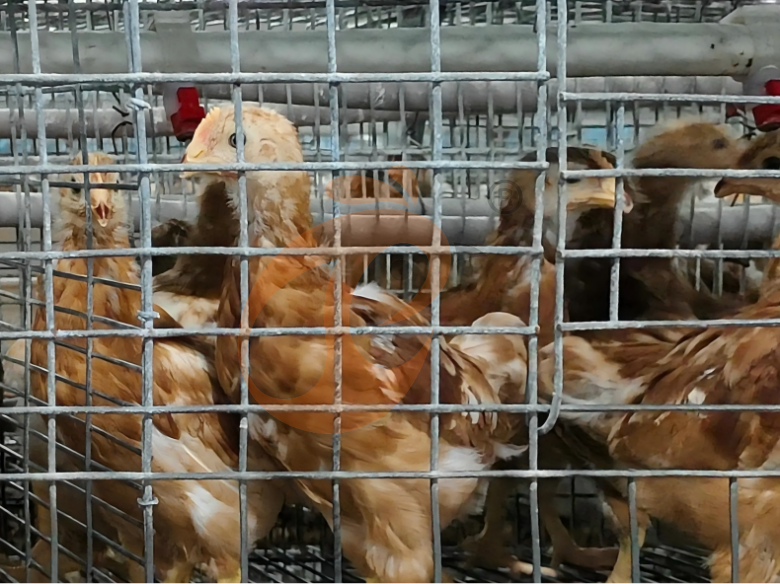

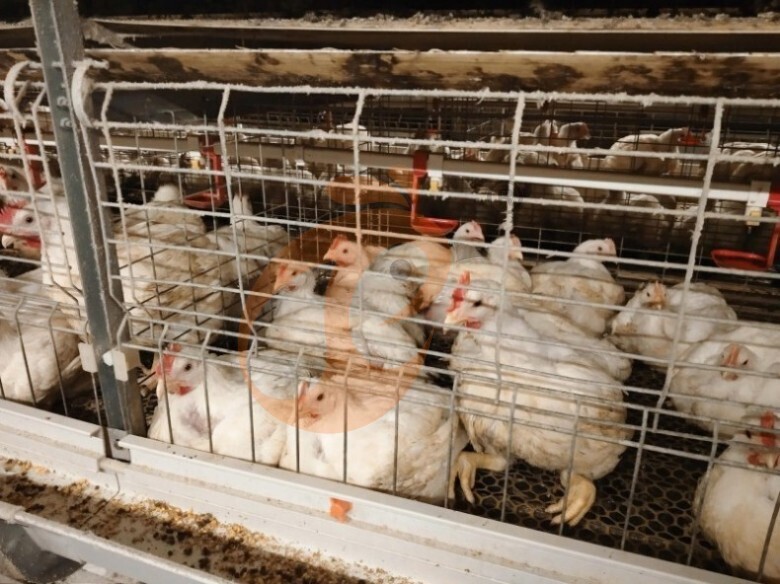

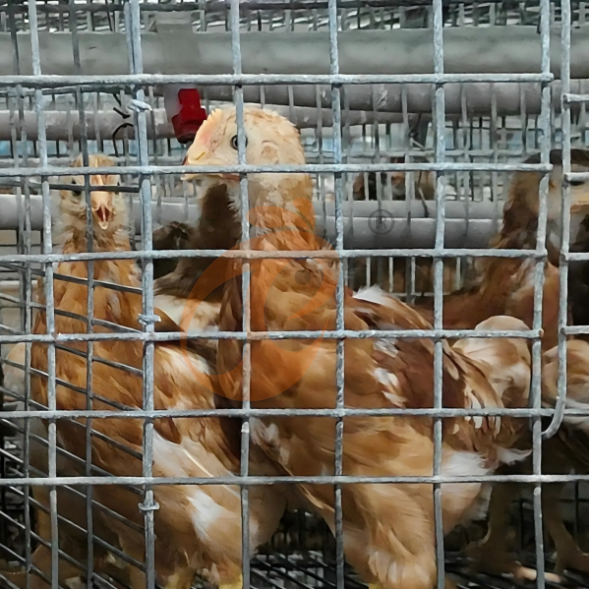

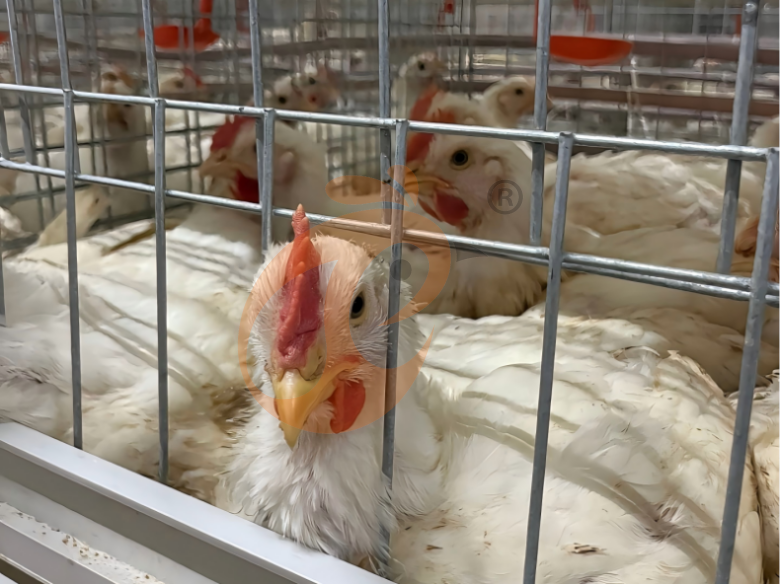

All pictures (or videos) of this pages are the application of our semi automatic A frame manual harvesting broiler battery cage system in customers' poultry farm.

Our technicians have rich experience in localizing poultry farms.

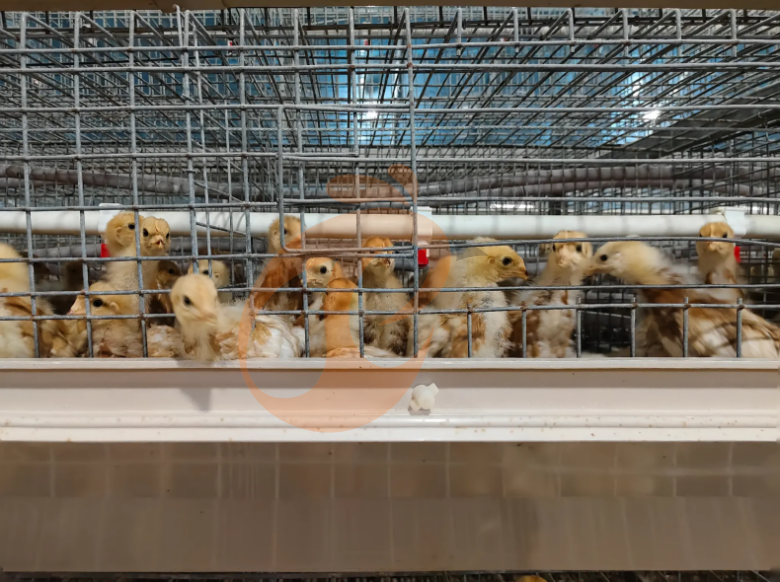

Semi automatic A frame manual harvesting broiler battery cage system is suitable for broilers aged 7–50 days, with cage and accessory designs that accommodate the transition from chicks to adult chickens.

For instance, a plastic floor mesh is used for chicks and can be removed as they grow.

And nipple drinker heights are adjustable; feed troughs adapt to the rapid growth of broilers, and small feed tubes can be removed once the chickens mature.

This semi automatic A frame manual harvesting broiler battery cage system ensures a smooth growth cycle.

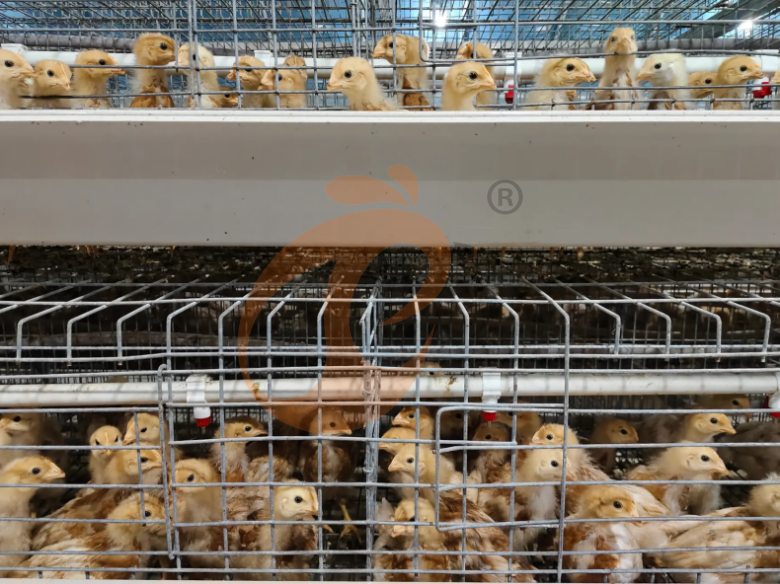

"European Standard Semi Automatic A Frame Manual Harvesting Broiler Battery Cage System"

1. Concise Specifications Of Semi Automatic A Frame Manual Harvesting Broiler Battery Cage System

For your reference only, the following data is estimated, The exact data is based on the actual needs of the project and customer requirements, or our exact quotation.

3 Tiers

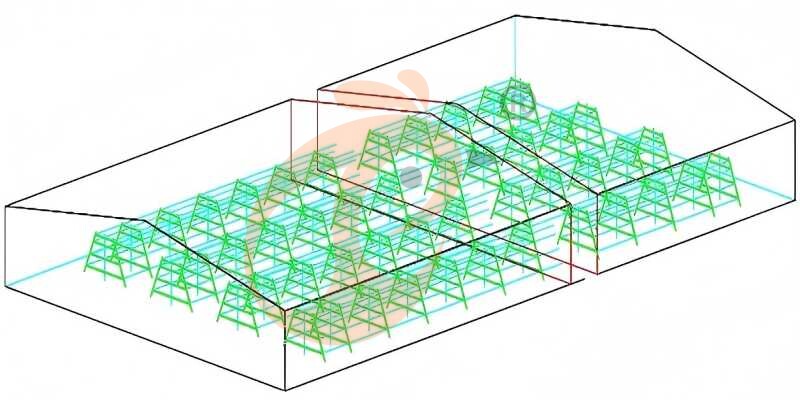

Layout Of Broiler Battery Cage System In Poultry House

(1) Technical Specifications

Data is for reference only. Swipe horizontally to view full table.

(2) Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

"The Advantages Of Semi Automatic A Frame Manual Harvesting Broiler Battery Cage System"

2. Accessories, Structure, And Working Principles

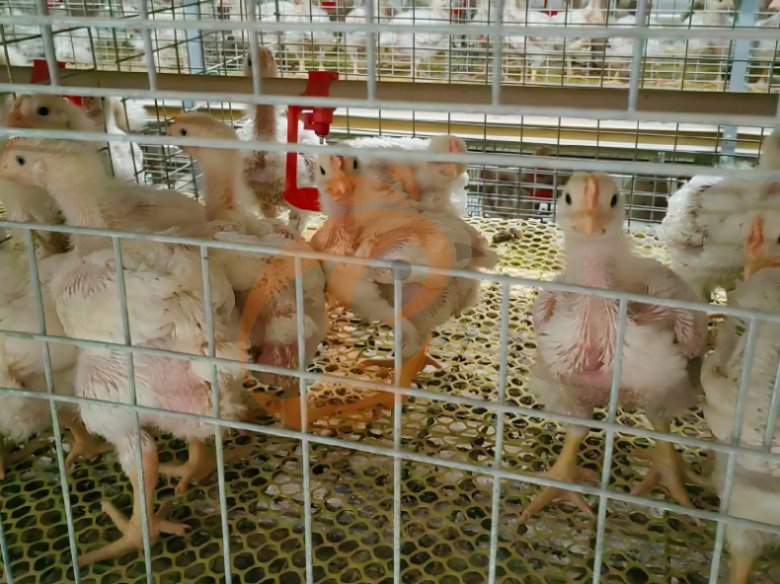

(1) Fixed Cage System

Accessories: Cage door (sliding/latch), partition mesh, support clips, anti-escape lock, plastic floor mesh (for chicks)

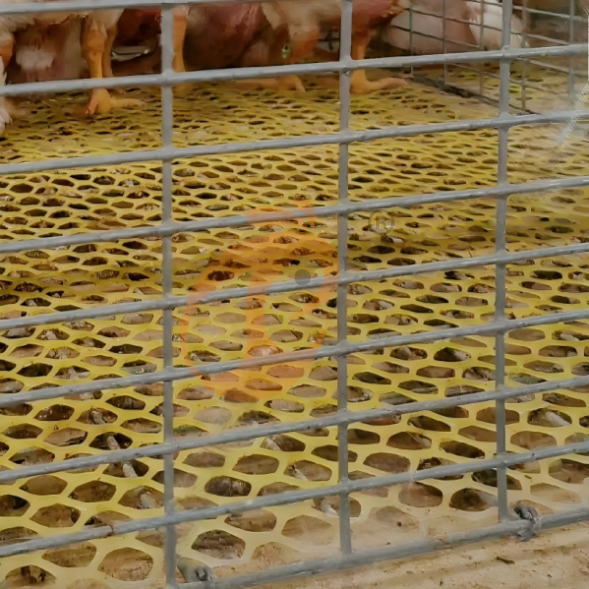

Plastic Mesh

• Structure

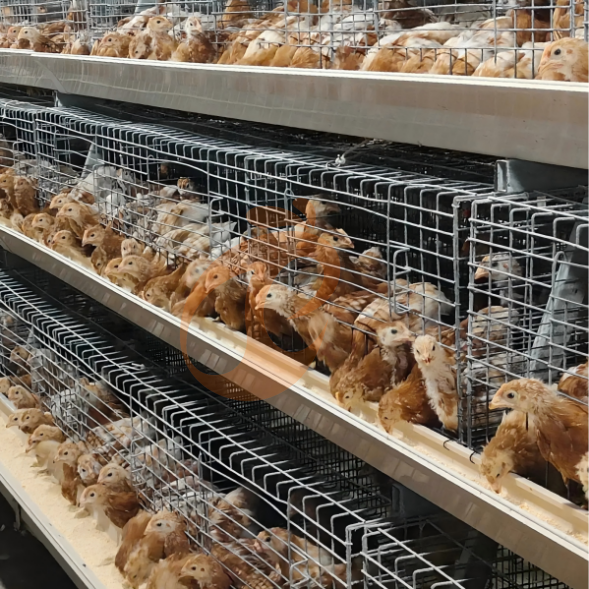

  A-type stepped design, 3–5 tiers, 2 rows per tier
  Unit cage dimensions: Length 150–200 cm, Depth 60–70 cm, Height 40–45 cm
  Each unit houses 10–15 broilers
  Plastic floor mesh: Grid thickness 3–5 mm, mesh size 12–15 mm, wear-resistant, anti-slip, high load-bearing capacity

• Working Principle
  Floor mesh inclined at 7–12° to allow smooth manure shedding
  Chick stage: Plastic floor mesh protects chicks' feet
  Adult stage: Mesh can be removed; chickens stand directly on the metal floor, enhancing durability and cleaning efficiency of the semi automatic A frame manual harvesting broiler battery cage system

(2) Fixed Frame and Support System

Accessories: Bolts, connecting plates, galvanized coating, anti-rust coating, support legs

• Structure
  Frame made of hot-dip galvanized rectangular tubes, thickness 2.5–3.5 mm
  Crossbeam spacing 1.0–2.0 m, support legs adjustable by 5–10 cm

• Working Principle
  Each tier supports ≥180–220 kg, overall service life ≥25 years for the semi automatic A frame manual harvesting broiler battery cage system

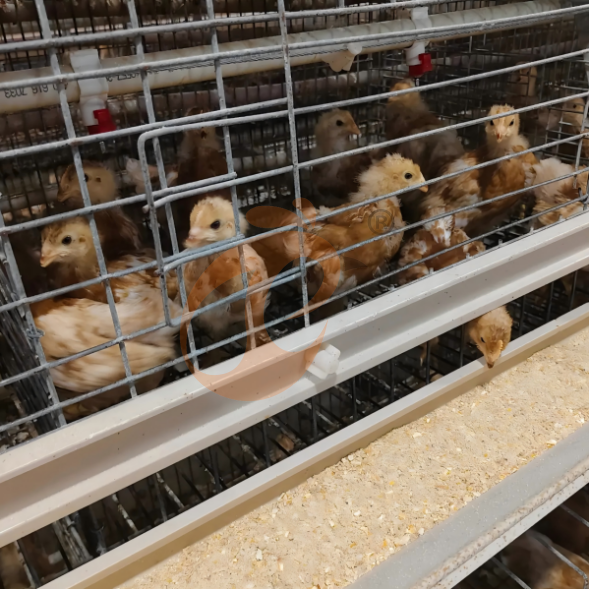

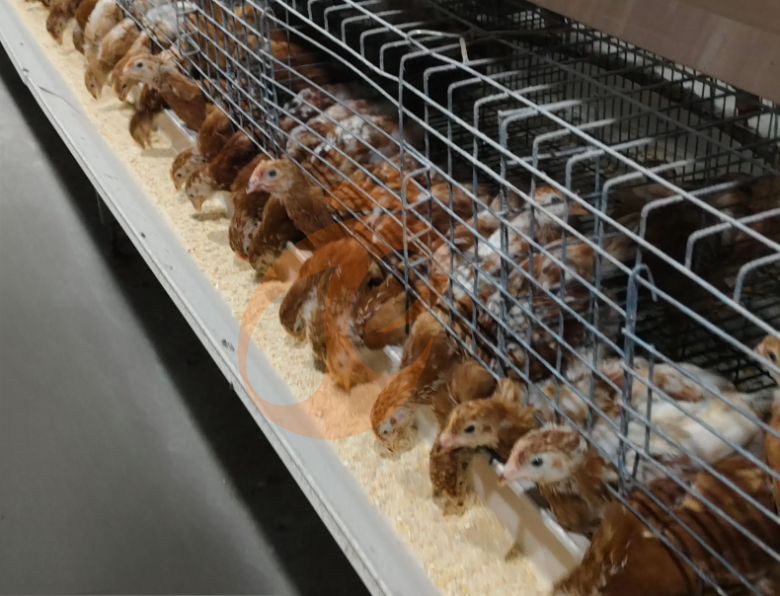

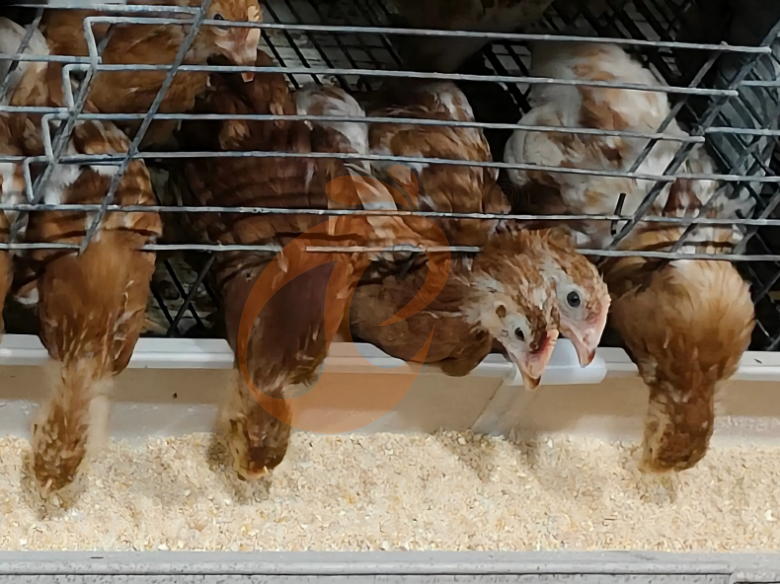

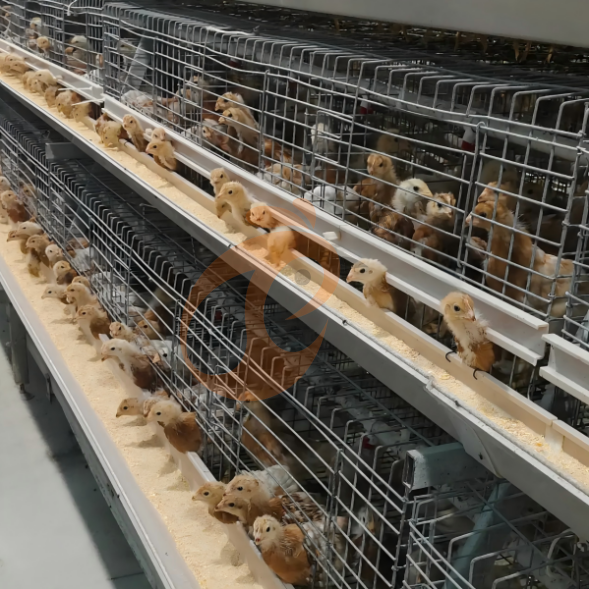

(3) Manual Feeding System

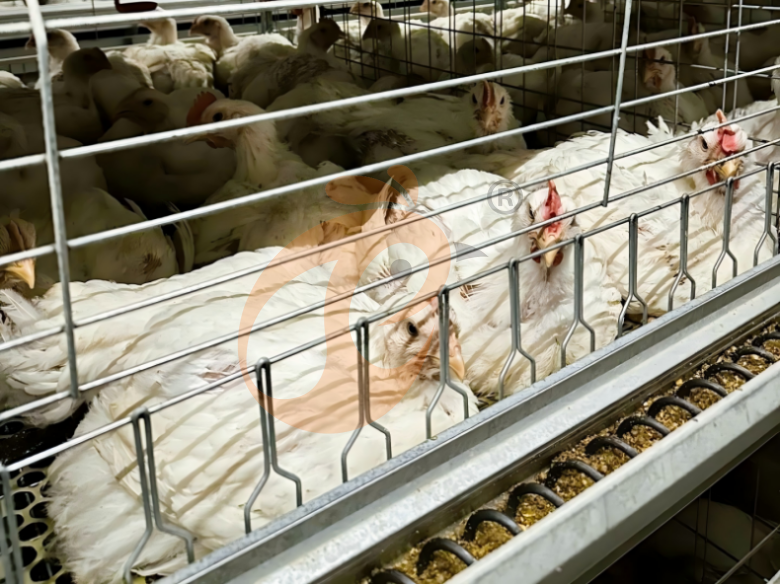

Accessories: Feed trough (galvanized sheet or PVC), trough hooks, anti-spill edges, feed push cart or conveyor, small feed tube (for chicks)

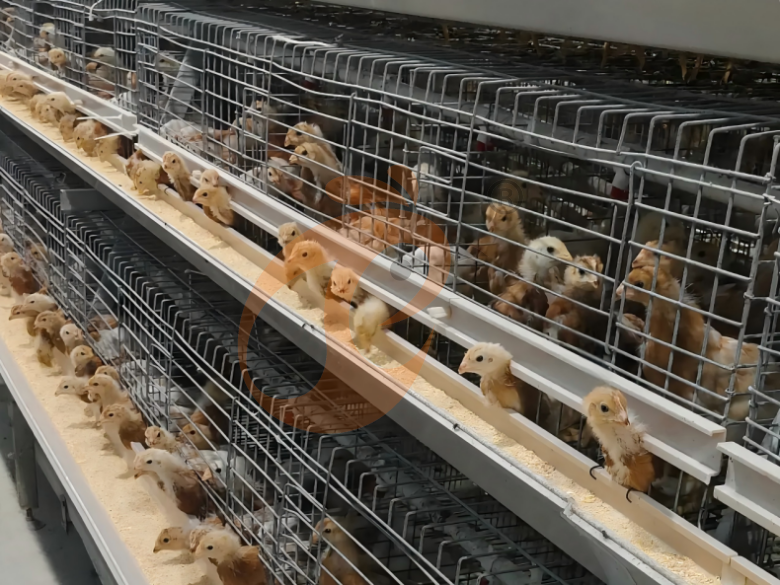

Small Feeder

• Structure

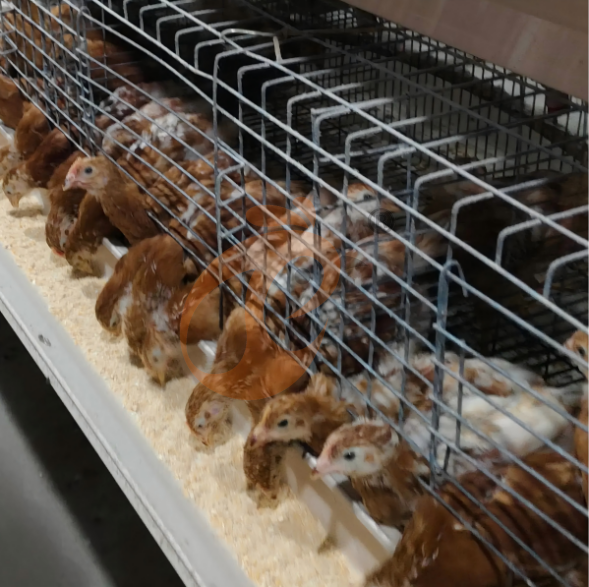

  Standard feed trough length 1.5–2.4 m, depth 12–15 cm

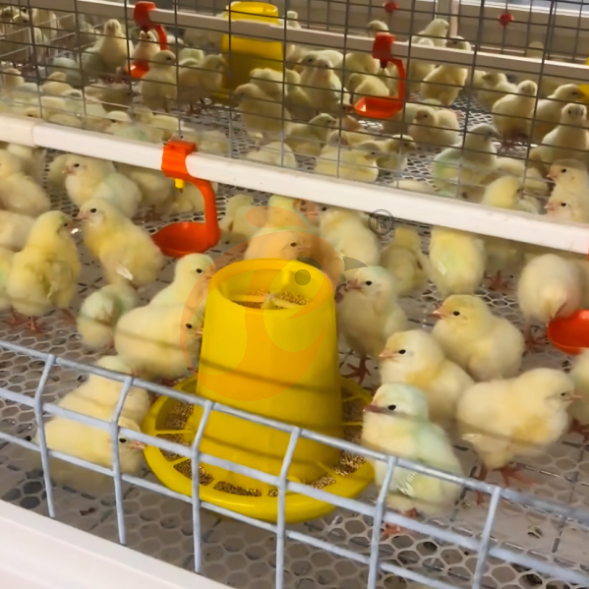

  Small feed tube: Low-level installation for chicks, removable as chickens grow
  Each trough serves 30–40 chickens simultaneously; small feed tube serves 10–15 chicks

• Working Principle
  Chick stage: Small feed tube facilitates feeding, reduces waste, and prevents competition
  Adult stage: Small feed tube removed; standard feed trough used for broilers
  Feed push cart or conveyor improves feed distribution efficiency by 40–60% in the semi automatic A frame manual harvesting broiler battery cage system

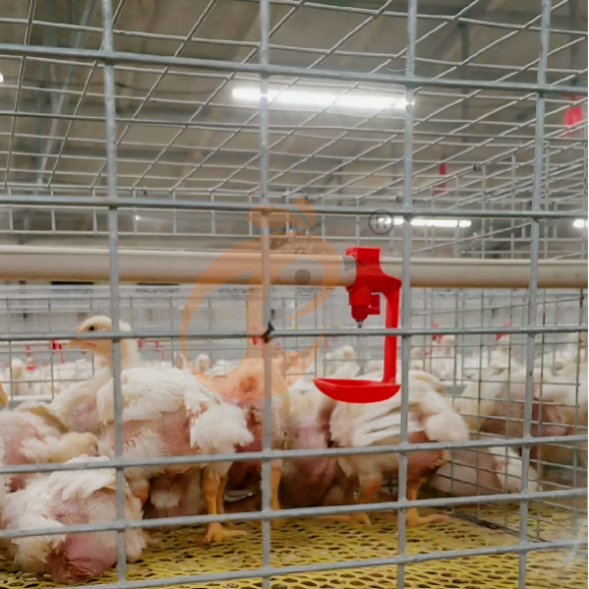

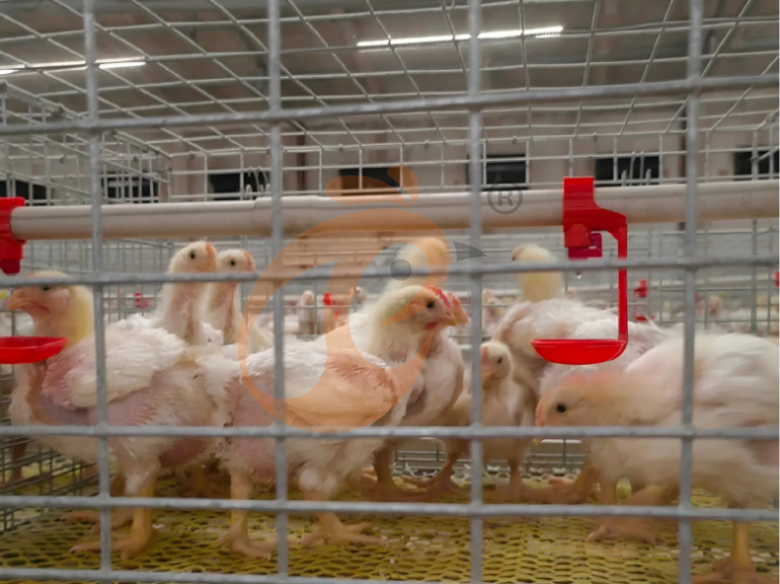

(4) Fully Automatic Drinking System

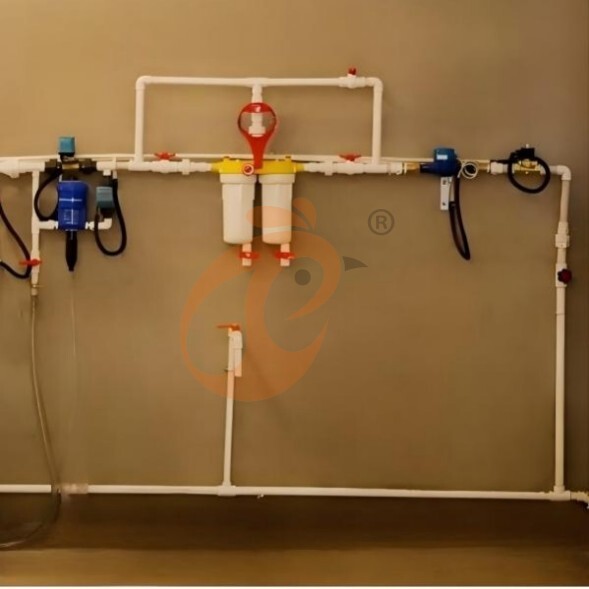

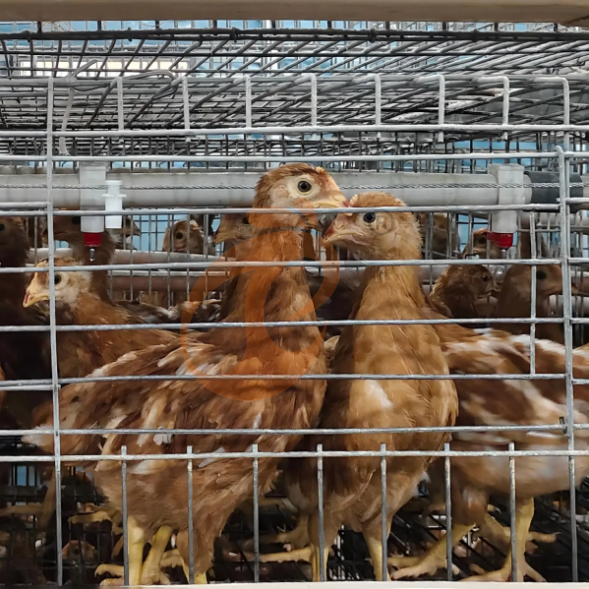

Accessories: Nipple drinkers, PVC pipes (Φ20–25 mm), T-joints, pressure regulator, water tank/pump, filter, low-level nipples for chicks

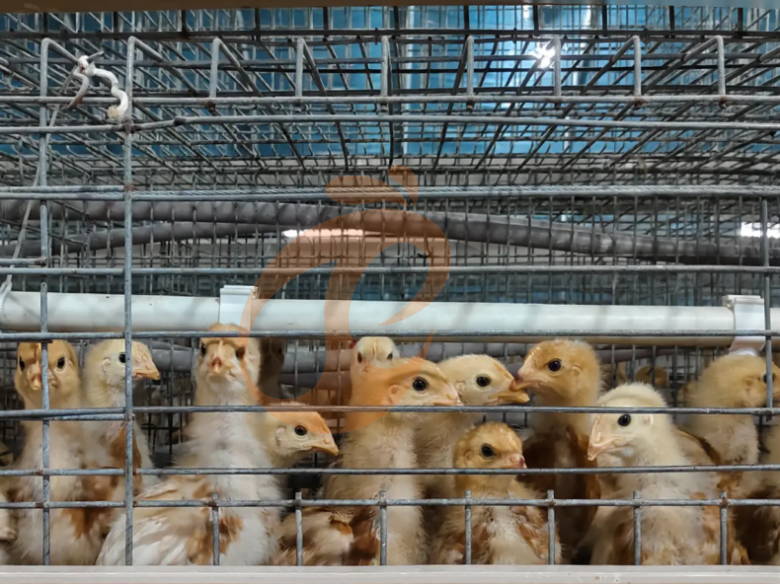

Water Line

• Structure

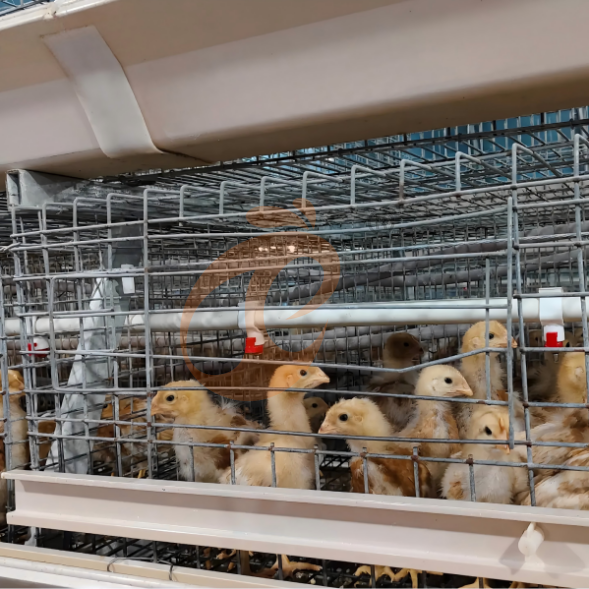

  Each unit equipped with 2–3 standard nipple drinkers, the height is adjustable for chicks
  Water tank capacity 50–100 L, water system is recyclable

• Working Principle
  Chick stage: Low-level nipples installed at 10–12 cm height, flow rate 30–50 ml/min
  Adult stage: Nipple height adjustable to 25–30 cm
  Automatic water supply ensures clean water, cross-contamination rate <5% in the semi automatic A frame manual harvesting broiler battery cage system

(5) Fully Automatic Manure Removal System

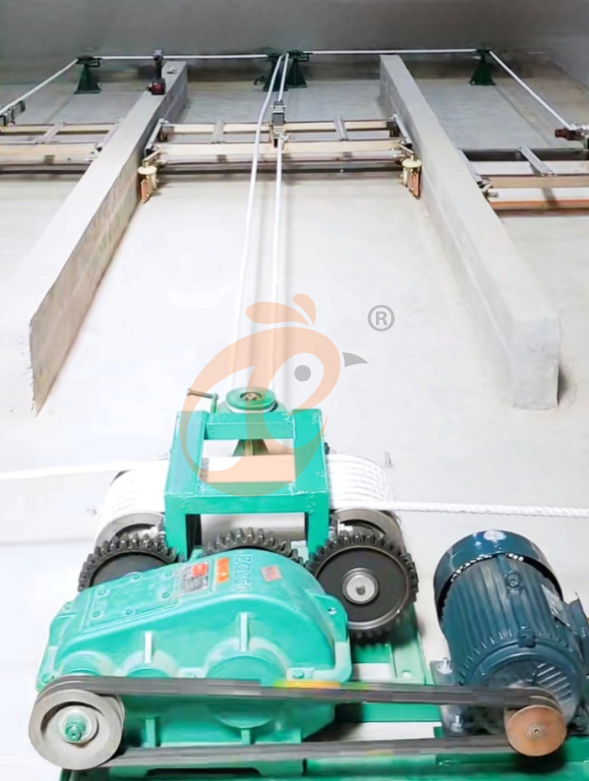

(5-1) Type 1: Scraper Manure System

Accessories: Scraper, drive motor, guide rail, tension device, manure trough or bin

Scrapers Under Cages

• Structure
  Each set has scraper rails installed at the cage bottom, width 1.8–2.4 m; the scraper moves along the rails to push manure into the collection place

• Working Principle
  Automatically operates at scheduled intervals, efficiently collecting manure
  Suitable for high manure volume or where belts cannot be installed
  Reduces ammonia concentration by 30–35%, cleaning efficiency 2–4 times higher than manual removal in the Semi Automatic A Frame Manual Harvesting Broiler Battery Cage System

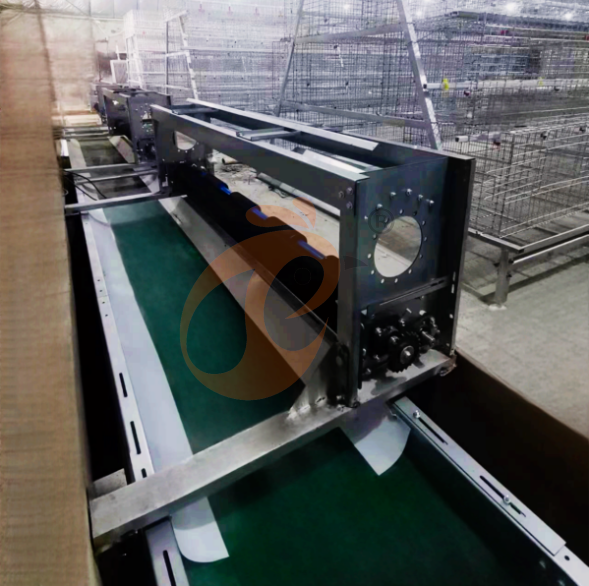

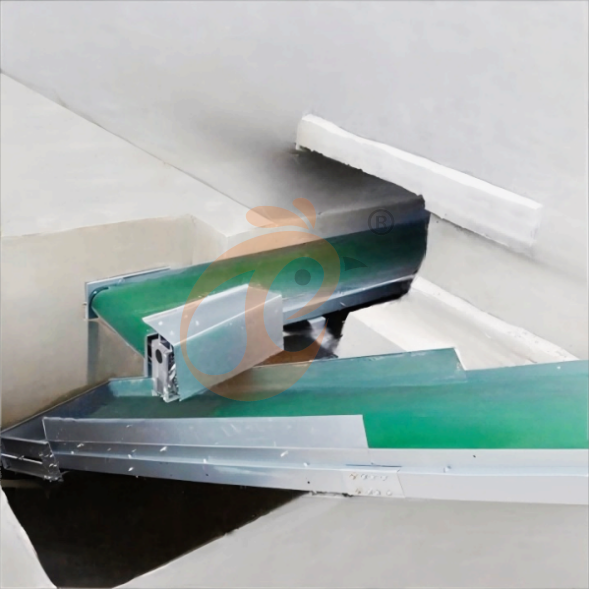

(5-2) Type 2: Manure Belt System

Accessories: Manure belt (PVC/rubber), drive motor, roller, scraper, tension device, manure collection cart

• Structure
  One manure belt per set, width 1.8–2.4 m, thickness 1.0–1.2 mm

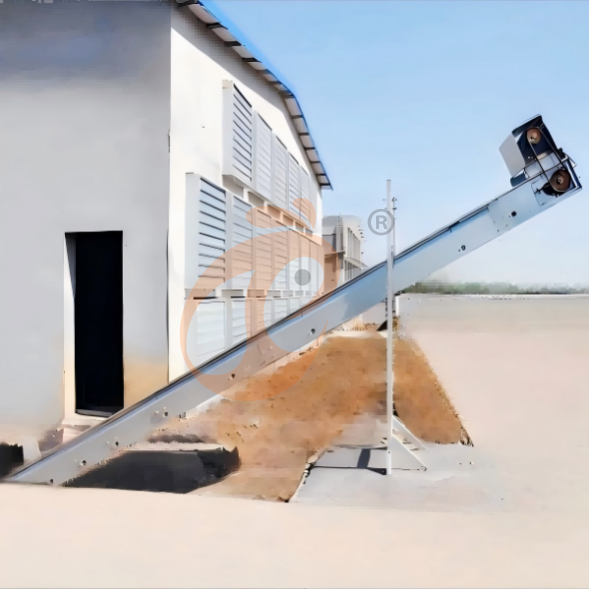

  Drive motor operates periodically to transport manure to the end of the house

• Working Principle
  Manure falls onto the belt and is removed 1–2 times/day
  Efficiency 3–5 times higher than manual removal, ammonia concentration reduced by 40–50%

"Why Choose Semi Automatic A Frame Manual Harvesting Broiler Battery Cage System"

3. Comparison Of Layout, Automation Level, And Typical Flock Size For Different Types Of Broiler Battery Cage System

Fatter

4. Recommendation Farm Management Of Poultry Farm, House And Cage System (selective assembly)

(1) From CCTV to giving order to every house, from date collection to AI data analysis report, abnormal condition detection and alarm system.

(2) Lighting is provided for chickens of all ages, which enhances their immunity and increases their productivity.

(3) One-stop management and control, continuously enhancing farm profits.

(4) Warm device gives a temperature of 28℃-37℃ to baby chicken according to its different age.

(5) Cooling device gives a temperature 18℃-27℃ to older chicken according to its different age.

(6) Humidity device gives a humidity 40%-70% to chicken according to its different age.

Please contact us to give your exact solution according to your breeding quantity and farm condition.
