Quick Viewing Of Types Of Automatic Brooder Battery Cage

Why Choosing Taiyu (HK) Pullet Cage

The Advantage Of Taiyu (HK) Pullet Cage

1. Quality and design of Taiyu (HK) pullet cage: European standards

2. Lifespan of Taiyu (HK)'s pullet cage: 25+ years

3. Delivery from local factory: Hongkong headquarters, branches of China, Nigeria, Tanzania, Ethiopia and Kenya ( depends on you location, we delivery from the nearest factory and warehouse)

Popular Types Of Taiyu (HK) Pullet Cage For Sale

To help you better understanding solution of pullet cage or pullet farm, please watch the following video of farm application

Video 1: Taiyu (HK)'s Turnkey Case Of Pullet Farm

For medium and large-scale pullet farms, this H type cage system combined with environmental control equipment is the ideal solution for efficient and healthy bird growth.

The Equipment List In The Video

1. Feed mill (00:40s)

2. H type 4 tiers of pullet cage system (00:10s)

3. Automatic system based on cages: drinking, feeding and manure removal system (00:13s, 00:48s, 01:42)

4. Environmental control system: automatic house lighting, house warm device and house ventilation system (01:21s, 01:24s. 01:33s)

Tips For Purchasing

• NO. 2 and NO. 3 are required equipment.

• NO. 1 and NO. 4 are optional equipment, normally the temperate and frigid climates use them, countries from tropical climates as appropriate.

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Video 2: Taiyu (HK) A Type Of Pullet Cage

This A type cage system is ideal for small and medium-scale pullet farms, offering an economical and cost-effective solution for efficient management and healthy bird growth.

The Equipment List In The Video

1. A type 4 tiers of pullet cage system

2. Automatic drinking system

Tips For System Upgrate

To be fully automatic system, farmers could choose

• Feeding and manure scraper or belt removal system.

• Automatic house lighting, house warm device and house ventilation system (the temperate and frigid climates use them, countries from tropical climates as appropriate)

24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Taiyu (HK) Group - The Trusted Choice For Modern Poultry Farming Solutions

Here is a 15 mins video showing Taiyu (HK) headquarters, poultry farm equipment, production department, QC, logistics department, customer cases...

Global Presence & Strong Service Network

Headquartered in Hong Kong, with branches in China, Nigeria, Tanzania, Ethiopia, and Kenya, supported by a complete global pre-sales and after-sales service system.

Feed Technology Support Advantage

Free feed formula provided, backed by 20 years of feed mill experience, helping reduce cost and improve performance.

Factory Direct Price Advantage

Factory direct supply, no middlemen, ensuring more competitive pricing and better value for your investment.

One-Stop Turnkey Poultry Farming Solutions

Providing 100–1,000,000 bird turnkey projects, including farm design, equipment supply, and smart farm integration.

Trusted By 3,000+ Farms Worldwide

Serving 3,000+ poultry farms globally with proven turnkey project experience.

Our design and quality of automatic A frame brooder battery cage system and poultry farm equipment based on European and USA standard.

24 hours Reception WhatsApp NO. : +8618830120193.

All pictures (or videos) of this pages are the application of our automatic A frame brooder battery cage system in customers' poultry farm. Our technicians have rich experience in localizing poultry farms.

Why Innovation In Poultry Farming Matters

Modern poultry farming is evolving rapidly, with automation no longer a luxury but a necessity.

The automatic A frame brooder battery cage system has become a cornerstone for medium to large-scale farms, typically housing between 10,000 and 50,000 layers.

Farms adopting this system not only improve operational efficiency but also achieve superior bird welfare and environmental sustainability.

Beyond basic feeding and egg collection, today’s systems incorporate cutting-edge data monitoring, environmental management, and economic optimization—paving the way for a new era in poultry production.

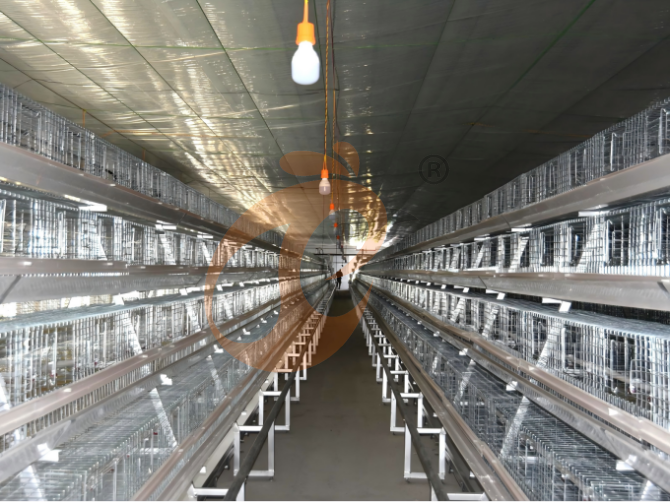

"European Standard Automatic A Frame Brooder Battery Cage System"

1. Concise Specifications Of Automatic A Frame Brooder Battery Cage System

For your reference only, the following data is estimated, The exact data is based on the actual needs of the project and customer requirements, or our exact quotation.

3 Tiers

3 Tiers, 4 Tiers, 5 Tiers

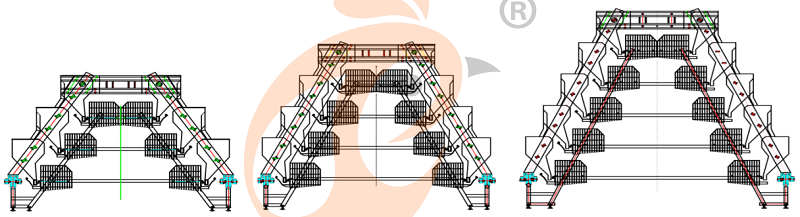

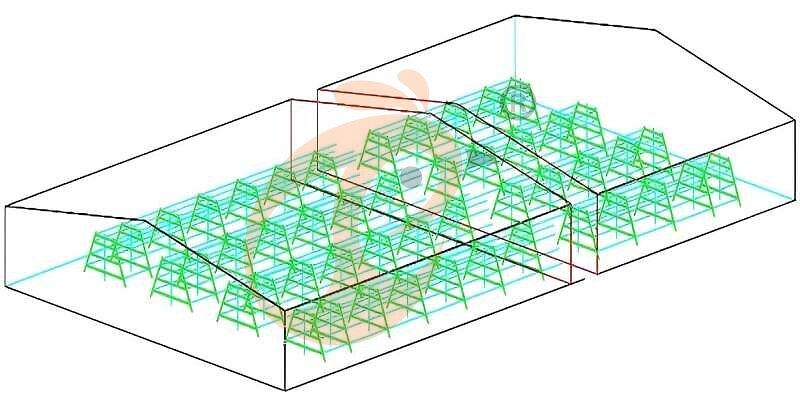

Layout Of Brooder Battery Cage System In Poultry House

Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

2. Dimensions Of Automatic A Frame Brooder Battery Cage System

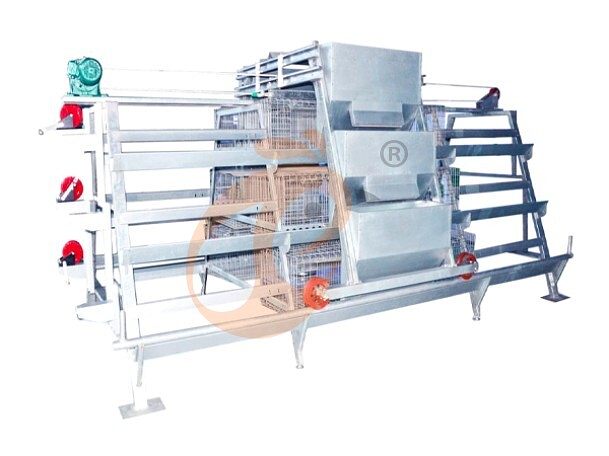

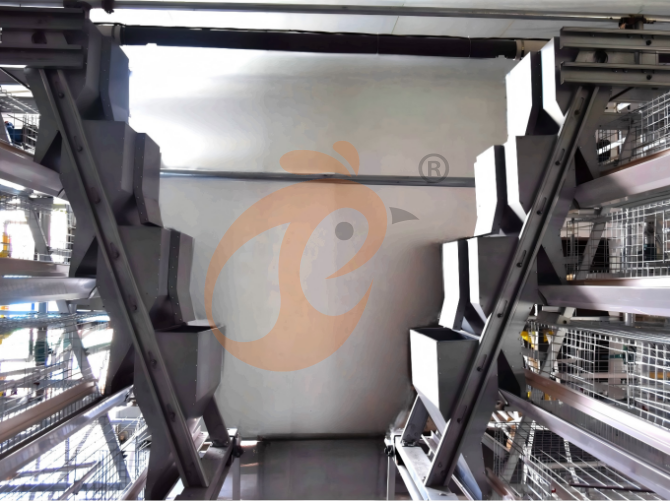

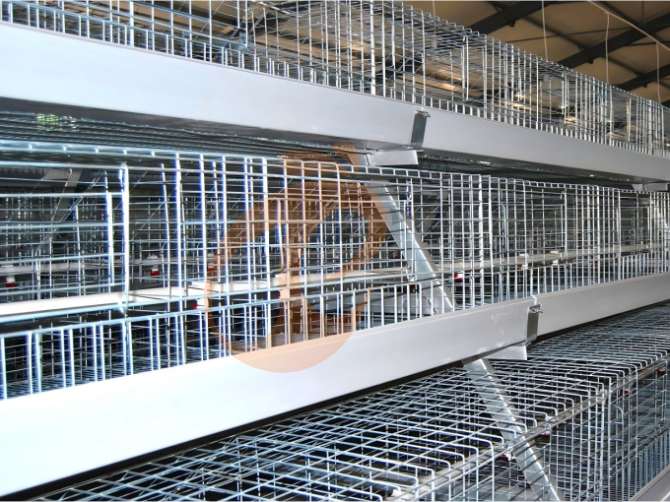

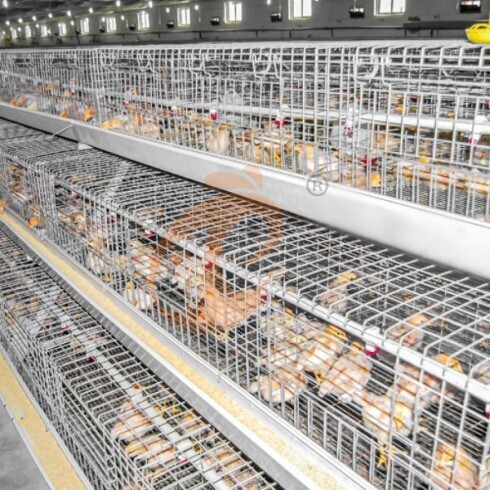

3. Structure Of Automatic A Frame Brooder Battery Cage System

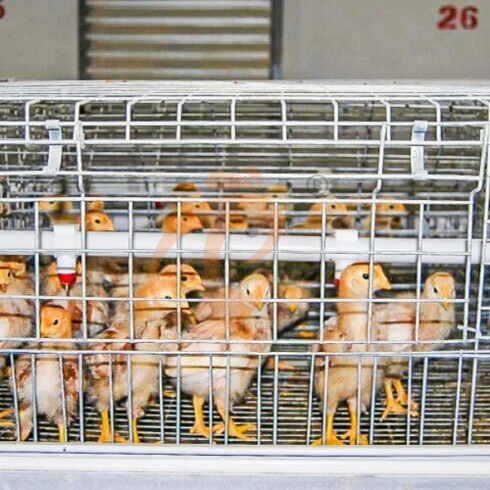

(1) Cage System

Heavy Galvanized Material

• Accessories: Cage doors (sliding or bolt type), partition grids, support clips, anti-escape latches, plastic floor mesh (for chicks)

• Structure:

• A-shaped stepped design, 3–5 tiers

• Single cage unit size: 190–200 cm long, 50–60 cm deep, 34–40 cm high

• Each unit accommodates 8–12 growing chickens

• Plastic floor mesh: 3–5 mm thick, 12–15 mm hole diameter, flexible, wear-resistant, anti-slip

• Working Principle:

• Floor mesh inclined 7–12° for smooth feces removal

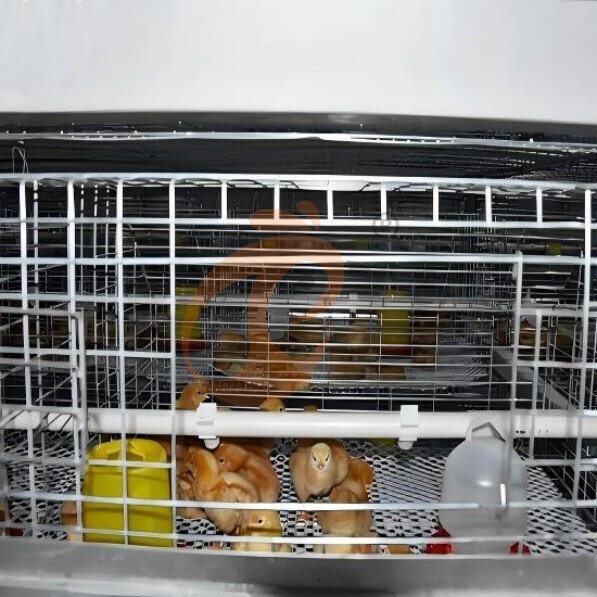

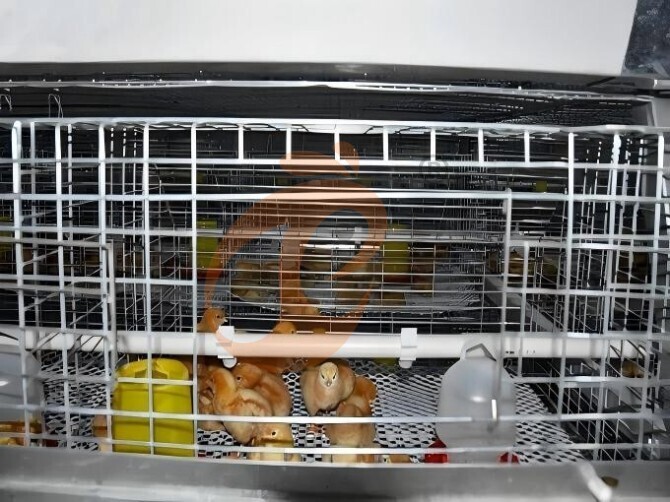

• Chick stage: plastic mesh protects feet

• Growing stage: mesh removable, chickens stand on metal mesh or cage bottom for durability and easier cleaning

• Layered rearing: in a 3-tier cage, chicks are initially placed on the 1st and 2nd tiers, leaving one tier empty; as they grow, chickens are evenly distributed throughout the cage to maximize space and comfort

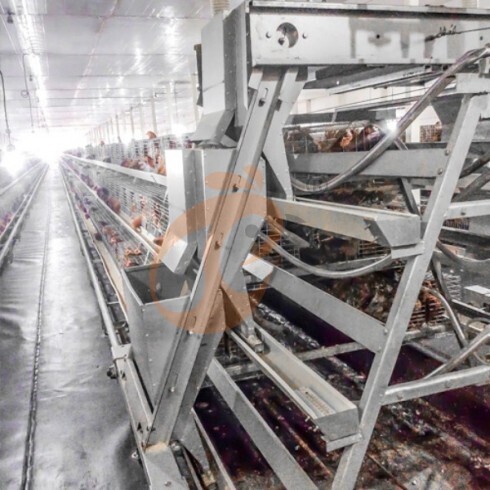

(2) Frame and Support System

Stronger Cage Frame

• Accessories: Bolts, connecting plates, galvanized coating, rust-proof coating, adjustable support feet, hot-dip galvanized flat iron

• Structure:

• Frame made of hot-dip galvanized rectangular tubes combined with hot-dip galvanized flat iron, thickness 2.5–3.0 mm

• Beam spacing: 1.0–2.2 m; adjustable support feet: 5–10 cm

• Working Principle:

• Single-tier load capacity ≥150–200 kg

• Overall lifespan ≥25 years

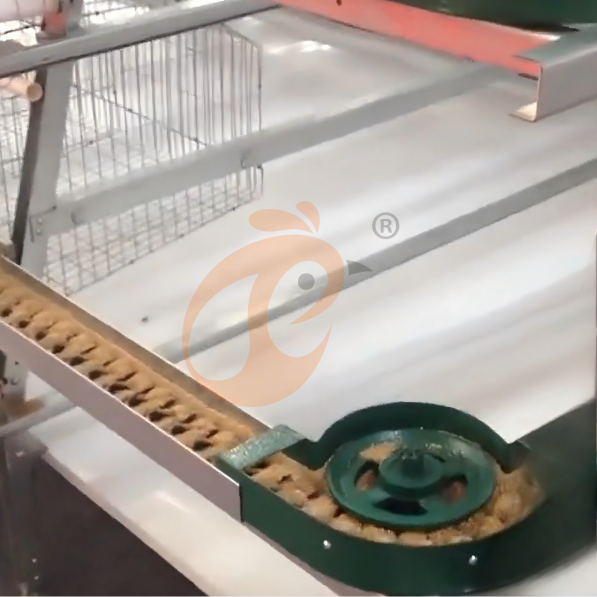

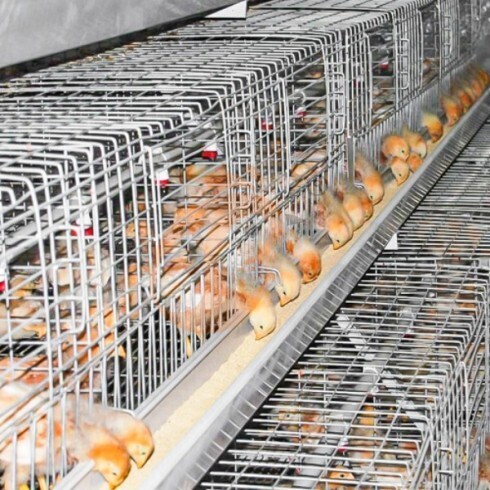

(3) Fully Automatic Feeding System

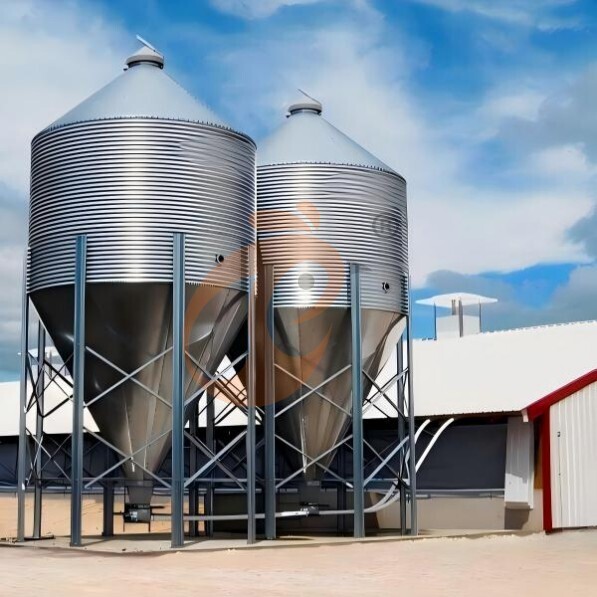

Feed Storage Silo

• Accessories: Spiral feed conveyor, chain feed conveyor, feed troughs (galvanized sheet or PVC), hooks, anti-spill edges, small feed tubes (for chicks), adjustable brackets, controllers, drive motors

• Structure:

• Spiral type: suitable for short-distance or small-scale feed distribution

• Chain type: suitable for long-distance, multi-tier feed distribution

• Standard feed trough length: 1.5–2.0 m, depth: 10–12 cm

• Small feed tube: low-positioned for chick feeding

• Each trough feeds 30–40 chickens simultaneously; small feed tube for 10–15 chicks

• Working Principle:

• Chick stage: small feed tubes facilitate feeding, prevent competition and waste

• Growing stage: small feed tubes removed, standard troughs used

• Spiral or chain conveyor automatically distributes feed

• Feed distribution efficiency increased by 80–100%, reducing labor intensity

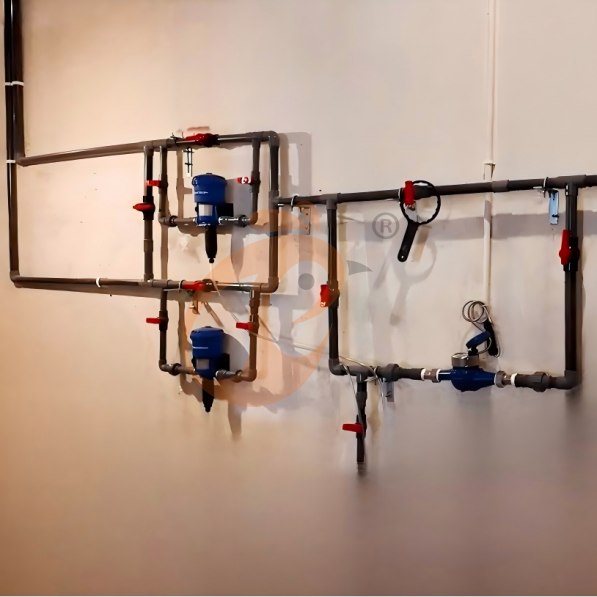

(4) Fully Automatic Drinking System

• Accessories: Nipple drinkers (standard and low-position for chicks), PVC pipes (Φ20–25 mm), T-joints, pressure regulator, water tank/booster pump (optional), filters, mounting brackets

• Structure:

• Each unit equipped with 2–3 standard nipple drinkers; 2 low-position nipples per layer for chicks

• Pressure regulator ensures stable water flow according to flock size

• Working Principle:

• Chick stage: low-position nipples 10–12 cm high, flow 30–50 ml/min

• Growing stage: nipple height adjustable to 25–30 cm

• Automatic water supply ensures clean water, cross-contamination <5%

(5) Fully Automatic Manure Removal System

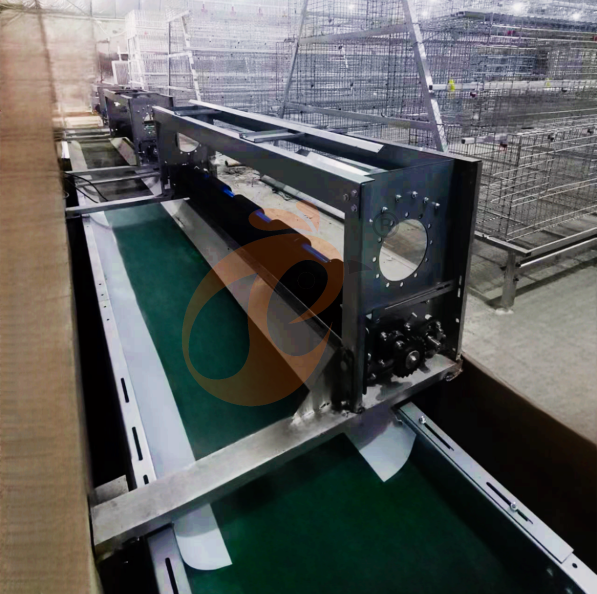

• Type 1 Longitudinal Conveyor Belt

• Accessories: Conveyor belt (PVC/rubber), drive motor, rollers, tension devices, manure cart

• Structure:

Installed under cage units, width 1.8–2.4 m, thickness 1.0–1.2 mm

• Working Principle:

1. Motor runs periodically, cleaning 1–2 times/day

2. Efficiency 3–5 times higher than manual cleaning

3. Reduces ammonia concentration by ~40%

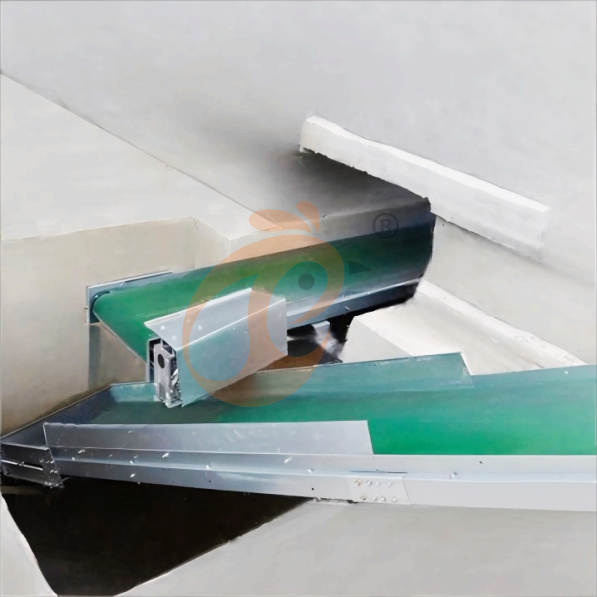

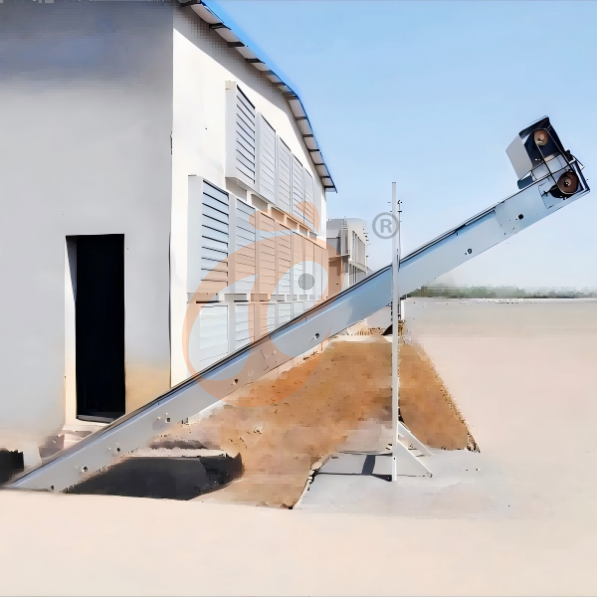

• Transverse Conveyor Belt

• Accessories: Transverse belt, drive motor, rollers, collection area

• Structure:

Manure from longitudinal belt is transferred to transverse belt for centralized collection

• Working Principle:

1. Centralized collection facilitates manure handling

2. Improves overall cleaning efficiency

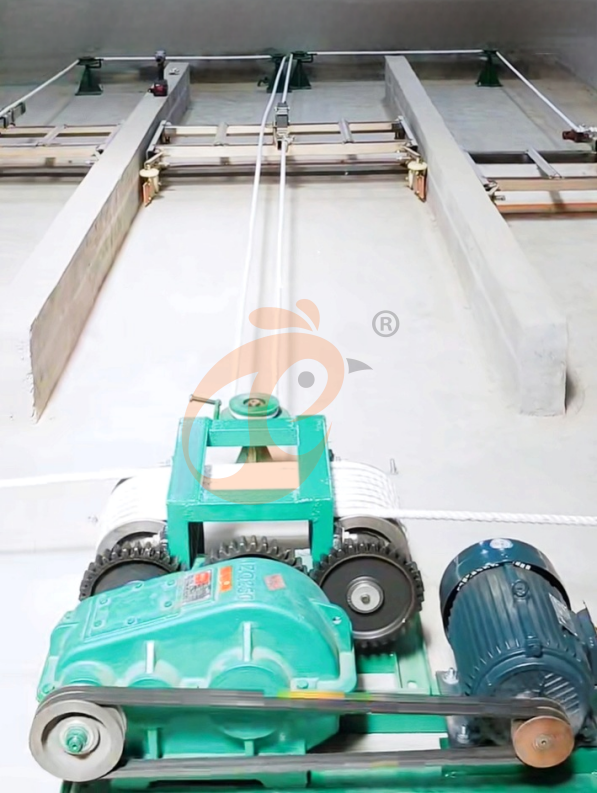

• Type 2 Scraper Removal

Scrapers Under Cages

• Accessories: Scraper, drive motor, guide rail, tension device, collection tray or hopper

• Structure:

Cage bottom has a manure gutter; scraper moves in the gutter, pushing feces into the collection tray

• Working Principle:

1. Timed automatic operation

2. Efficiency 2–4 times higher than manual cleaning

3. Reduces ammonia concentration by ~30–35%

"The Advantages Of Automatic A Frame Brooder Battery Cage System"

4. Smart Data Monitoring Of Precision Farming

Automation's true power lies in its integration with real-time data collection and analysis. The automatic A frame brooder battery cage system is equipped with a network of IoT sensors that continuously monitor key parameters.

(1) Parameters

This data feeds into cloud-based farm management software, allowing remote monitoring and predictive alerts that prevent health issues before they escalate.

Farmers can adjust environmental controls remotely or receive automatic system corrections based on sensor data. This reduces mortality and enhances productivity.

(2) Related Farm Management Of Poultry Farm, House And Cage System (selective assembly)

(1) From CCTV to giving order to every house, from date collection to AI data analysis report, abnormal condition detection and alarm system.

(2) Lighting is provided for chickens of all ages, which enhances their immunity and increases their productivity.

(3) One-stop management and control, continuously enhancing farm profits.

(4) Warm device gives a temperature of 28℃-37℃ to baby chicken according to its different age.

(5) Cooling device gives a temperature 18℃-27℃ to older chicken according to its different age.

(6) Humidity device gives a humidity 40%-70% to chicken according to its different age.

Please contact us to give your exact solution according to your breeding quantity and farm condition.

Visit our products to learn more...

"Why Choose Us"

5. Our Brief Introduction

(1) Headquarter and branchs are studying with each other, keeping continuous communication with Europe and USA.

(2) Our design and quality of poultry farm equipment and chicken poultry cage based on EURO standard.

(3) Offer modern AI management poultry farm consulting and turnkey project.

• Hong Kong Headquarter Taiyu Industrial Group CO., LTD

• China Hebei Best Machinery And Equipment CO., LTD

• Nigeria Vanke Machinery And Equipment CO., LTD

• Tanzania Best Machinery And Equipment CO., LTD

• Ethiopia Best Hebei Machinery Manufacturing PLC

(4) Offer Modern Poultry Farm Scheme

We use artificial intelligence to chicken cage, poultry farm equipment

it makes poultry farm more intelligent and modern, such as

1. AI-Powered recyclable poultry farm

2. AI-Managed automatic chicken cage system

3. AI-Managed poultry farm equipment

(5) Reason To Choose Us

• Every year, we go to Europe to explore new technologies and upgrade our equipment

• 10%-30% lower price based on European standard and quality

• With our own factory, we offer private customization services

• Professional engineers from both domestic and international sources, along with an installation team, ensuring worry-free after-sales service.

• Every year many customers visit us, and we visit customers and their farms too, welcome you!

(6) Contact Us Now

For fast response, feel free to contact us directly via WhatsApp at +8618830120193, please provide the following information:

• Your full name

• Phone number (including WhatsApp ID)

• Email address

• Farm location (country/region)

• Total land area of your farm

• Type of poultry: layer, broiler, or pullet

• Expected bird capacity

• Equipment you're interested in (poultry farm turnkey project, chicken cages, name of poultry farm equipment.)
