Quick Viewing Of Types Of Automatic Brooder Battery Cage

Why Choosing Taiyu (HK) Pullet Cage

The Advantage Of Taiyu (HK) Pullet Cage

1. Quality and design of Taiyu (HK) pullet cage: European standards

2. Lifespan of Taiyu (HK)'s pullet cage: 25+ years

3. Delivery from local factory: Hongkong headquarters, branches of China, Nigeria, Tanzania, Ethiopia and Kenya ( depends on you location, we delivery from the nearest factory and warehouse)

Popular Types Of Taiyu (HK) Pullet Cage For Sale

To help you better understanding solution of pullet cage or pullet farm, please watch the following video of farm application

Video 1: Taiyu (HK)'s Turnkey Case Of Pullet Farm

For medium and large-scale pullet farms, this H type cage system combined with environmental control equipment is the ideal solution for efficient and healthy bird growth.

The Equipment List In The Video

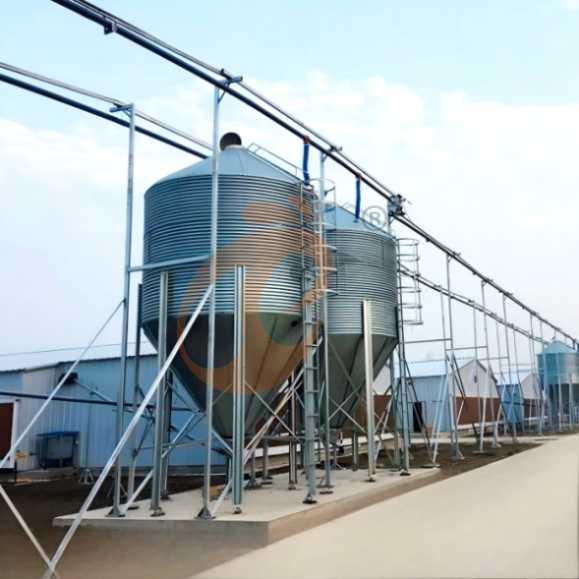

1. Feed mill (00:40s)

2. H type 4 tiers of pullet cage system (00:10s)

3. Automatic system based on cages: drinking, feeding and manure removal system (00:13s, 00:48s, 01:42)

4. Environmental control system: automatic house lighting, house warm device and house ventilation system (01:21s, 01:24s. 01:33s)

Tips For Purchasing

• NO. 2 and NO. 3 are required equipment.

• NO. 1 and NO. 4 are optional equipment, normally the temperate and frigid climates use them, countries from tropical climates as appropriate.

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Video 2: Taiyu (HK) A Type Of Pullet Cage

This A type cage system is ideal for small and medium-scale pullet farms, offering an economical and cost-effective solution for efficient management and healthy bird growth.

The Equipment List In The Video

1. A type 4 tiers of pullet cage system

2. Automatic drinking system

Tips For System Upgrate

To be fully automatic system, farmers could choose

• Feeding and manure scraper or belt removal system.

• Automatic house lighting, house warm device and house ventilation system (the temperate and frigid climates use them, countries from tropical climates as appropriate)

24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Taiyu (HK) Group - The Trusted Choice For Modern Poultry Farming Solutions

Here is a 15 mins video showing Taiyu (HK) headquarters, poultry farm equipment, production department, QC, logistics department, customer cases...

Global Presence & Strong Service Network

Headquartered in Hong Kong, with branches in China, Nigeria, Tanzania, Ethiopia, and Kenya, supported by a complete global pre-sales and after-sales service system.

Feed Technology Support Advantage

Free feed formula provided, backed by 20 years of feed mill experience, helping reduce cost and improve performance.

Factory Direct Price Advantage

Factory direct supply, no middlemen, ensuring more competitive pricing and better value for your investment.

One-Stop Turnkey Poultry Farming Solutions

Providing 100–1,000,000 bird turnkey projects, including farm design, equipment supply, and smart farm integration.

Trusted By 3,000+ Farms Worldwide

Serving 3,000+ poultry farms globally with proven turnkey project experience.

Our design and quality of automatic H frame brooder battery cage system and poultry farm equipment based on European and USA standard.

24 hours Reception WhatsApp NO. : +8618830120193.

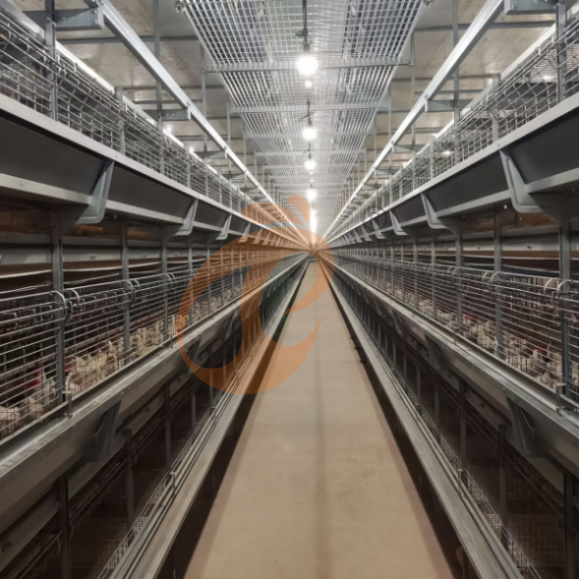

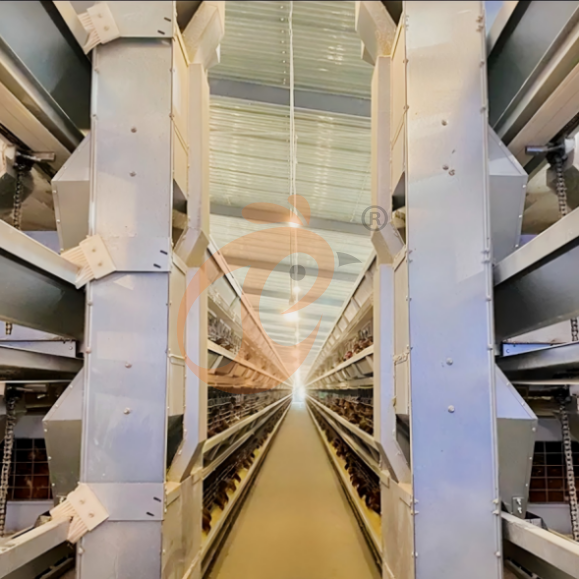

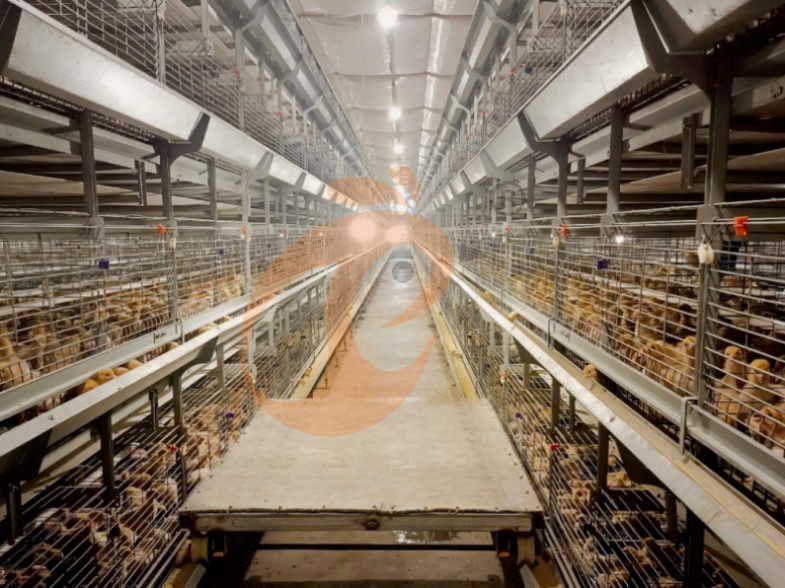

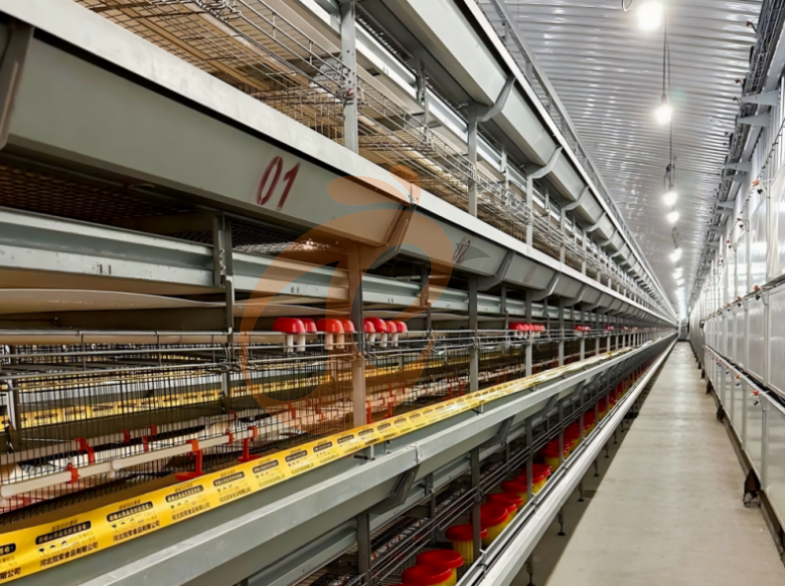

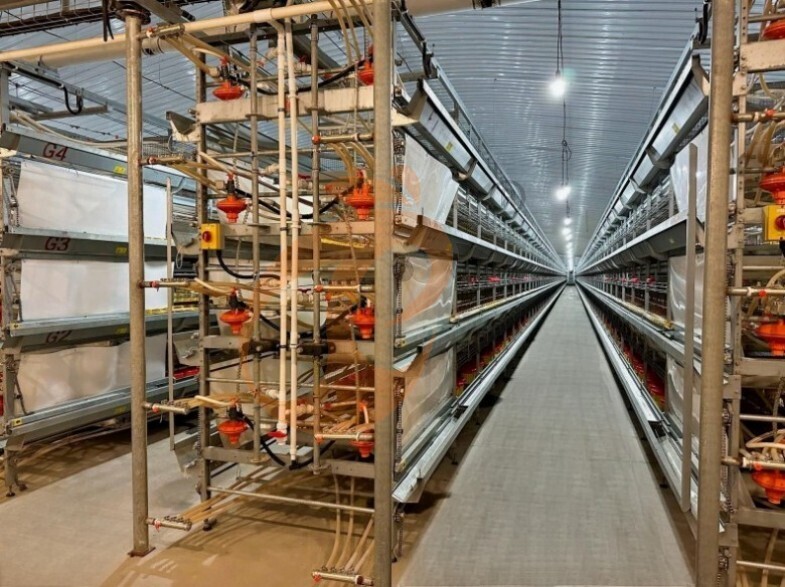

All pictures (or videos) of this pages are the application of our automatic H frame brooder battery cage system in customers' poultry farm. Our technicians have rich experience in localizing poultry farms.

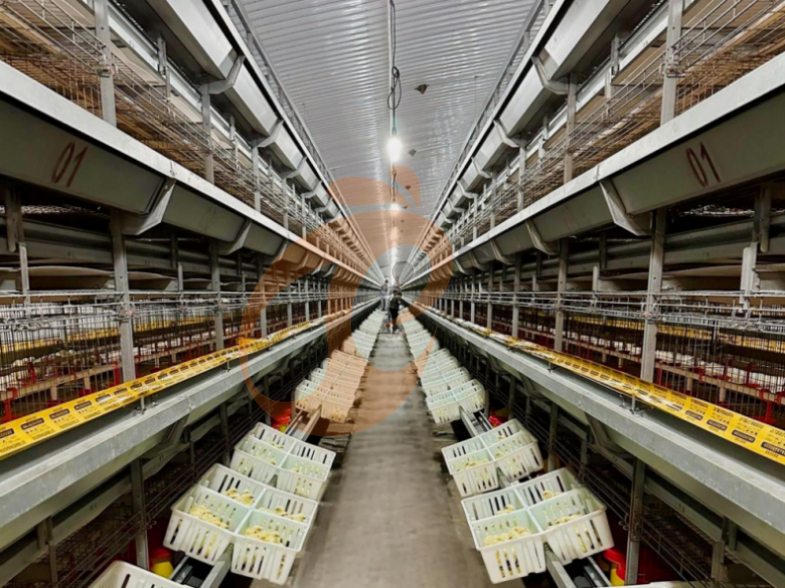

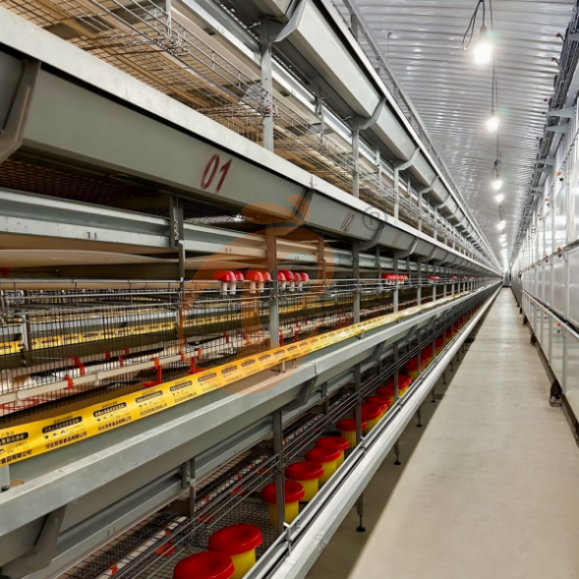

Walk into a modern H-type layer house and you're looking at a vertical, data-driven farm: stacked cage tiers stretching skyward, belt conveyors for feed and eggs, automated manure removal, and a control system logging everything.

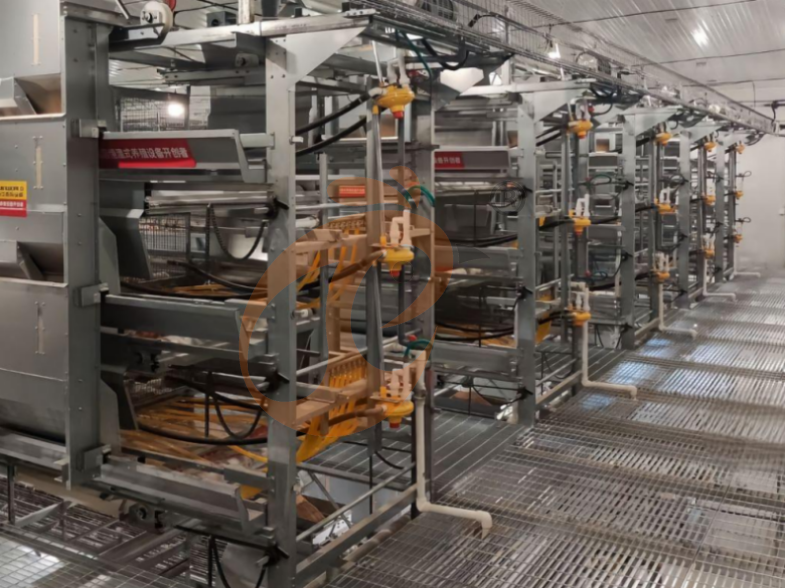

At the heart of this operation lies the automatic H frame brooder battery cage system, designed for precision and efficiency.

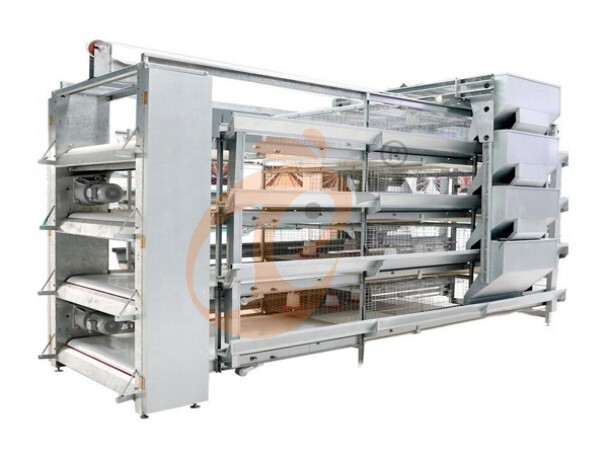

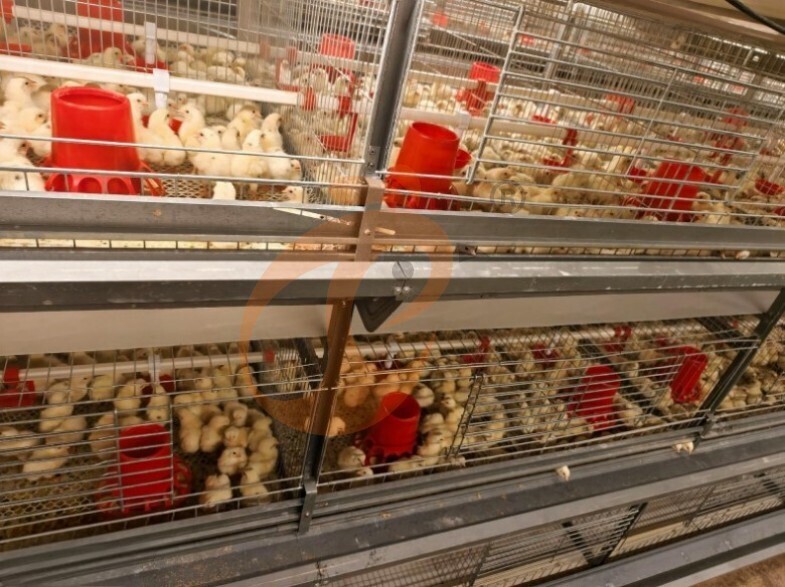

"European Standard Automatic H Frame Brooder Battery Cage System"

1. Concise Specifications Of Automatic H Frame Brooder Battery Cage System

For your reference only, the following data is estimated, The exact data is based on the actual needs of the project and customer requirements, or our exact quotation.

4 Tiers

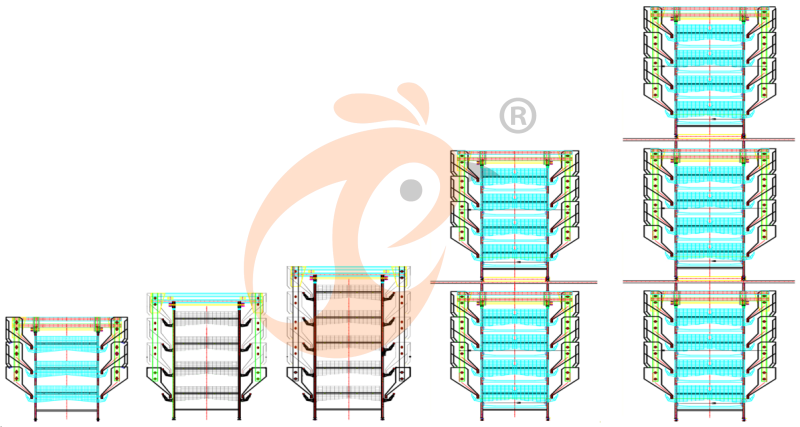

3 Tiers, 4 Tiers, 5 Tiers, 8 Tiers, 12 Tiers

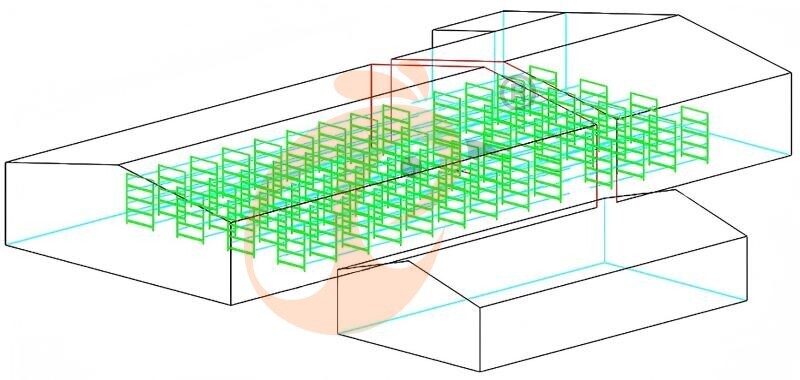

Layout Of Brooder Battery Cage System In Poultry House

(1) Technical Specifications

Data is for reference only. Swipe horizontally to view full table.

(2) Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

"Key Advantages Of The Automatic H Frame Brooder Battery Cage System"

2. Structure Of Automatic H Frame Brooder Battery Cage System

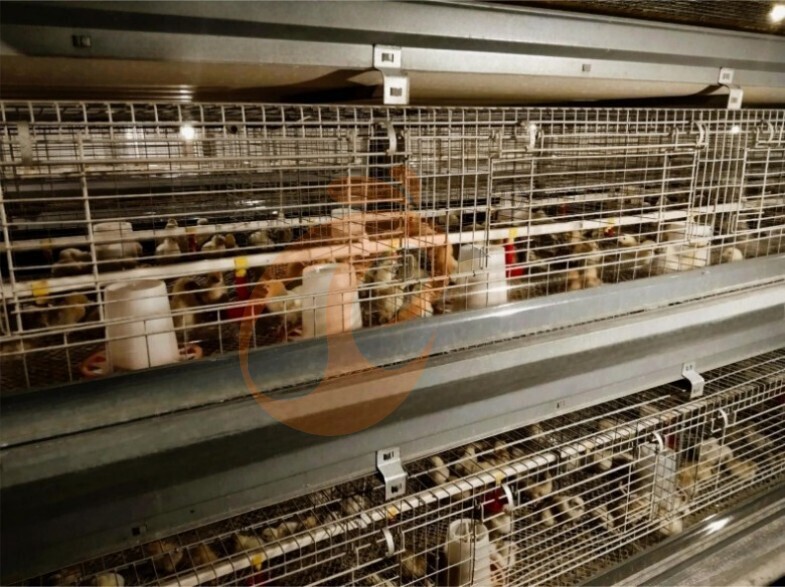

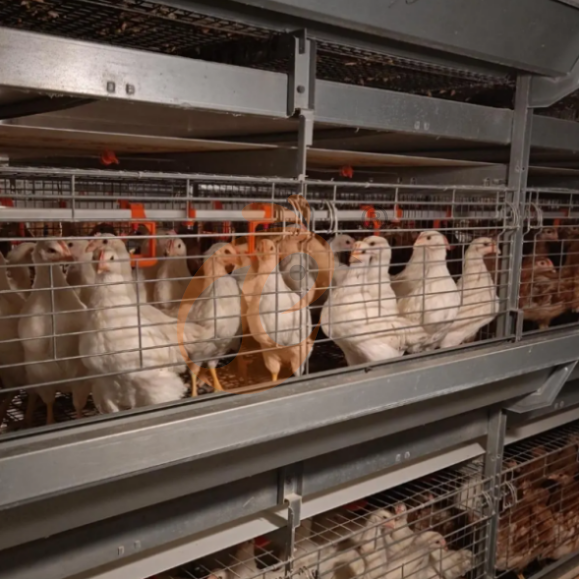

(1) Cage System

Bottom Yellow Mesh

• Accessories: Cage doors (sliding or bolt type), partition grids, support clips, anti-escape latches, plastic floor mesh (for chicks), bolts, connecting plates, galvanized coating, anti-rust coating

• Structure:

• H-type multi-tier horizontal layout, 3–16 tiers

• Single cage unit size: 100–120 cm long, 60–70 cm deep, 40–45 cm high

• Each unit can house 10–15 growing chickens

• Plastic floor mesh: 3–5 mm thick, 12–15 mm hole diameter, flexible, wear-resistant, and anti-slip

• Working Principle:

• Floor mesh inclined at 7–12° for smooth feces removal

• Chick stage: plastic mesh protects the feet of chicks

• Grower stage: plastic mesh can be removed, chickens stand directly on the metal mesh or cage floor, improving durability and cleaning efficiency

(2) Frame and Support System

• Accessories: Hot-dip galvanized rectangular tubes, hot-dip galvanized flat iron, bolts, connecting plates, galvanized coating, anti-rust coating, adjustable support feet

• Structure:

• Frame constructed from hot-dip galvanized rectangular tubes combined with hot-dip galvanized flat iron, thickness 2.5–3.0 mm

• Beam spacing: 1.2–1.5 m; adjustable support feet: 5–10 cm

• Working Principle:

• Single-tier load capacity ≥180–220 kg

• Overall service life ≥25 years

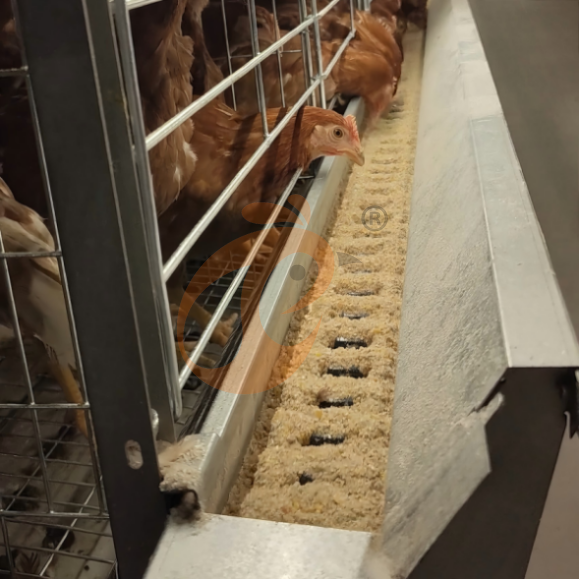

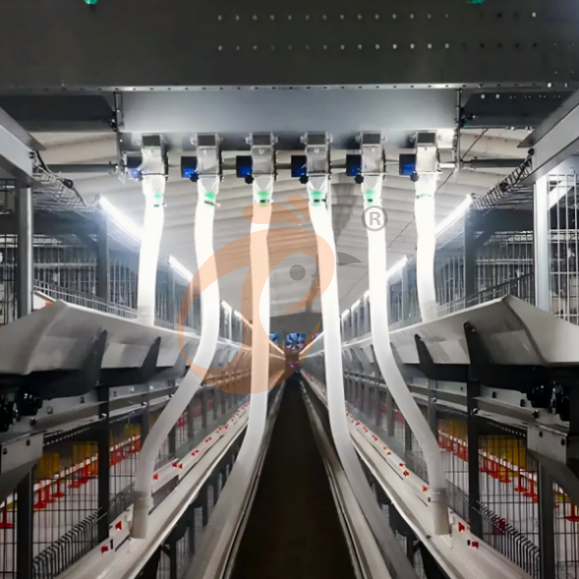

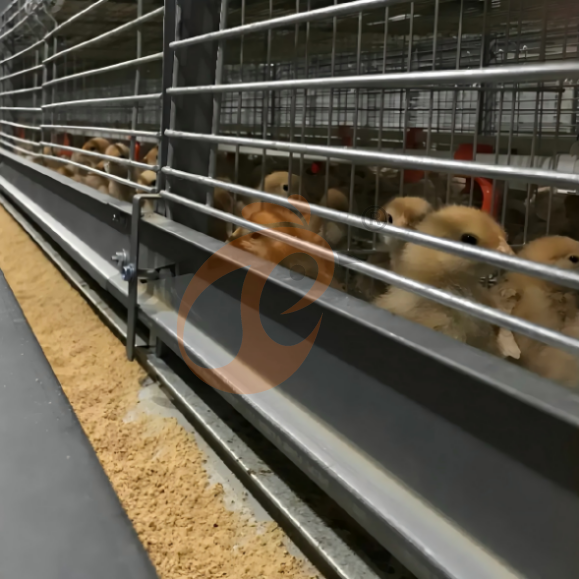

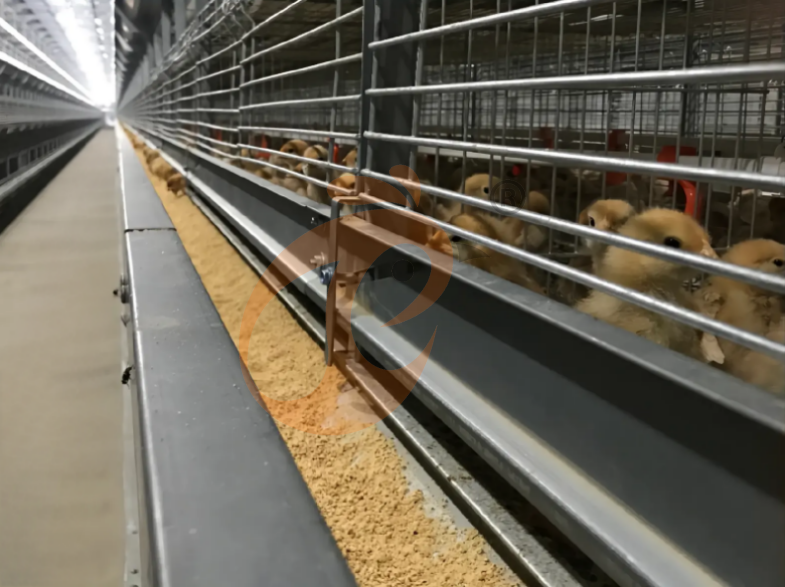

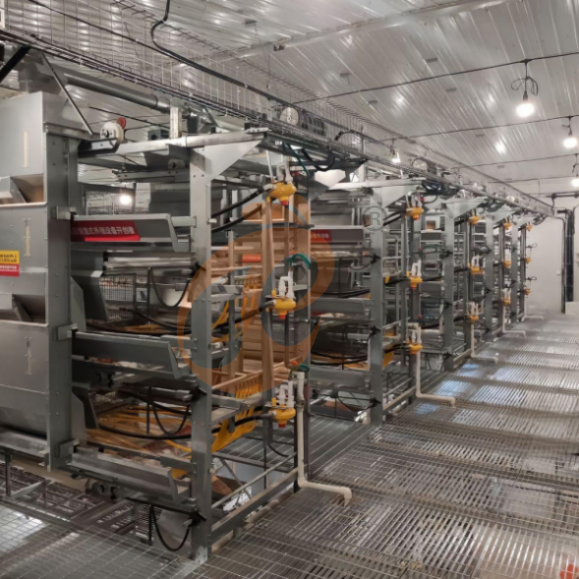

(3) Fully Automatic Feeding System

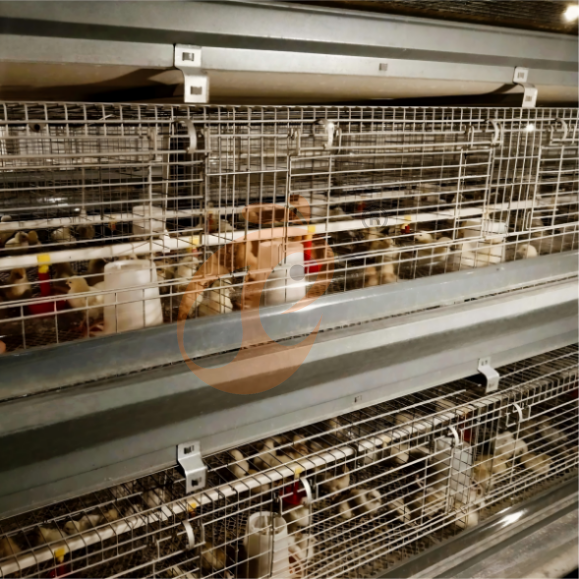

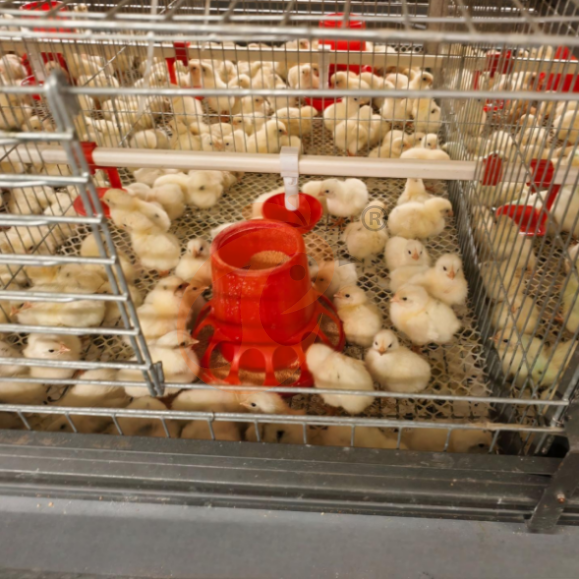

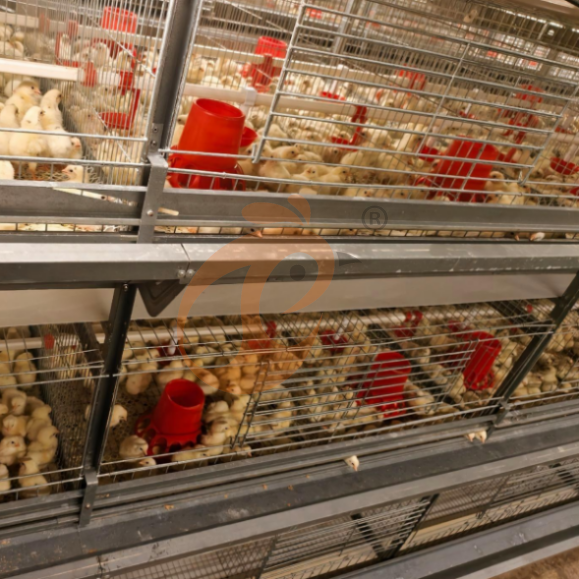

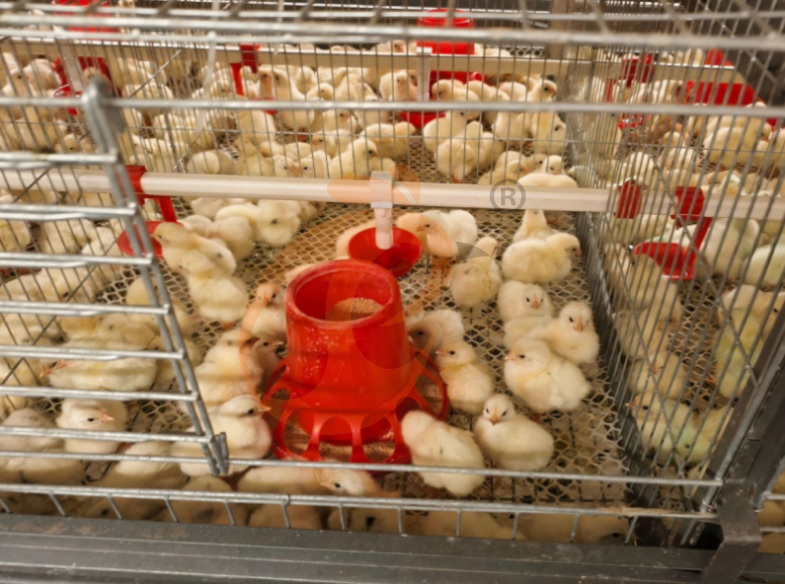

Small Feeder For Baby Chicken

• Accessories: Automatic feed screw conveyor (spiral type), or chain conveyor (chain type), feed troughs (galvanized sheet or PVC), trough hooks, anti-spill edges, small feed tubes (for chicks), adjustable brackets, controller, drive motor

• Structure:

• Spiral type: suitable for short-distance or small-scale feed delivery

• Chain type: suitable for long-distance and multi-tier feed delivery

• Standard trough size: 1.8–2.2 m long, 12–15 cm deep

• Small feed tubes are installed at low positions for chicks

• Each trough can feed 35–45 chickens simultaneously; small feed tubes serve 12–15 chicks

• Working Principle:

• Chick stage: small feed tubes facilitate feeding, preventing waste and competition

• Grower stage: small feed tubes can be removed, standard troughs are used

• Spiral or chain conveyors automatically distribute feed

• Increases feed distribution efficiency by 80–100%, reducing labor intensity significantly

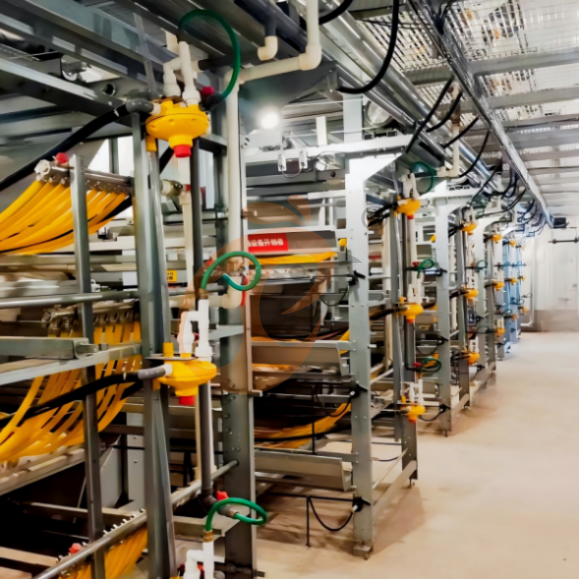

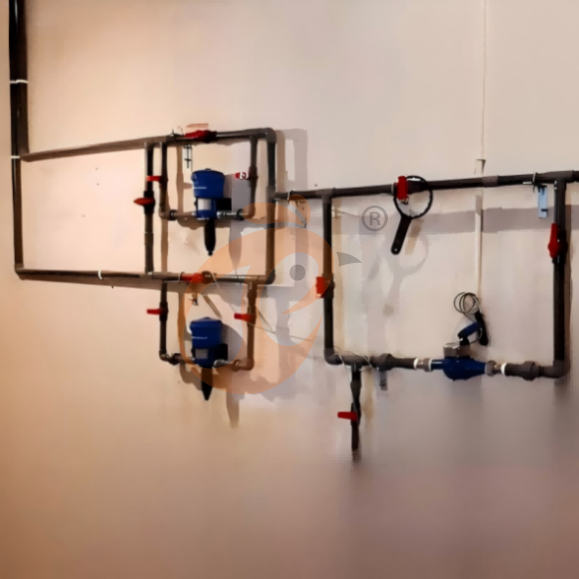

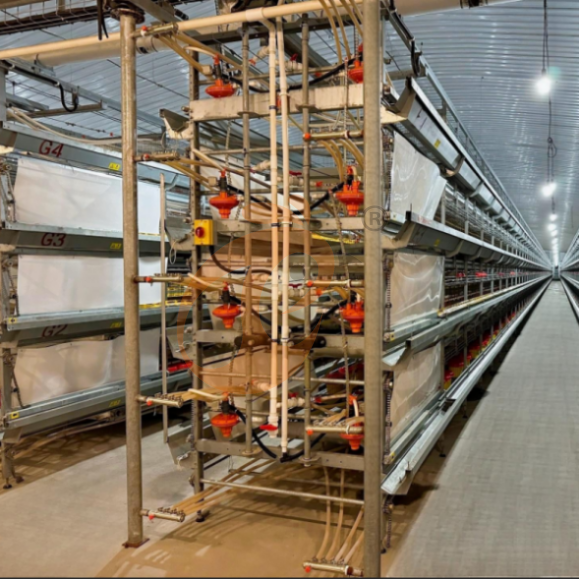

(4) Fully Automatic Drinking System

• Accessories: Nipple drinkers (standard and low-position for chicks), PVC pipes (Φ20–25 mm), T-joints, pressure regulator, optional water tank/booster pump, filter, mounting brackets, and fixing clips

• Structure:

• Each unit equipped with 2–3 standard nipple drinkers; 2 additional low-position nipples per tier for chicks

• Pressure regulator ensures stable water pressure and adjustable flow according to flock size

• Working Principle:

• Chick stage: low-position nipples set at 10–12 cm, flow rate 30–50 ml/min

• Grower stage: nipple height adjustable to 25–30 cm

• Automatic water supply keeps water clean and reduces cross-contamination rate to <5%

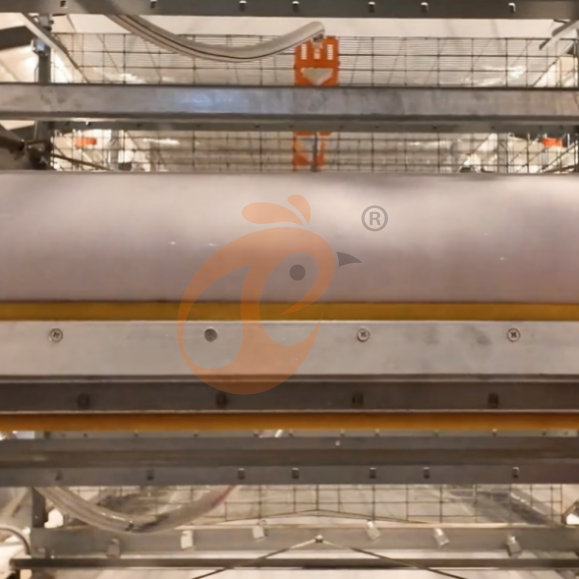

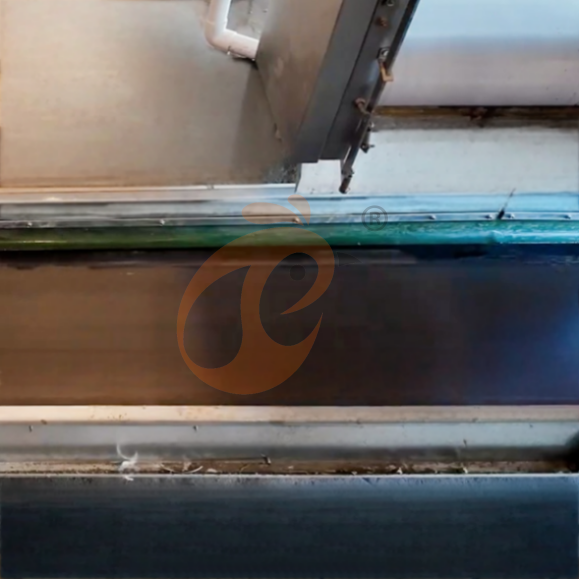

(5) Fully Automatic Manure Removal System

• Accessories: Longitudinal manure belts (PVC/rubber), transverse conveyor belt, drive motor, rollers, scrapers, tension devices, manure cart or collection pit, guide rails (for scraper type, optional)

• Structure:

• One longitudinal manure belt installed under each cage tier, 0.7–0.9 m wide, 1.0–1.2 mm thick

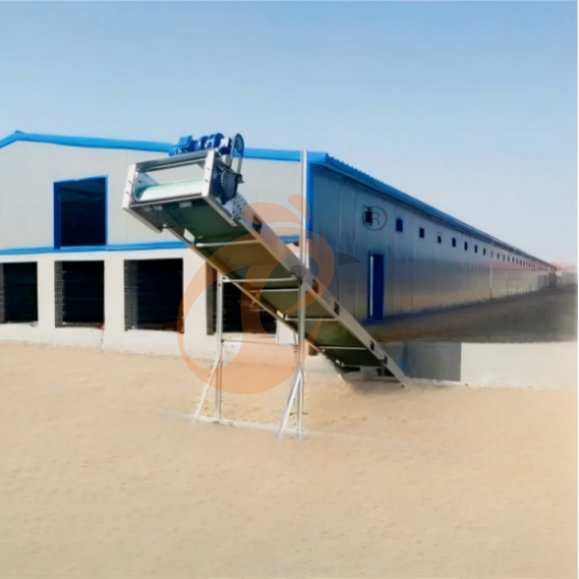

• Manure is transferred from longitudinal belts onto a transverse conveyor belt, which carries it to the end of the poultry house

• Drive motor runs at set intervals to ensure continuous manure transport

• Working Principle:

• Cleaning performed 1–2 times per day

• Manure is first collected onto the transverse conveyor, then delivered to the central manure collection area

• Cleaning efficiency is 3–5 times higher than manual methods

• Reduces ammonia concentration by approximately 40%

"Essential Tips For Managing Poultry Farms With Automatic H Frame Brooder Battery Cage Systems"

3. Recommendation Farm Management Of Poultry Farm, House And Cage System (selective assembly)

(1) From CCTV to giving order to every house, from date collection to AI data analysis report, abnormal condition detection and alarm system.

(2) Lighting is provided for chickens of all ages, which enhances their immunity and increases their productivity.

(3) One-stop management and control, continuously enhancing farm profits.

(4) Warm device gives a temperature of 28℃-37℃ to baby chicken according to its different age.

(5) Cooling device gives a temperature 18℃-27℃ to older chicken according to its different age.

(6) Humidity device gives a humidity 40%-70% to chicken according to its different age.

Please contact us to give your exact solution according to your breeding quantity and farm condition.
