Quick Viewing Of Types Of Semi-Automatic Brooder Battery Cage

Why Choosing Taiyu (HK) Pullet Cage

The Advantage Of Taiyu (HK) Pullet Cage

1. Quality and design of Taiyu (HK) pullet cage: European standards

2. Lifespan of Taiyu (HK)'s pullet cage: 25+ years

3. Delivery from local factory: Hongkong headquarters, branches of China, Nigeria, Tanzania, Ethiopia and Kenya ( depends on you location, we delivery from the nearest factory and warehouse)

Popular Types Of Taiyu (HK) Pullet Cage For Sale

To help you better understanding solution of pullet cage or pullet farm, please watch the following video of farm application

Video 1: Taiyu (HK)'s Turnkey Case Of Pullet Farm

For medium and large-scale pullet farms, this H type cage system combined with environmental control equipment is the ideal solution for efficient and healthy bird growth.

The Equipment List In The Video

1. Feed mill (00:40s)

2. H type 4 tiers of pullet cage system (00:10s)

3. Automatic system based on cages: drinking, feeding and manure removal system (00:13s, 00:48s, 01:42)

4. Environmental control system: automatic house lighting, house warm device and house ventilation system (01:21s, 01:24s. 01:33s)

Tips For Purchasing

• NO. 2 and NO. 3 are required equipment.

• NO. 1 and NO. 4 are optional equipment, normally the temperate and frigid climates use them, countries from tropical climates as appropriate.

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Video 2: Taiyu (HK) A Type Of Pullet Cage

This A type cage system is ideal for small and medium-scale pullet farms, offering an economical and cost-effective solution for efficient management and healthy bird growth.

The Equipment List In The Video

1. A type 4 tiers of pullet cage system

2. Automatic drinking system

Tips For System Upgrate

To be fully automatic system, farmers could choose

• Feeding and manure scraper or belt removal system.

• Automatic house lighting, house warm device and house ventilation system (the temperate and frigid climates use them, countries from tropical climates as appropriate)

24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Taiyu (HK) Group - The Trusted Choice For Modern Poultry Farming Solutions

Here is a 15 mins video showing Taiyu (HK) headquarters, poultry farm equipment, production department, QC, logistics department, customer cases...

Global Presence & Strong Service Network

Headquartered in Hong Kong, with branches in China, Nigeria, Tanzania, Ethiopia, and Kenya, supported by a complete global pre-sales and after-sales service system.

Feed Technology Support Advantage

Free feed formula provided, backed by 20 years of feed mill experience, helping reduce cost and improve performance.

Factory Direct Price Advantage

Factory direct supply, no middlemen, ensuring more competitive pricing and better value for your investment.

One-Stop Turnkey Poultry Farming Solutions

Providing 100–1,000,000 bird turnkey projects, including farm design, equipment supply, and smart farm integration.

Trusted By 3,000+ Farms Worldwide

Serving 3,000+ poultry farms globally with proven turnkey project experience.

Our design and quality of semi automatic H frame brooder battery cage system and poultry farm equipment based on European and USA standard.

24 hours Reception WhatsApp NO. : +8618830120193.

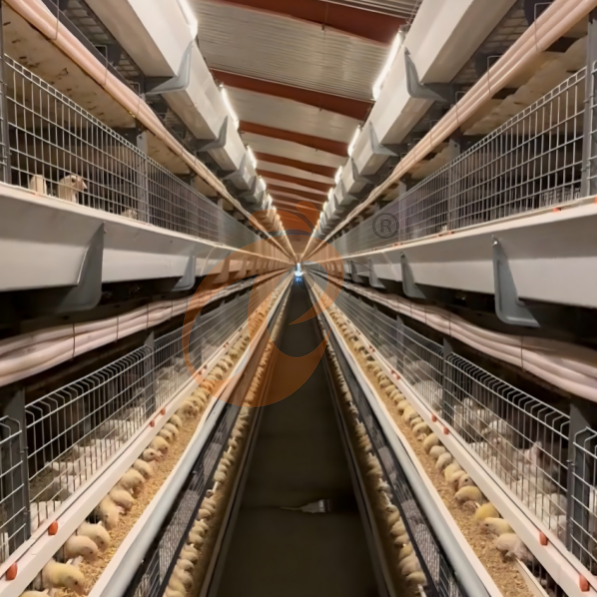

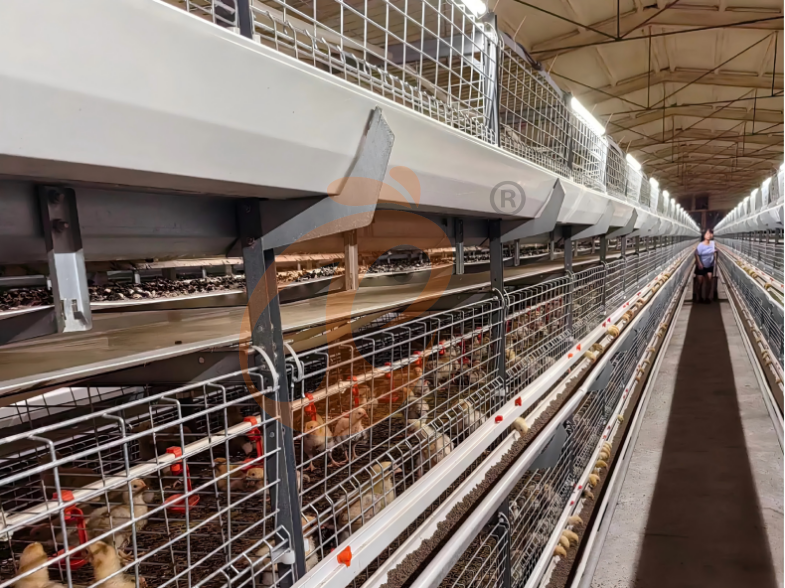

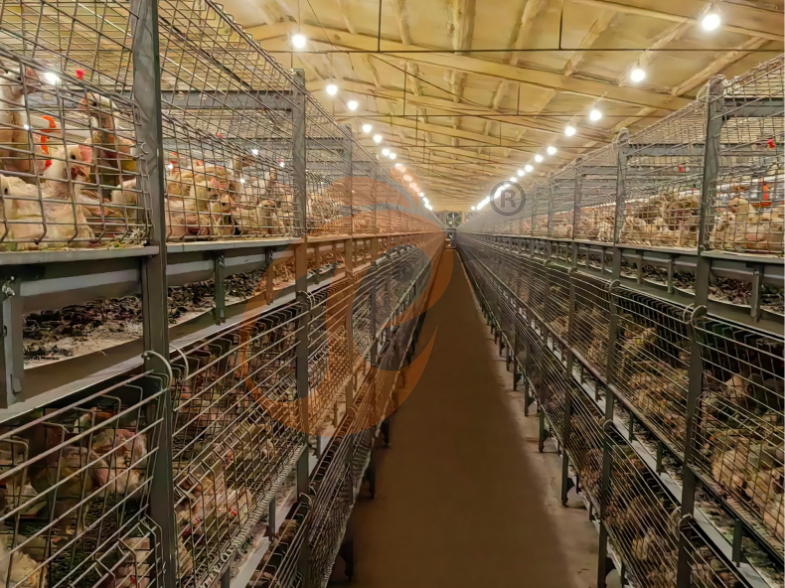

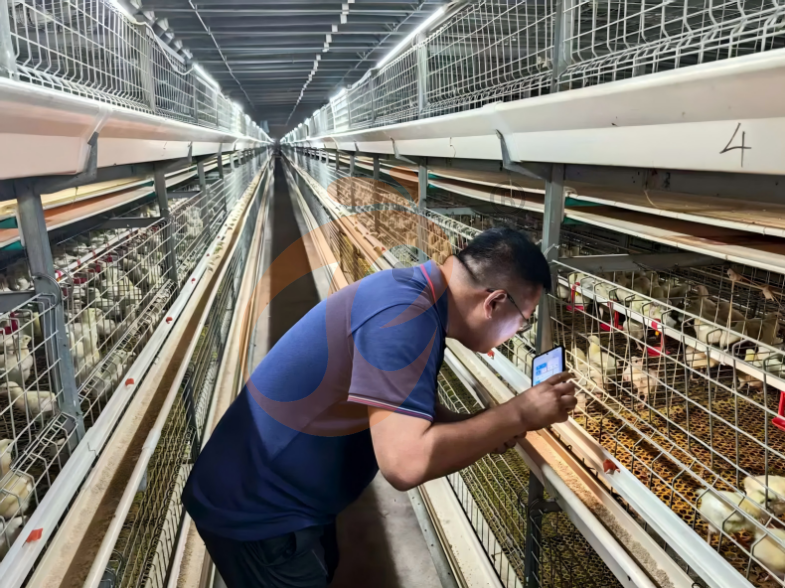

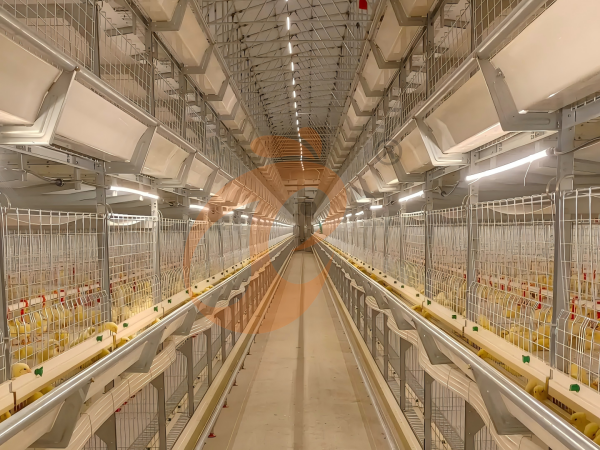

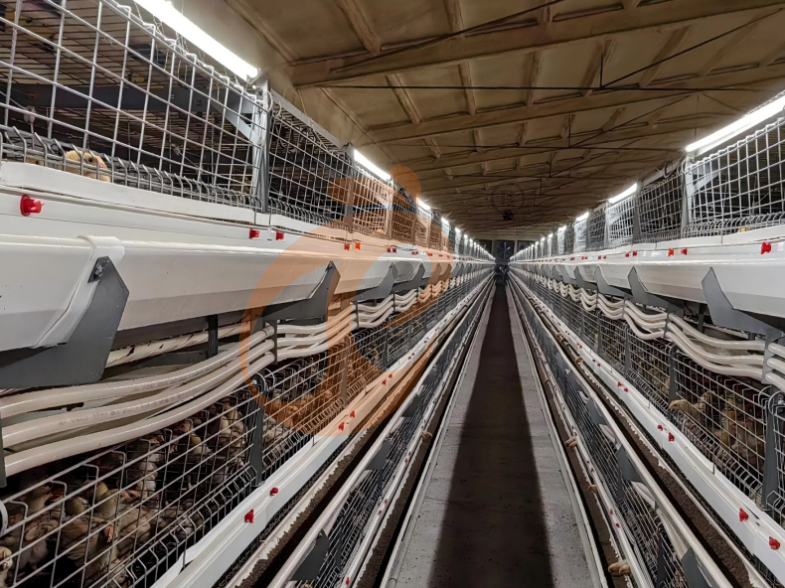

All pictures (or videos) of this pages are the application of our semi automatic H frame brooder battery cage system in customers' poultry farm. Our technicians have rich experience in localizing poultry farms.

Raising day-old chicks is the most critical stage in poultry farming. Ensuring their safety, health, and growth efficiency directly impacts the success of your farm.
Whether you are a newcomer or an experienced farmer, this cage design offers practical advantages that transform chick management into a predictable, high-performance process.

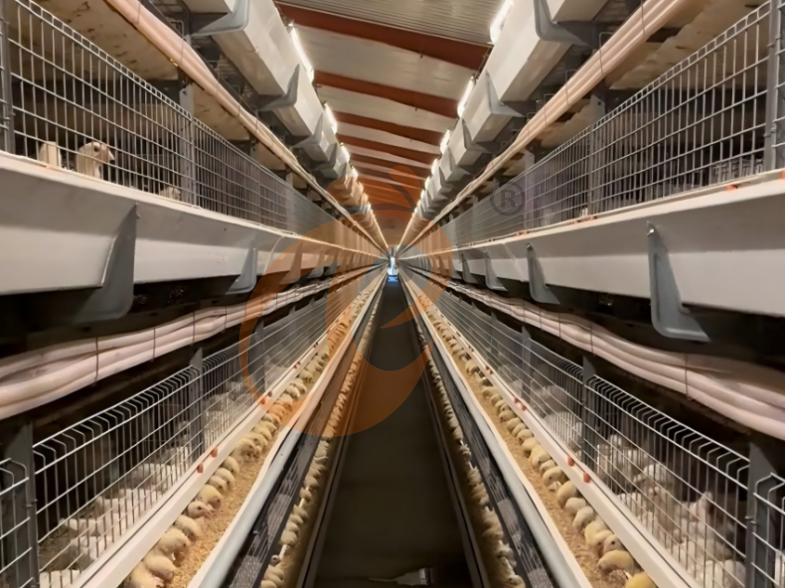

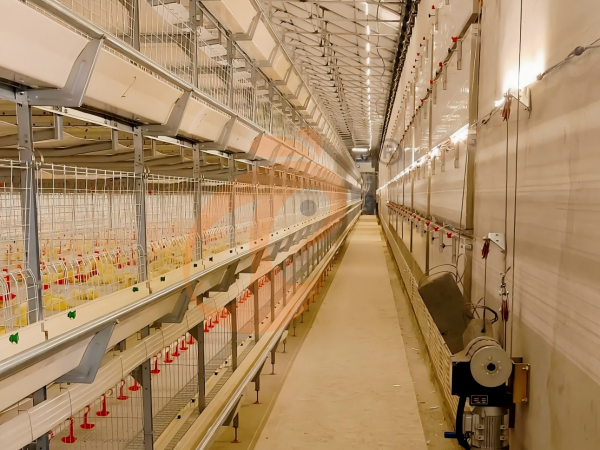

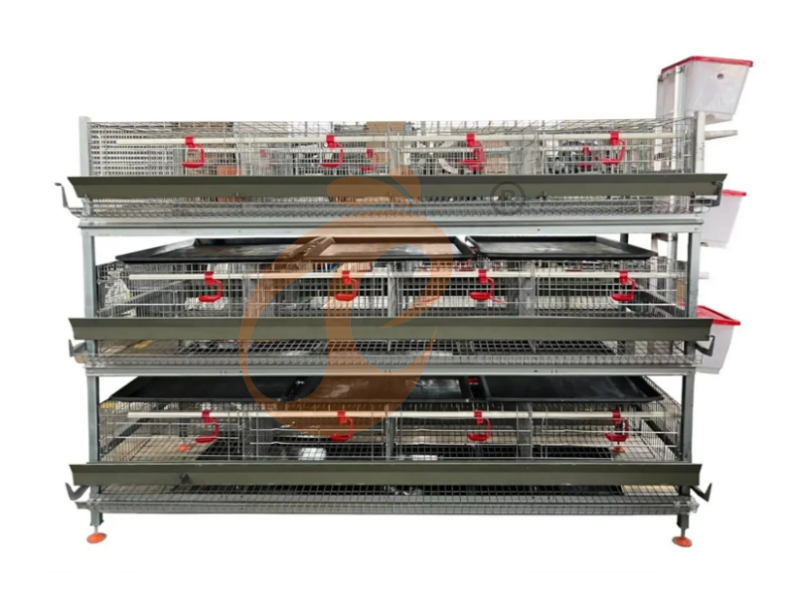

"European Standard Semi Automatic H Frame Brooder Battery Cage System"

1. Concise Specifications Of Semi Automatic H Frame Brooder Battery Cage System

For your reference only, the following data is estimated, The exact data is based on the actual needs of the project and customer requirements, or our exact quotation.

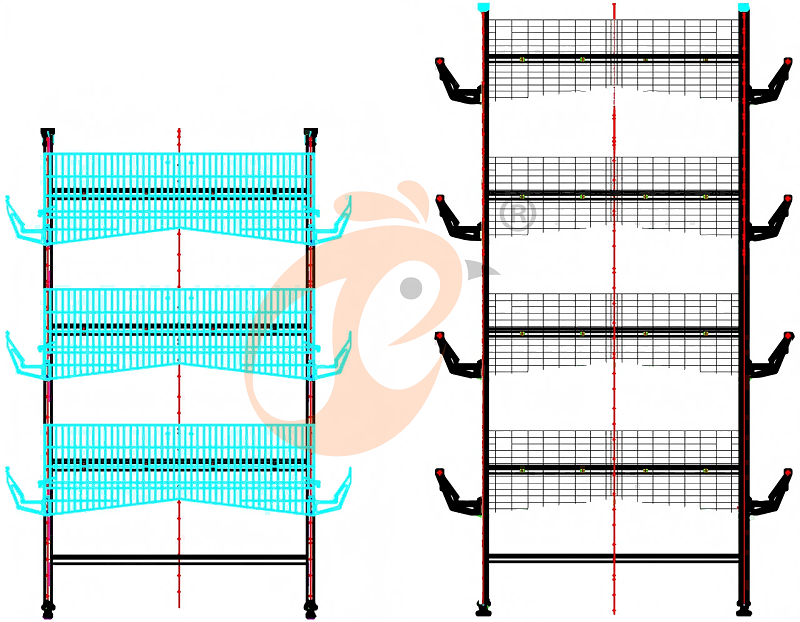

3 Tiers

3 Tiers And 4 Tiers

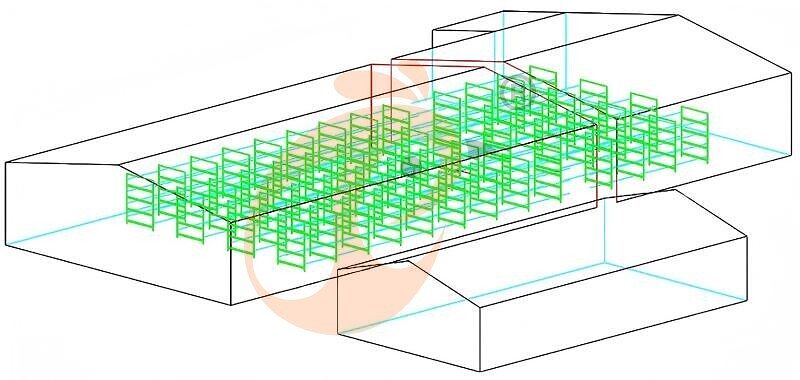

Layout Of Brooder Battery Cage System In Poultry House

(1) Technical Specifications

Data is for reference only. Swipe horizontally to view full table.

(2) Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

2. Stocking, Layout, And Density

The semi automatic H frame brooder battery cage system allows staggered occupancy, filling the bottom tier first and moving birds upward as they grow.

This ensures optimized space usage and animal welfare. Typical stocking for a 3-tier, 2-meter module is:

"The modular H-shaped three-layer design of the semi automatic H frame brooder battery cage system allows the number of chicks per square meter to be increased by 2.5 times, while ensuring that each chick grows comfortably, making breeding and management easier and more efficient."

"Why Choose Our Semi Automatic H Frame Brooder Battery Cage System"

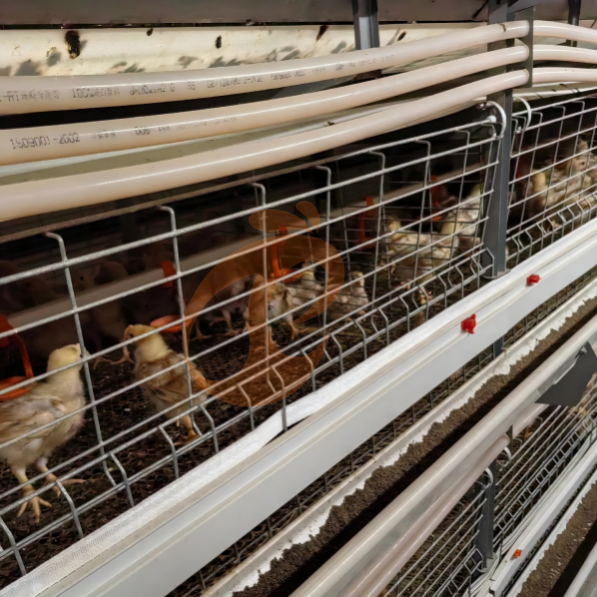

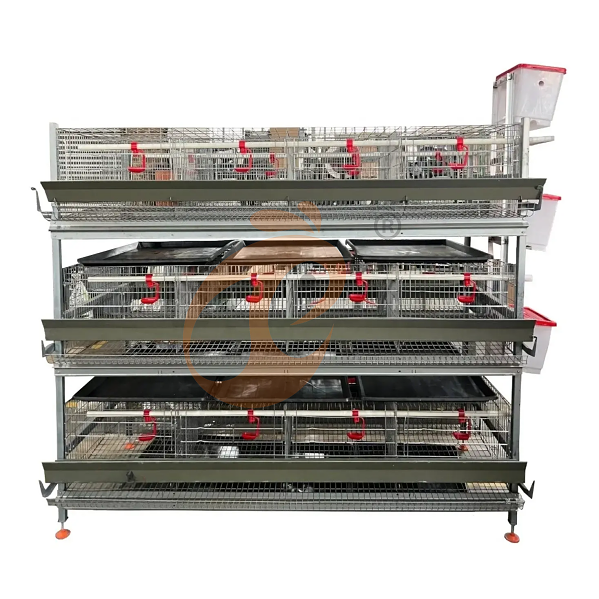

3. Structure Of Semi Automatic H Frame Brooder Battery Cage System

(1) Cage System

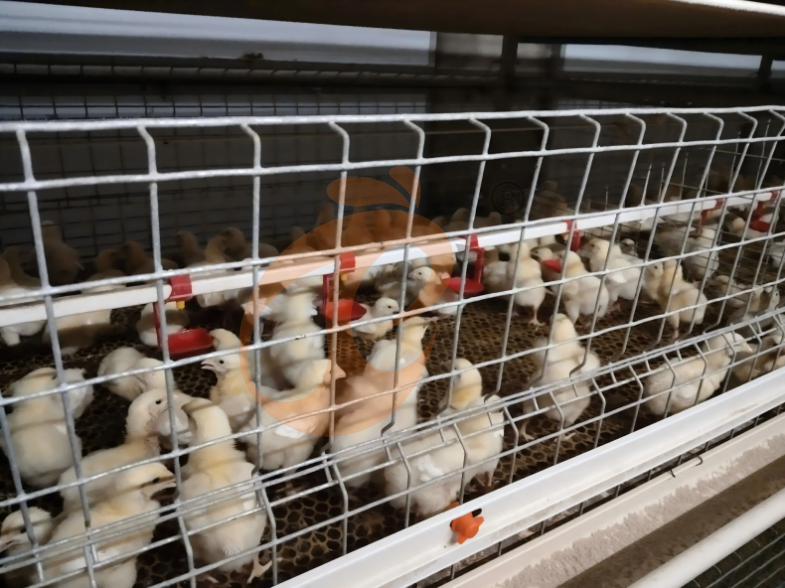

Bottom Plastic Mesh

• Accessories: Cage doors (sliding or bolt type), partition grids, support clips, anti-escape latches, plastic floor mesh (for chicks), bolts, connecting plates, galvanized coating, rust-proof coating

• Structure:

• H-shaped stepped design, 3–5 tiers

• Single cage unit size: 100–120 cm long, 60–70 cm deep, 40–45 cm high

• Each unit accommodates 10–15 growing chickens

• Plastic floor mesh: 3–5 mm thick, 12–15 mm hole diameter, flexible, wear-resistant, anti-slip

• Working Principle:

• Floor mesh inclined 7–12° for smooth feces removal

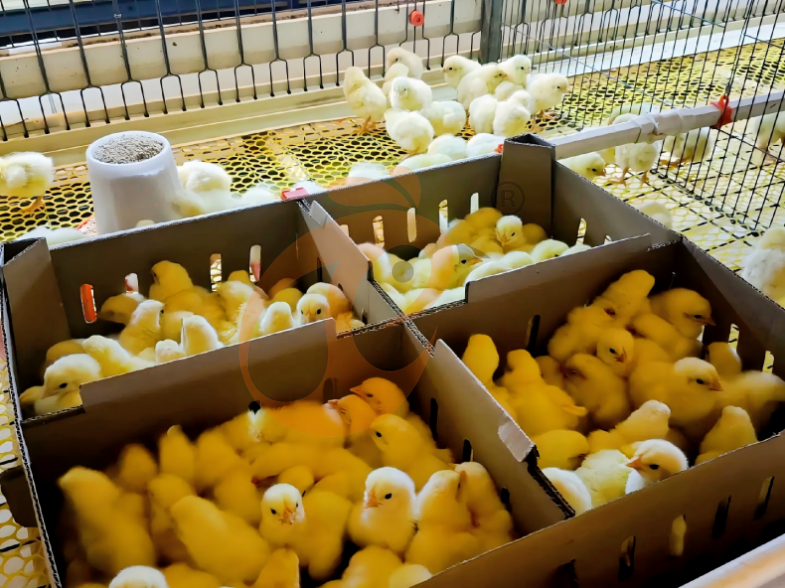

• Chick stage: plastic mesh protects feet

• Growing stage: mesh removable, chickens stand on metal mesh or cage bottom for durability and easier cleaning

• Layered rearing: in a 3-tier cage, chicks are initially placed on the 1st and 2nd tiers, leaving one tier empty; as they grow, chickens are evenly distributed throughout the cage to maximize space and comfort

(2) Frame and Support System

Heavy Galvanized Material

• Accessories: Hot-dip galvanized rectangular tubes, hot-dip galvanized flat iron, bolts, connecting plates, galvanized coating, rust-proof coating, adjustable support feet

• Structure:

• Frame made of hot-dip galvanized rectangular tubes combined with hot-dip galvanized flat iron, thickness 2.5–3.0 mm

• Beam spacing: 1.0–1.5 m; adjustable support feet: 5–10 cm

• Working Principle:

• Single-tier load capacity ≥150–220 kg

• Overall lifespan ≥25 years

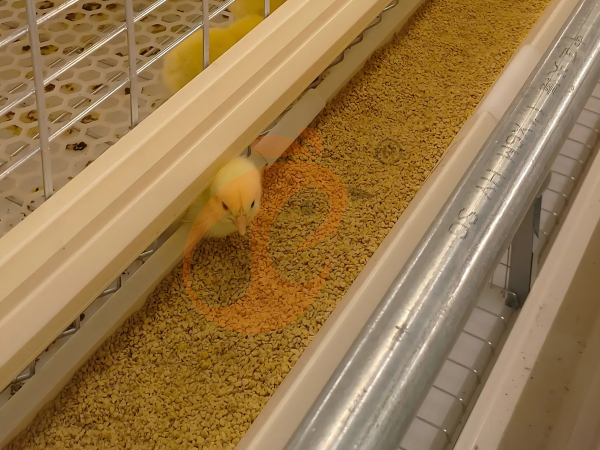

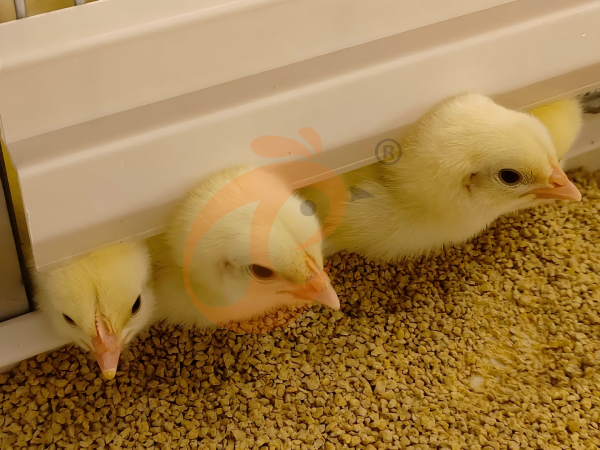

(3) Manual Feeding System

• Accessories: Feed troughs (galvanized sheet or PVC), feed trough hooks, anti-spill edges, feed conveyor/push trolley, small feed tubes (for chicks), adjustable brackets

• Structure:

• Standard feed trough: 1.8–2.2 m long, 12–15 cm deep

• Small feed tubes: low-positioned for chick feeding

• Each feed trough can serve 35–45 chickens simultaneously; small feed tube serves 12–15 chicks

• Working Principle:

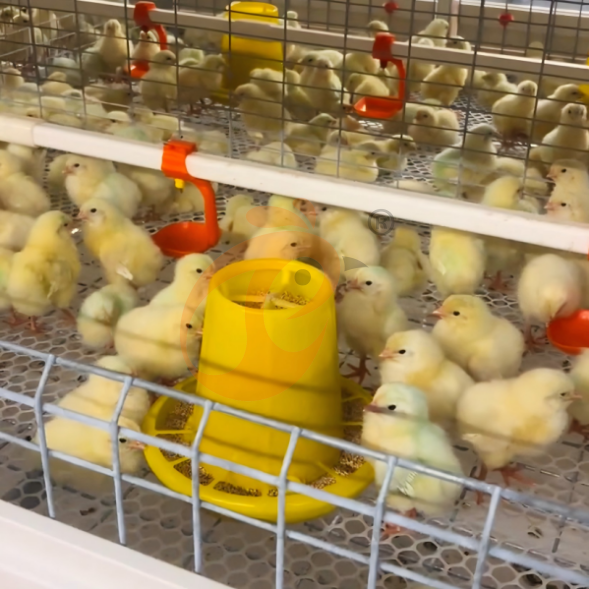

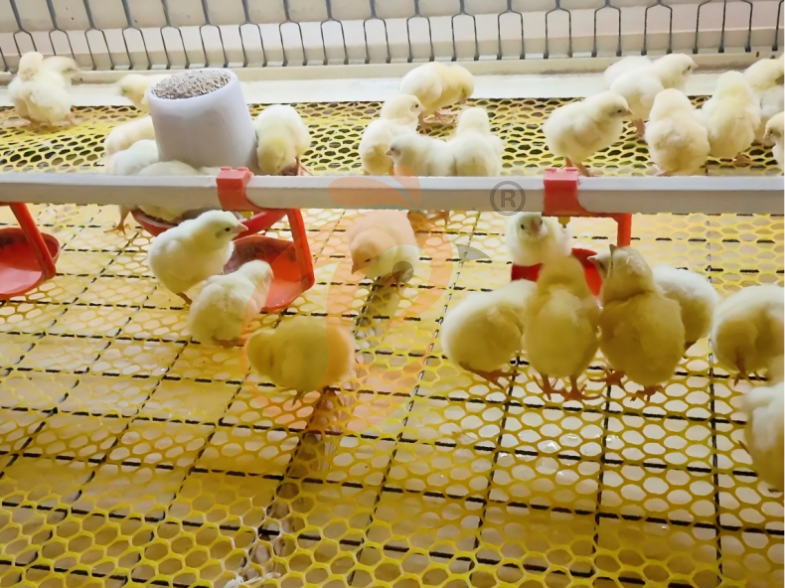

• Chick stage: small feed tubes facilitate feeding and prevent competition or feed waste

• Growing stage: small feed tubes removed, standard feed troughs used

• Worker adds feed

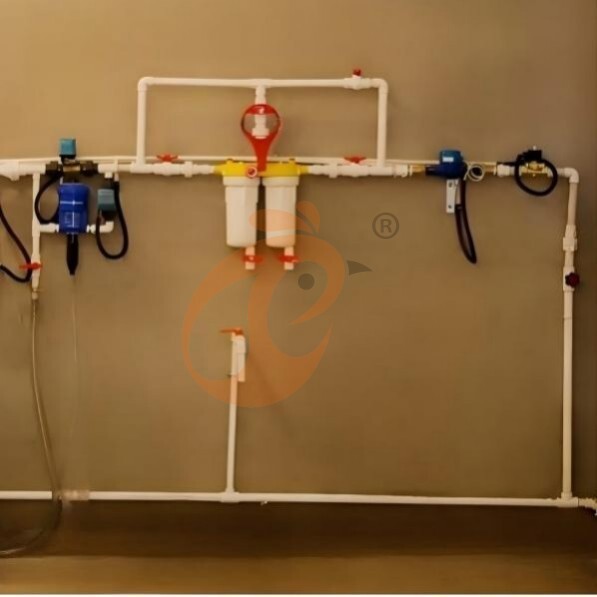

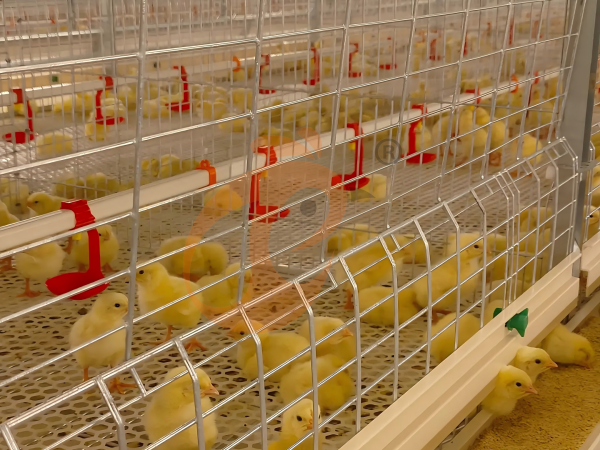

(4) Fully Automatic Drinking System

• Accessories: Nipple drinkers (standard and low-position for chicks), PVC pipes (Φ20–25 mm), T-joints, pressure regulator, water tank/booster pump, filter, installation brackets and clamps

• Structure:

• Each unit equipped with 2–3 standard nipple drinkers; 2 low-position nipples per layer for chicks

• Pressure regulator ensures stable water flow according to flock size

• Working Principle:

• Chick stage: low-position nipples 10–12 cm high, flow 30–50 ml/min

• Growing stage: nipple height adjustable to 25–30 cm

• Automatic water supply ensures clean water, cross-contamination <5%

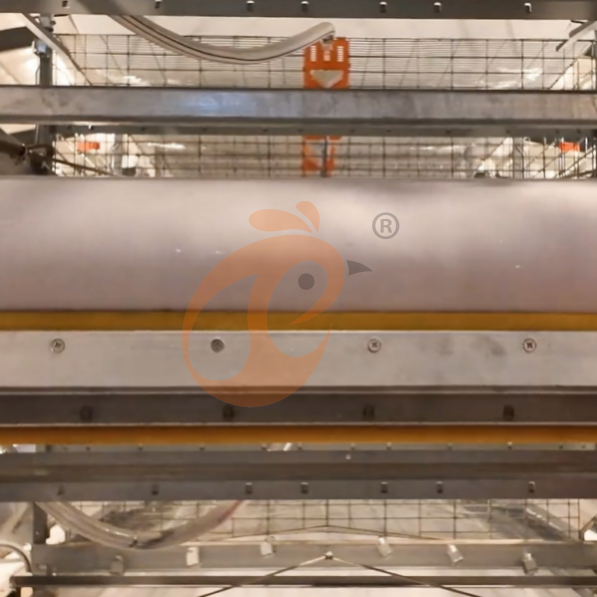

(5) Fully Automatic Manure Removal System

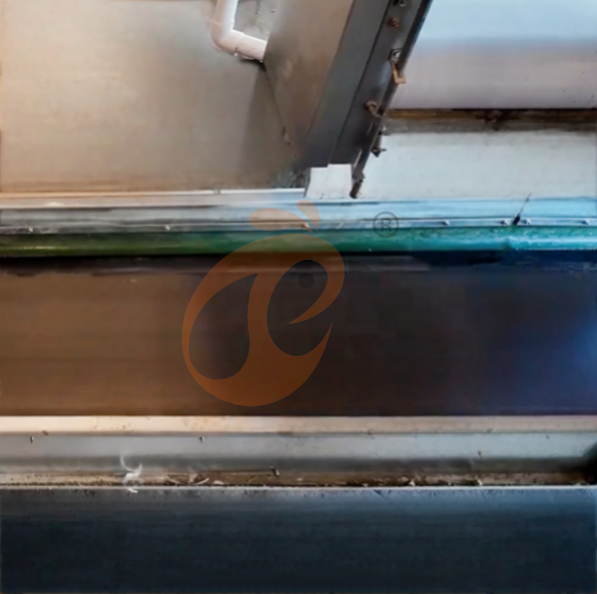

• Longitudinal Conveyor Belt

• Accessories: Conveyor belt (PVC/rubber), drive motor, rollers, tension devices, manure cart

• Structure:

Installed under cage units, width 1.8–2.4 m, thickness 1.0–1.2 mm

• Working Principle:

• Motor runs periodically, cleaning 1–2 times/day

• Efficiency 3–5 times higher than manual cleaning

• Reduces ammonia concentration by ~40%

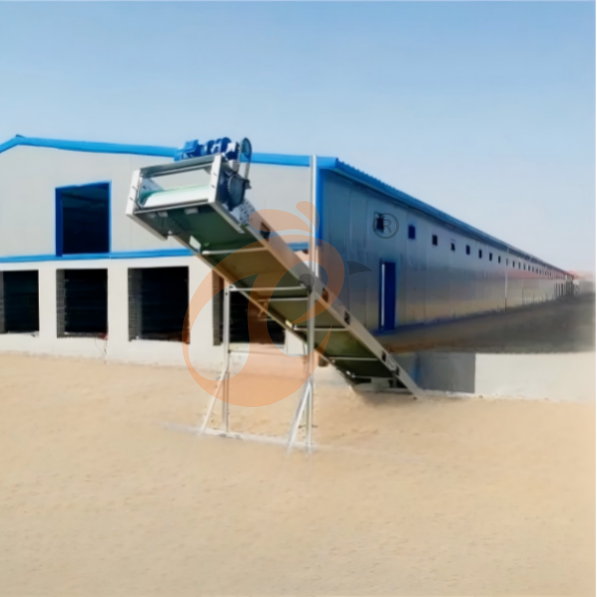

• Transverse Conveyor Belt

• Accessories: Transverse belt, drive motor, rollers, collection area

• Structure:

Manure from longitudinal belt is transferred to transverse belt for centralized collection

• Working Principle:

• Centralized collection facilitates manure handling

• Improves overall cleaning efficiency

"Tips Of Poultry Farm And Poultry Farm Equipment"

4. Recommendation Farm Management Of Poultry Farm, House And Cage System (selective assembly)

(1) From CCTV to giving order to every house, from date collection to AI data analysis report, abnormal condition detection and alarm system.

(2) Lighting is provided for chickens of all ages, which enhances their immunity and increases their productivity.

(3) One-stop management and control, continuously enhancing farm profits.

(4) Warm device gives a temperature of 28℃-37℃ to baby chicken according to its different age.

(5) Cooling device gives a temperature 18℃-27℃ to older chicken according to its different age.

(6) Humidity device gives a humidity 40%-70% to chicken according to its different age.

Please contact us to give your exact solution according to your breeding quantity and farm condition.

Visit our products to learn more...

5. Practical Applications Of Semi Automatic H Frame Brooder Battery Cage System

(1) Small-Medium Farms: Improve early-stage chick management without full automation.

(2) Commercial Farms: Achieve predictable pullet growth and reduce labor dependency.

(3) Farm Cooperatives & Pilot Projects: Modular units fit multiple barn layouts and can be scaled quickly.

"The investment in a semi automatic h frame brooder battery cage system is about usd 9 per chick (EU standards), which saves 5–8% on feed compared to traditional cage farming, and pays back faster. Long-term operating costs are low, making it easy to achieve high returns."

6. Final Recommendation

For farmers seeking high reliability, labor efficiency, and measurable ROI, the semi automatic h frame brooder battery cage system delivers unmatched value. With proven performance, extensible design, and 25-year durability, it transforms early-stage chick management into a predictable, profitable process.

Contact us today for a personalized quote and turnkey solution. Provide your farm size, bird type, and required capacity, and we’ll tailor a cost-effective, high-performance semi automatic h frame brooder battery cage system that meets your operational goals.
