Ventilation And Temperature Control Systems

Modern intensive poultry farming treats the chicken house as a controllable production parameter, directly impacting bird health, growth efficiency, and farm profitability.

Environmental factors within the house contribute significantly—over 25%—to production outcomes.

Ventilation and temperature control form the foundation of this environment, and their precision and reliability determine overall farm success.

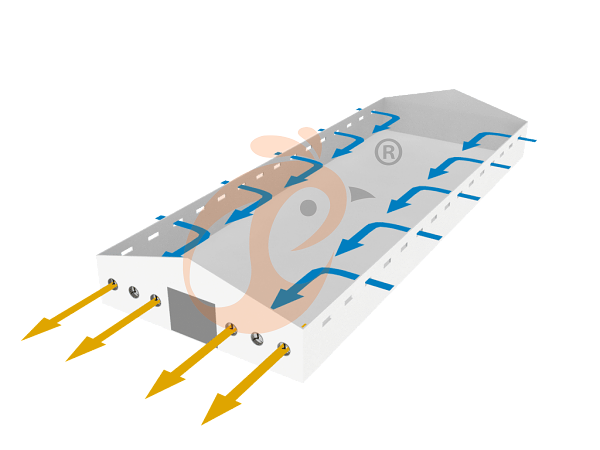

Longitudal Ventilation

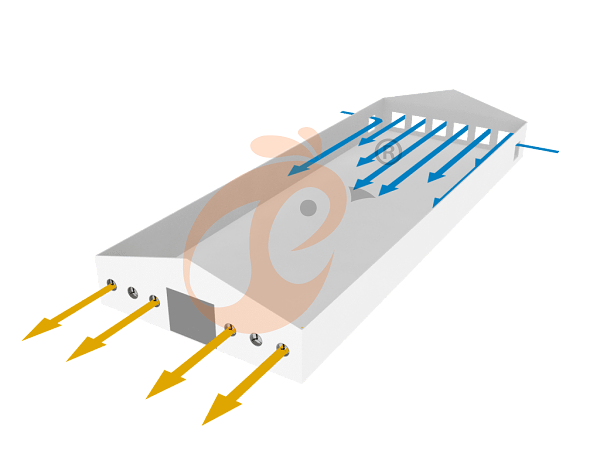

Tunnel Ventilation

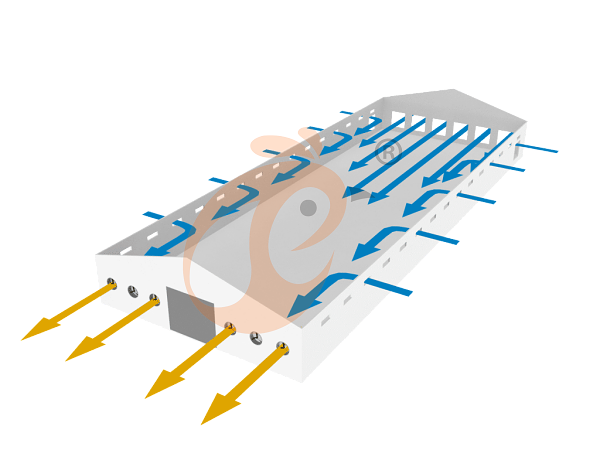

Tunnel Longitudal Ventilation

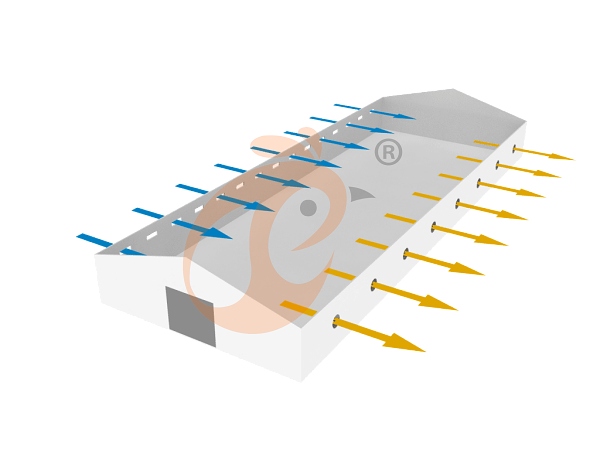

Cross Ventilation

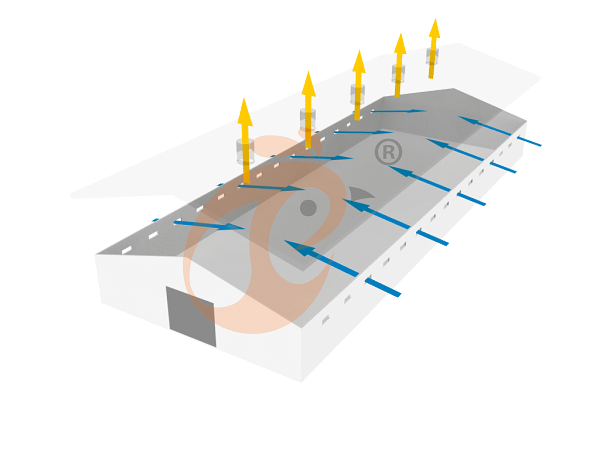

Roof Ventilation

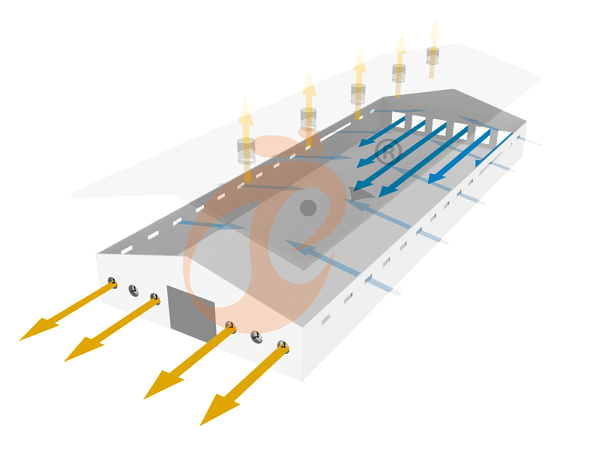

Combined Tunnel Roof Ventilation

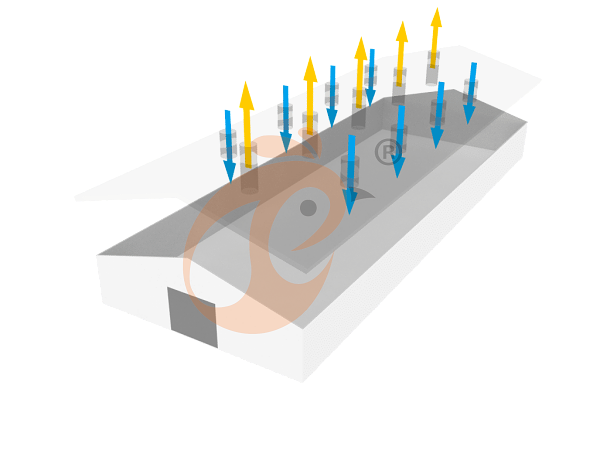

Chimney Ventilation

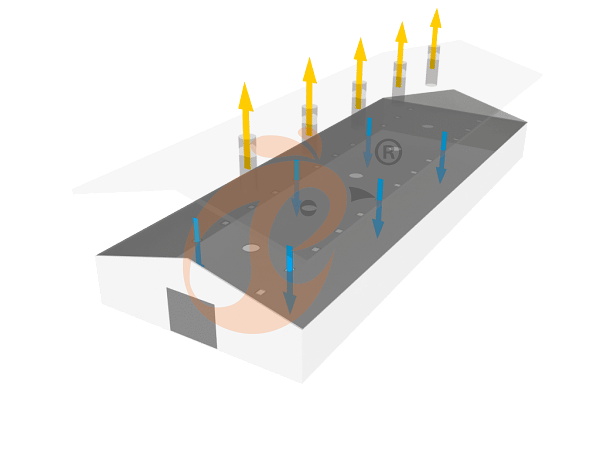

Ceiling Ventilation

"European Standard Ventilation And Temperature Control Systems"

1. Core Value And Key Parameter Focus Across Different Poultry House Applications

Broiler Deep Litter System

Chick Deep Litter System

Layer Deep Litter System

A high-performance system establishes optimal microclimates tailored to each growth stage, minimizing stress while maximizing productivity.

Application Scenario	Core Control Objectives	Key Parameter Focus
Layer Houses	Sustain egg production, maintain egg quality, prolong high-output period	Temperature consistency, ammonia levels, cage tier uniformity
Broiler Houses	Maximize weight gain, improve feed conversion, reduce mortality	Humidity, airflow rate, age-specific temperature curves
Pullet / Chick Houses	Promote uniform growth, strengthen bones and immunity, prepare for laying	Zoned temperature, air purity, minimum ventilation

The data is for reference only.

This system adapts to any poultry operation, from boutique farms to large-scale enterprises, ensuring every house runs at peak performance.

"Why Choose Ventilation And Temperature Control Systems"

2. Scenario-Specific Precision Environment Control

Layer Houses: Safeguarding Egg Production

Stability is critical. Minor temperature swings or harmful gas accumulation can impair production and eggshell integrity.

Our system uses a network of temperature sensors and negative pressure ventilation for precise control.

(1) Temperature

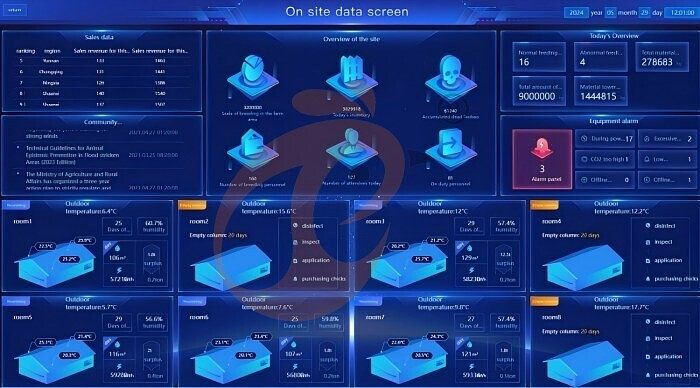

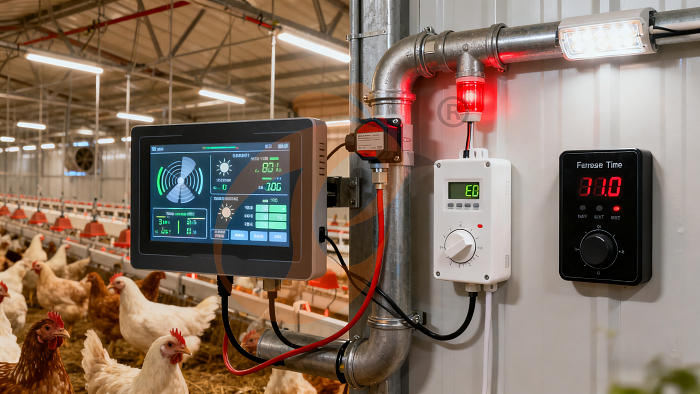

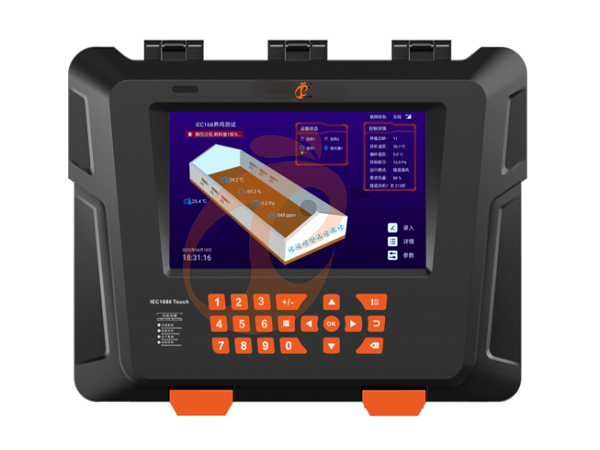

On Site Data Screen

Maintained within ±0.5°C to ensure optimal laying conditions.

(2) Ventilation

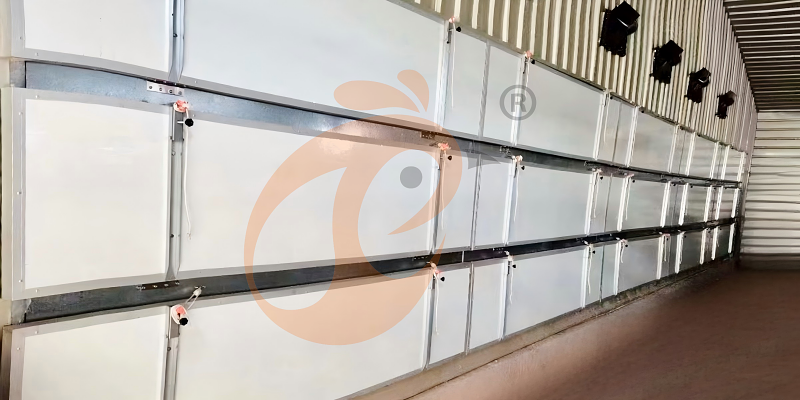

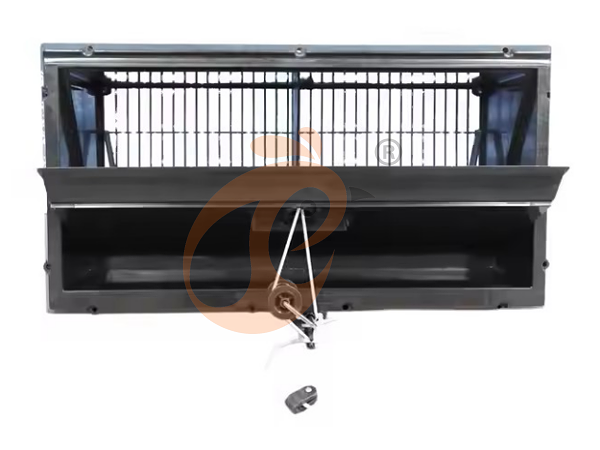

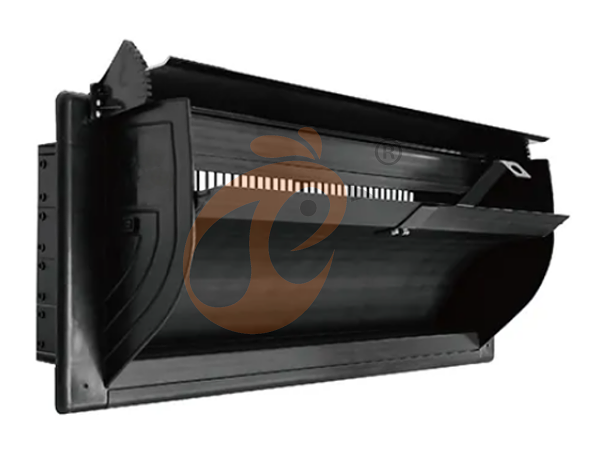

Air Inlet Window

Hybrid vertical and tunnel airflow provides fresh air in all seasons.

Ammonia is maintained under 10 ppm, significantly below the industry limit, protecting respiratory health and egg cleanliness.

(3) Layer House Environmental Parameters And Impact

Environmental Parameter	Optimal Range	Production Effect
Temperature	20–24°C	Supports high egg production rates
Relative Humidity	50–65%	Prevents bacterial growth on shells
Cage Tier Differential	<2°C	Ensures consistent performance across levels

Broiler Houses: Optimizing Growth Cycles

Efficiency is key in broiler production. Controlled temperature curves and targeted airflow simulate ideal conditions for feed intake and weight gain.

(1) Stage-Specific Cooling

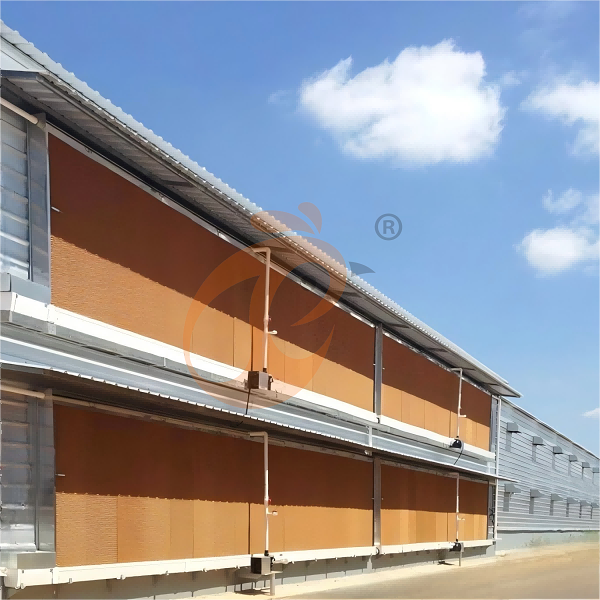

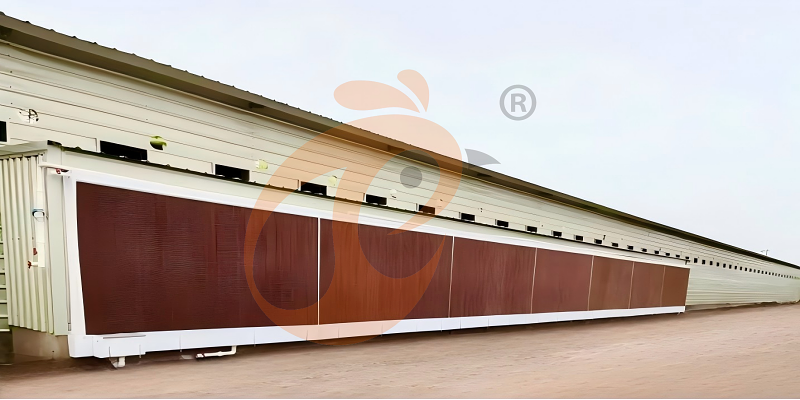

Cooling Pad

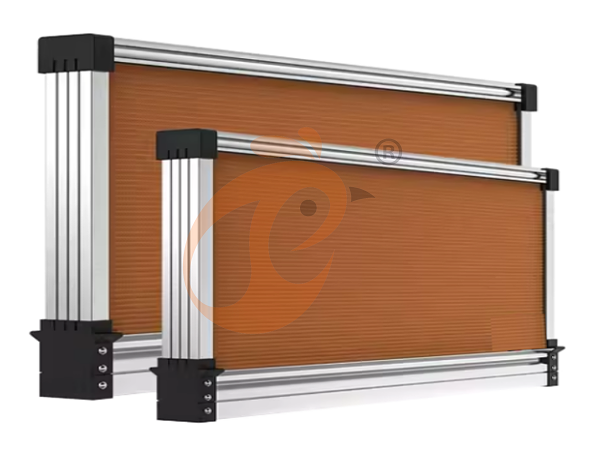

Wet Pad

Gradual reduction from 33°C at day one to 20–22°C at market age.

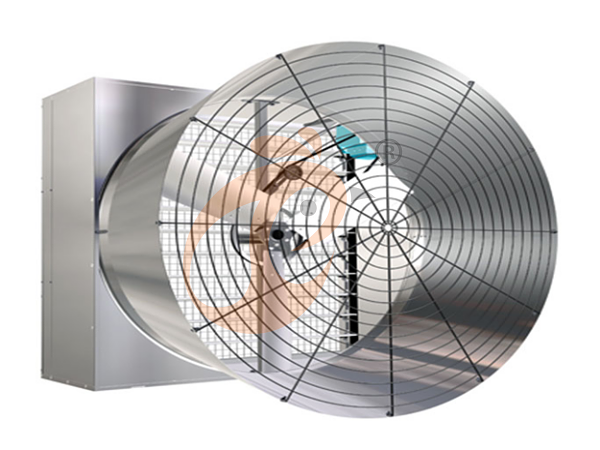

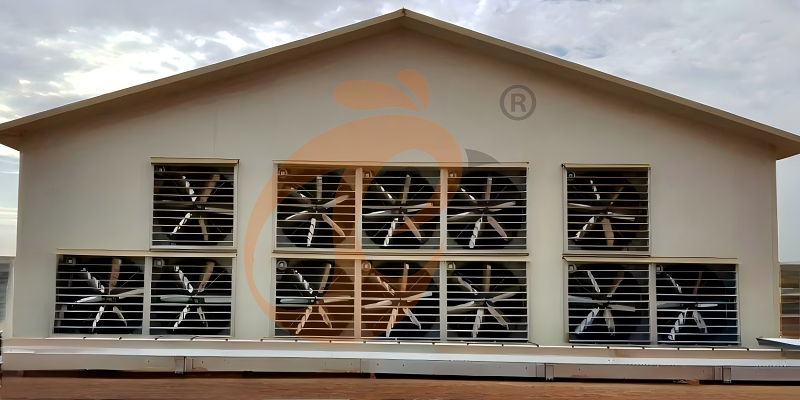

(2) Fan Cooling

Airflow of 1.5 m/s applied when birds exceed 1.8 kg, lowering perceived temperature and mitigating heat stress.

(3) Broiler House Environmental Settings By Age

Age (Weeks)	Target Temperature (°C)	Ventilation Mode	Expected Weight (kg)
1	32–30	Minimum ventilation	0.18
3	26–24	Transitional ventilation	1.25
6	20–18	Tunnel ventilation	2.85

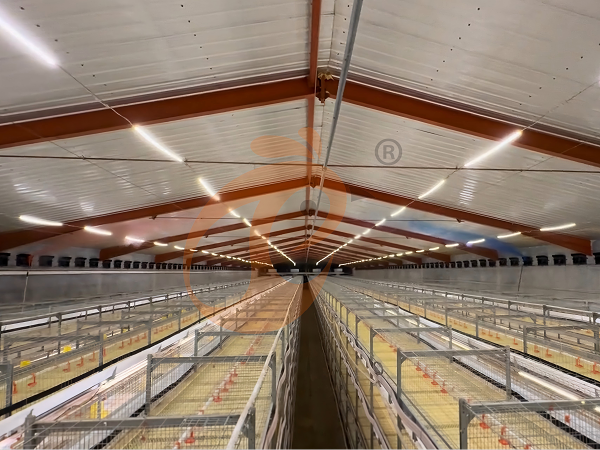

The layout of battery cage system in poultry house, the data is for reference only.

Optimizing growth conditions shortens production cycles and improves feed efficiency, turning each bird into maximum profit potential.

Pullet/Chick Houses: Establishing High Production Potential

Early life stages are delicate. Environmental control during this period ensures survival and future laying performance.

(1) Thermal Island

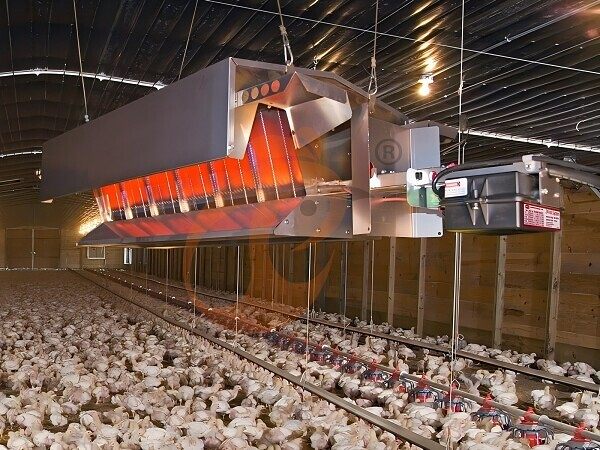

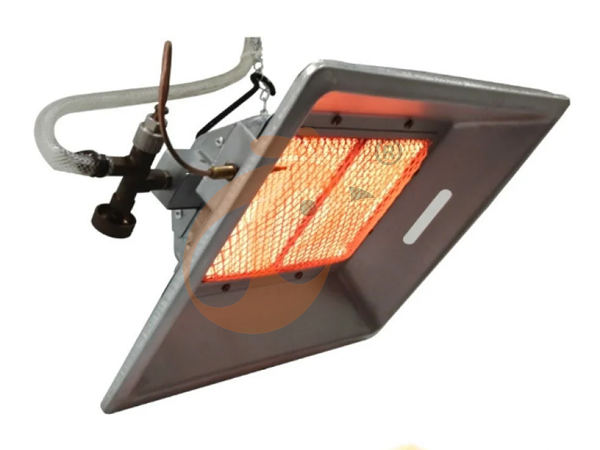

Heater System

Localized 3–4°C warmer areas compensate for limited thermoregulation in chicks.

(2) Minimum Ventilation

≥0.5 CFM per bird maintains CO₂ below 3000 ppm, supporting immune development.

(3) Pullet House Environmental Control By Age

Age (Weeks)	Core Objective	Temperature (°C)	Ventilation Focus
1–2	Promote yolk absorption and activity	32–30	Avoid drafts, maintain basic exchange
5–8	Bone and feather development	26–22	Increase airflow, limit dust <3.5 mg/m³
12–16	Sexual maturity preparation	20–18	Full ventilation for cardiovascular conditioning

For reference only, the exact size is based on our exact quotation.

Providing the right start ensures lifelong productivity, making early-stage investment critical for maximizing future profits.

"The Advantages Of Ventilation And Temperature Control Systems"

3. Advanced Features And Metrics

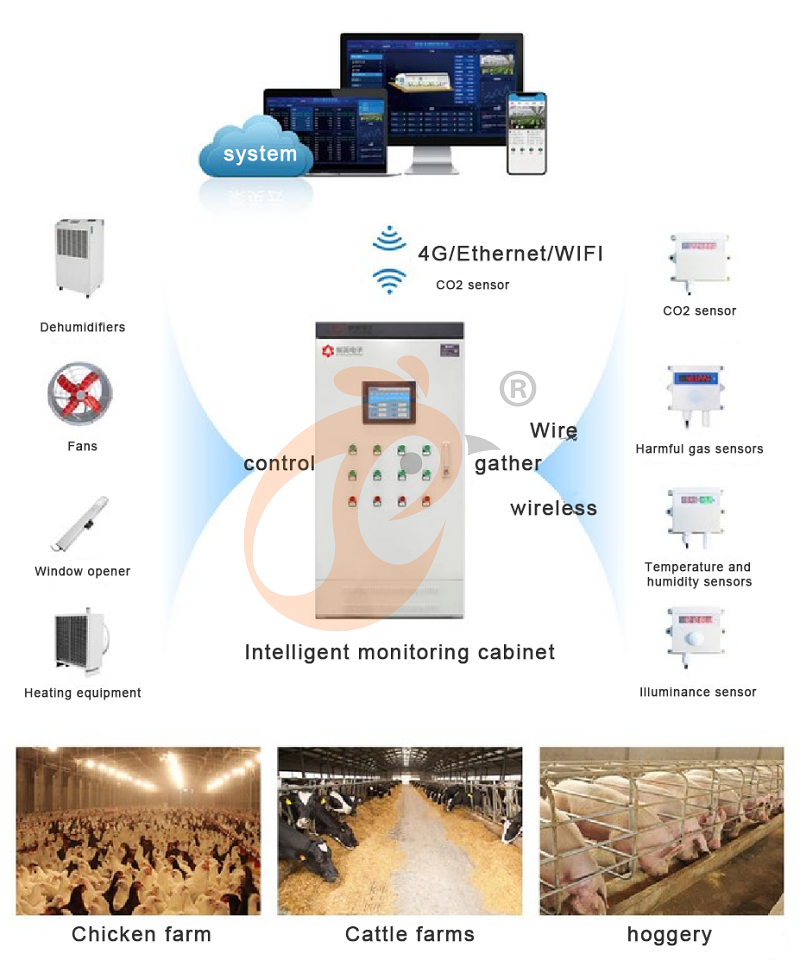

(1) Sensor Integration And Performance Advantages

Feature	Function	Benefit
Multi-Level Temperature Sensors	Monitor cage tiers individually	±0.5°C precision, improves uniformity
Gas Sensors (CO₂ & Ammonia)	Continuous air quality tracking	Early detection, reduces mortality
Humidity Control Dampers	Automated adjustment	Maintains clean environment, enhances egg quality

Specific configurations are subject to customer requirements or final quotation.

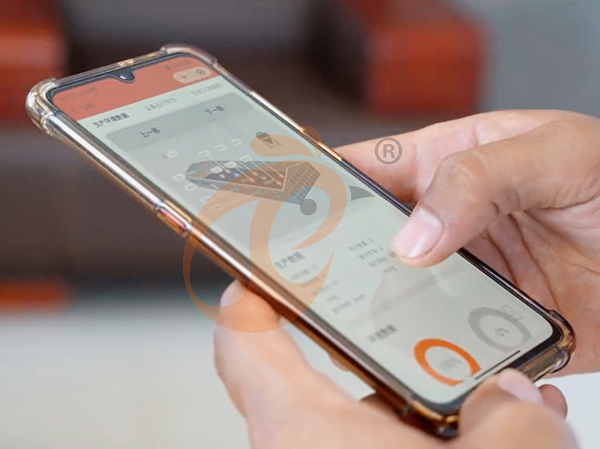

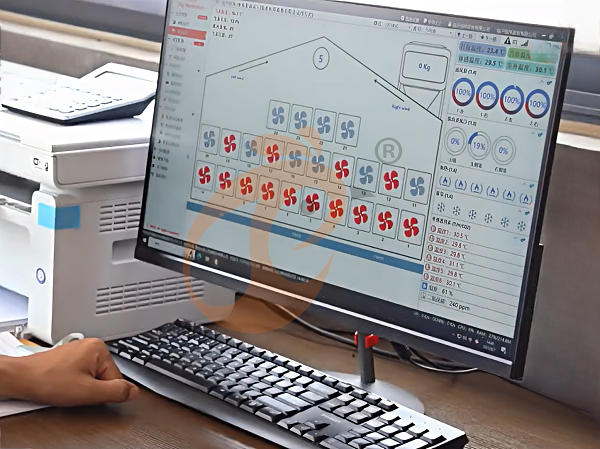

Smart sensors automate management and alert staff in real time, reducing labor costs while maintaining peak production.

(2) Operational Efficiency And Return On Investment

Metric	Value	Farm Impact
Average Energy Use	12 kWh/day per 10,000 birds	Cuts operating costs by ~15%
Maintenance Cycle	12 months	Minimizes downtime, ensures consistent production

The data is for reference only.

Efficiency gains directly translate to higher ROI, making the system a strategic investment for competitive farms.

4. Application Case: Golden Harvest Poultry Farm

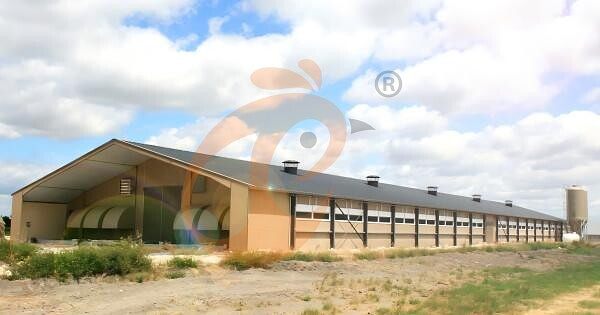

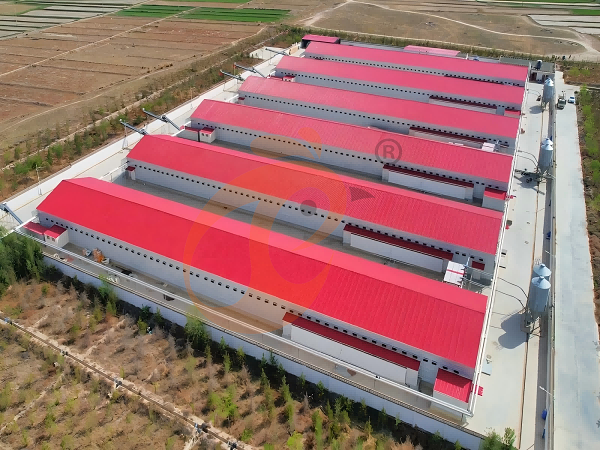

Ventilation In Turnkey Poultry Farm Project

(1) Farm Overview

Size: 50,000-layer birds
Houses: Layer, Broiler, and Pullet

(2) Layer House

Egg production: +5%
Eggshell quality: noticeably improved

(3) Broiler House

Feed conversion ratio: improved from 1.85 → 1.72
Growth cycle: shortened by 3 days

(4) Pullet House

Uniformity: 97% by 16 weeks
Benefit: Consistent growth sets the foundation for future high-yield egg production

This case clearly demonstrates that intelligent environmental control transforms poultry houses into high-performing, profit-generating units.

Farms gain not only higher production and bird health but also improved operational efficiency, proving that precision environmental management is a key competitive advantage.
