Brooder Slatted Floor System

"Quick Viewing Of Brooder Slatted Floor System"

Brief Introduction

The brooder slatted floor system is designed to maximize early-stage growth for small egg-laying pullets (1–12 weeks).
Cage-free and modular, it ensures uniform development, high survival rates, and optimal feed utilization.
Farms adopting this system report 5–8% faster weight gain and 20% lower labor requirement.
Automated climate management, precision feeders, and integrated IoT sensors provide real-time environmental monitoring, enabling data-driven management and higher ROI. Price range: $2.2–3.2 per bird, EU Standard.

Brief Data

Item	Typical Range
Age Range	1 day – 16/18 weeks
Birds Per House	10,000 – 40,000 birds
House Width	10 – 14 m
House Length	60 – 100 m
House Area	600 – 1,200 m²
Stocking Density	12 – 18 birds/m² (adjusted with age)

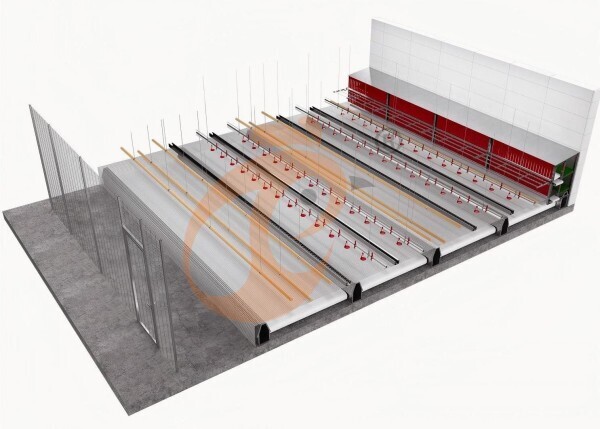

Floor Structure	Plastic slatted floor + manure pit/collection area
Slatted Floor Height	40 – 60 cm
Rearing Mode	Full slatted floor or partial slatted + activity area
Ventilation Requirement	Cross or longitudinal ventilation; ammonia ≤15 ppm
Survival Rate	97 – 99%
Labor Requirement	0.6 – 0.8 persons / 10,000 birds
System Features	Dry floor; Good manure separation; Promotes uniform body and skeletal development

Why Choosing Taiyu's Group Young Layer Rearing Equipment?

Taiyu Group's case

Taiyu Group has executed turnkey projects worldwide (in Africa, Asia, Middle East, etc.) for both layer and broiler farms.
It brings European‑standard design influences and localized support to maximize performance and return on investment.
Customizes designs based on the farm's size, region, climate, and production goals.

How To Choosing Young Layer Rearing Equipment?

Here is a deep comparison for you to have a clearer understanding.

Slatted floor system VS young layer cage system VS deep litter system.

Slide the table left and right to view the full content.

Item	Slatted Floor System	Pullet Cage System	Floor / Pen System (Deep Litter)
Suitable Scale	10,000 – 40,000 birds	5,00 + birds	3,000 – 10,000 birds
Stocking Density (birds/m²)	12 – 18	15 – 20	8 – 12
House Area (m²)	600 – 1,200	400 – 900	300 – 800
Floor Structure	Plastic slatted floor + manure pit	Multi-tier cages	Solid floor + litter (rice husk, wood shavings)
Slatted Floor / Cage Height	40 – 60 cm	45 – 60 cm per tier	N/A
Ventilation Requirement	Cross or longitudinal; ammonia ≤15 ppm	Controlled; ammonia ≤12 ppm	Requires careful humidity control; ammonia ≤20 ppm
Survival Rate (%)	97 – 99	98 – 99	95 – 98
Labor Requirement (persons/10,000 birds)	0.6 – 0.8	0.4 – 0.6	1.0 – 1.5
Animal Welfare	Medium	Low	High
Manure Management	High efficiency; Manure drops through slats	Very high efficiency; Centralized removal	Medium; Mixed with litter, needs separation
System Features	Dry floor; Promotes uniform development; Easy cleaning	High-density; Automated feeding and watering; Minimal floor contact	More natural behavior; Lower density; Requires regular litter management

Related Broiler Rearing Equipment

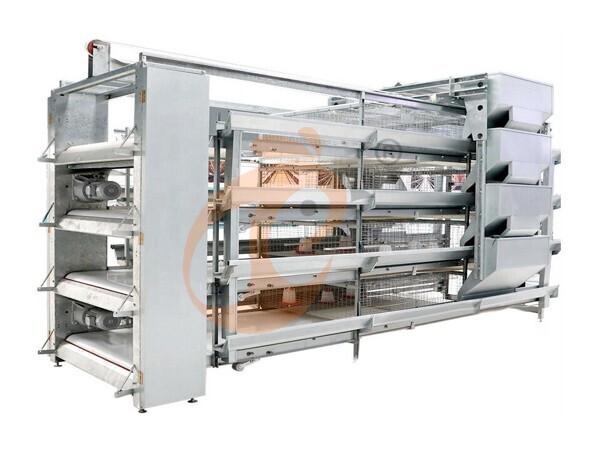

Brooder Chicken Cage

IoT Farm System

Our design and quality of brooder slatted floor system and poultry farm equipment based on European and USA standard.

24 hours Reception WhatsApp NO. : +8618830120193.

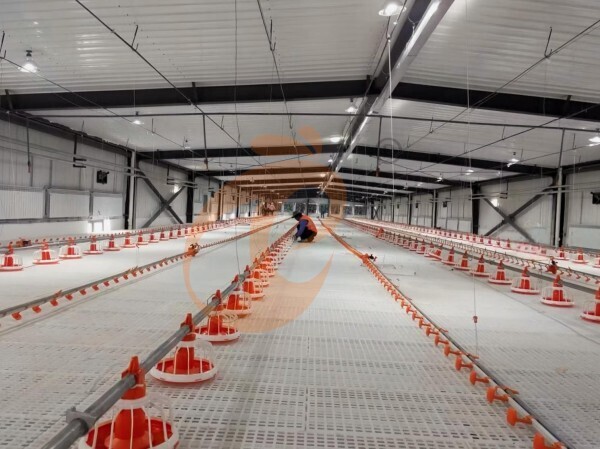

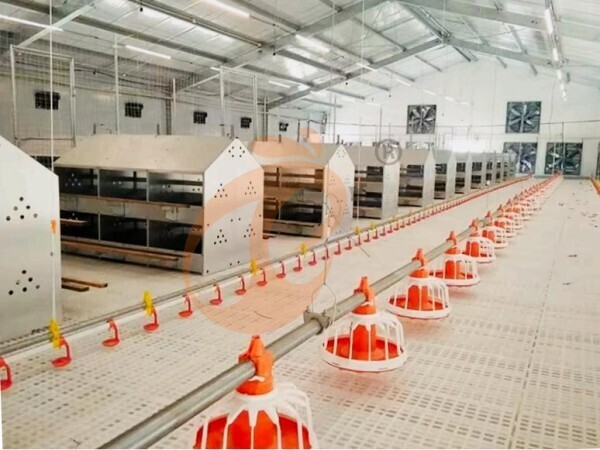

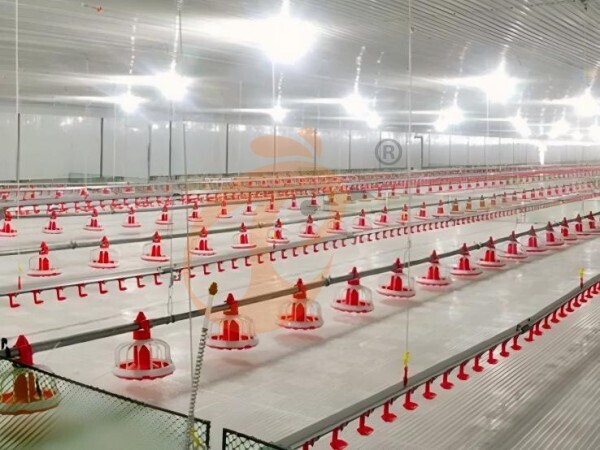

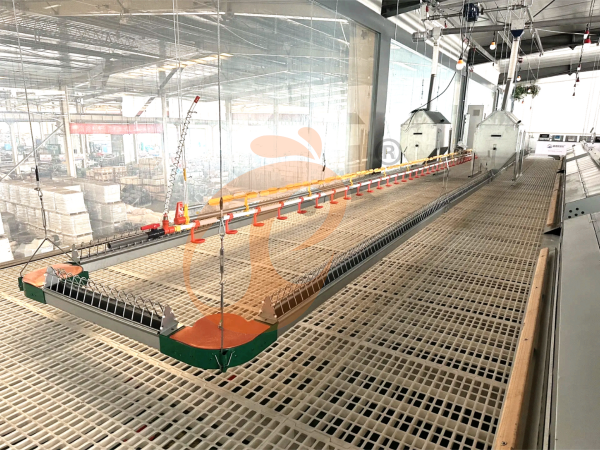

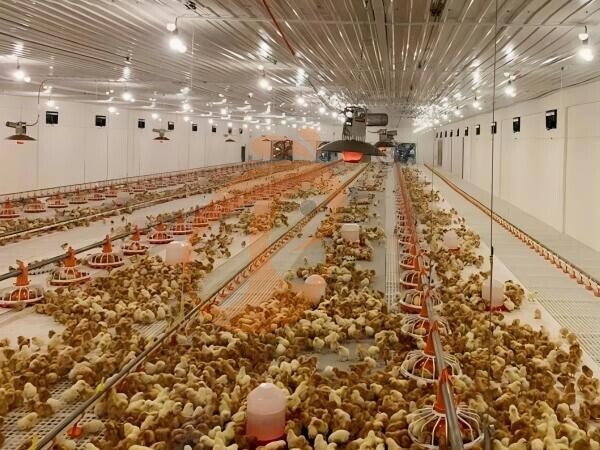

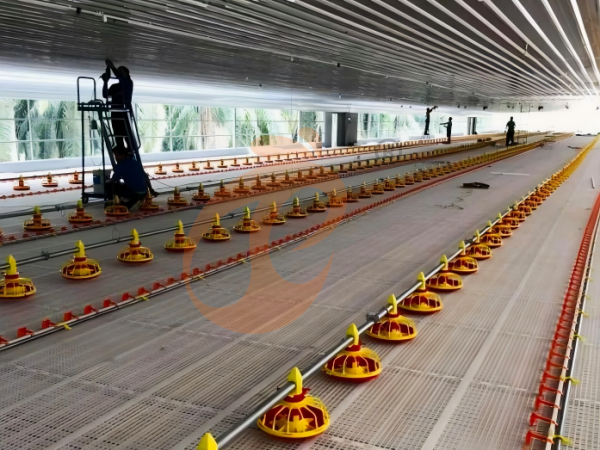

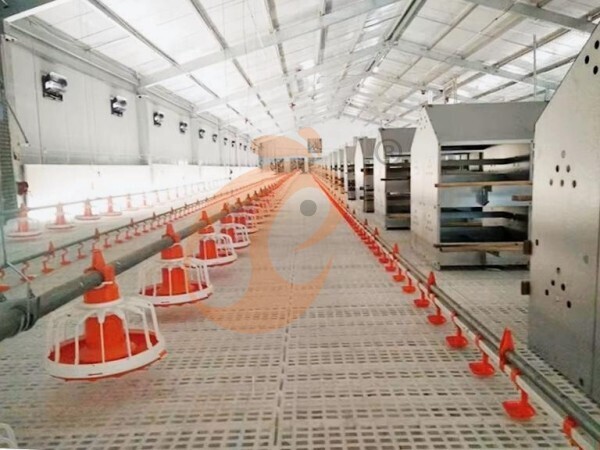

All pictures (or videos) of this pages are the application of our brooder slatted floor system in customers' poultry farm. Our technicians have rich experience in localizing poultry farms.

"European Standard Brooder Slatted Floor System"

1. Farm Application

Recommended Brooding Area And Equipment For Different Flock Sizes

Slide the table to view the complete content. The data is for reference only.

Farm Size (Birds)	House Area (m²)	Chicks Per M²	Recommended Tiers	Feeders Per House	Water Nipples	Estimated Cost ($)
15,000	250	60	1	18	30	30,000
25,000	400	63	1	30	50	50,000
50,000	800	62	2	60	100	95,000
100,000	1800	56	2	120	200	185,000

Farms report up to 12% improvement in feed conversion ratio (FCR) by using optimized feeder layout and water access.

IoT sensors monitor temperature, humidity, and air quality, sending real-time alerts for environmental changes. EU Standard compliance ensures welfare and operational safety.

2. Structural Performance

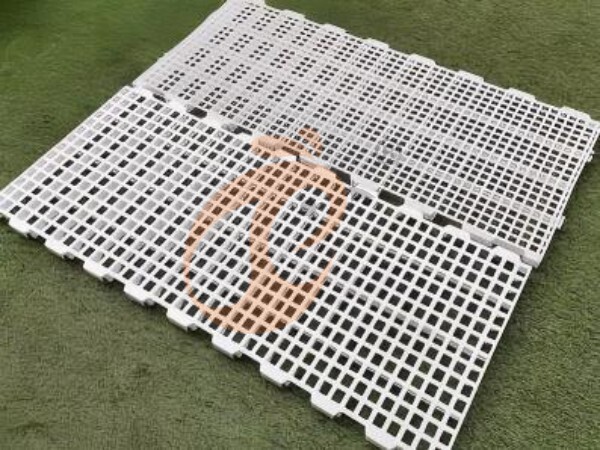

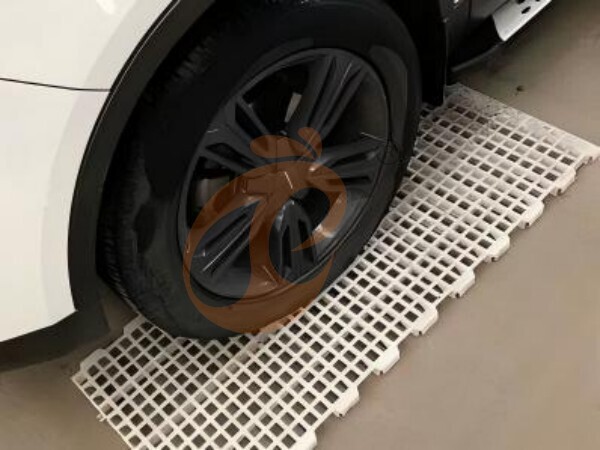

The system is built from PVC-coated steel and galvanized frames, ensuring durability and resistance to corrosion. slats measure 28–32 mm width with 12–18 mm gaps, preventing leg injuries and facilitating natural droppings removal. modular design allows rapid expansion or relocation.

Structural Components Of The Brooder Slatted Floor System
Slide the table to view the complete content. The data is for reference only.

Component	Material	Dimension (mm)	Feature	EU Standard
Floor Slats	PVC-coated steel	30x16	Non-slip, easy cleaning	✔
Frame	Galvanized steel	50x60	Corrosion resistant	✔
Feeder	PVC	320 width	Uniform feed distribution	✔
Water Line	Stainless steel	25 diameter	Adjustable nipple height	✔
Modular Connector	Galvanized steel	50x50	Quick assembly	✔
Floor Support Bars	Galvanized steel	40x40	Adjustable height, slope 3–5°	✔

Farms experience 25–30% reduction in daily labor for cleaning and maintenance. modularity allows integration with automatic feeding and water systems.

3. Accessories And Smart Systems

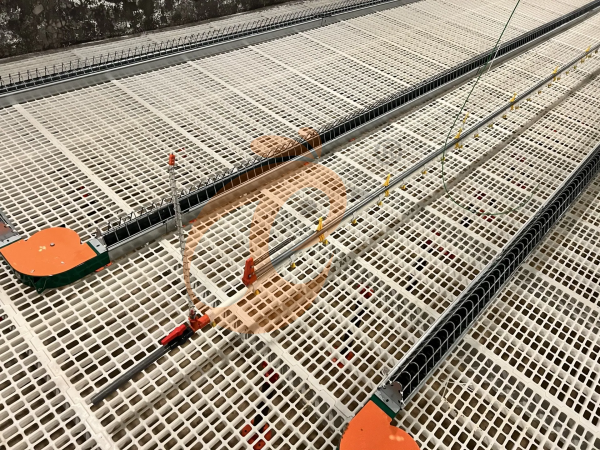

The system includes PVC feeders, stainless steel nipple drinkers, environmental sensors, and removable floor slats.

Optional dividers, slope-adjustable supports, and smart feeders enhance operational efficiency.

Key Accessories And Specifications
Slide the table to view the complete content. The data is for reference only.

Accessory	Function	Capacity/Specification	Smart Integration	EU Standard
PVC Feeders	Continuous feed supply	25-30 cm width per chick	Yes	✔
Nipple Drinkers	Controlled water delivery	1 per 5 chicks	Yes	✔
Environmental Sensor	Temperature & humidity monitoring	Accuracy ±0.5°C, ±3% RH	Yes	✔
Modular Floor Slat	Easy cleaning & replacement	1.2 m length	No	✔
Smart Feed Sensor	Track feed consumption per chick	0.1 g resolution	Yes	✔

IoT integration allows real-time monitoring, automatic alerts for water or feed issues, and remote environmental adjustments, improving growth uniformity and reducing mortality.

Estimated accessory cost: $0.6–1.2 per bird, EU Standard.

"The Advantages Of Brooder Slatted Floor System"

4. Environmental And IoT Parameters

The system enables precise environmental control with real-time data analytics.

Environmental And Smart Monitoring Parameters
Slide the table to view the complete content. The data is for reference only.

Parameter	Typical Range	Target Value	Notes
Temperature (°C)	22–30	29 day 1	Gradually reduced to 22–24 by week 12
Humidity (%)	50–70	58	Optimal for pullet feather development
Feed Intake (G/Bird/Day)	12–65	52 week 6	Monitored via smart feeders
Water Intake (ML/Bird/Day)	20–160	135 week 6	Measured via nipple drinkers
CO₂ Level (PPM)	300–1200	600	Monitored by smart sensors

Real-time IoT monitoring reduces environmental stress, improves uniformity, and supports data-driven management decisions.

Farms report 3–5% higher survival rate due to proactive monitoring.

5. Specifications And Operational Metrics

Supports 1–2 tiers, suitable for 1–12-week-old pullets. floor panels measure 1.2 m × 2 m with slope 3–5° for drainage. feeders and drinkers are spaced for optimal access.

Performance And Operational Specifications
Slide the table to view the complete content. The data is for reference only.

Specification	Value	EU Standard
Floor Panel Size	1200 x 2000 mm	✔
Tier Height	400–600 mm adjustable	✔
Slope	3–5°	✔
Feed Conversion Ratio	1.2–1.5 kg feed/kg weight	✔
Mortality Rate	1–2.5% by 12 weeks	✔
Feeders Space Per Bird	7–8 cm	✔
Water Nipple Ratio	1 per 5 birds	✔

6. Advantages

(1) Optimized Growth

Uniform weight, high early-stage survival.

(2) Labor Efficiency

Reduced labor for feeding, watering, cleaning.

(3) Durable Materials

PVC-coated and galvanized frames last 10–15 years.

(4) Scalable Design

Supports 15,000–100,000 chicks.

(5) IoT Data Management

Real-time environmental monitoring, feed/water tracking.

(6) Quick Setup

Modular panels enable rapid installation.

(7) Enhanced Uniformity

Proper spacing reduces competition, ensures healthy pullets.

(8) EU Standard Compliance

Ensures welfare, safety, and long-term reliability.

"Tips Of Managing Poultry Farm And Poultry Farm Equipment"

7. Farm Knowledge Tip

(1) Stocking Density And Space

Maintain 55–67 chicks per m² depending on house size.
Provide 7–8 cm feeder space per bird.
Use 1 nipple drinker per 5 chicks for adequate water access.

(2) Floor And Slat Management

Keep floor and slats clean and dry to prevent footpad injuries.
Inspect slats weekly and adjust slope (3–5°) for optimal drainage.

(3) Environmental Monitoring

Use IoT sensors to track temperature (22–30°C), humidity (50–70%), and CO₂ levels (300–1200 ppm).
Receive real-time alerts for deviations to reduce stress and mortality.

(4) Feed And Water Management

Record feed and water intake daily via smart feeders and drinkers.
Maintain feed conversion ratio (FCR) between 1.2–1.5 in first 12 weeks.
Ensure 98–99% feed accessibility and consistent water supply.

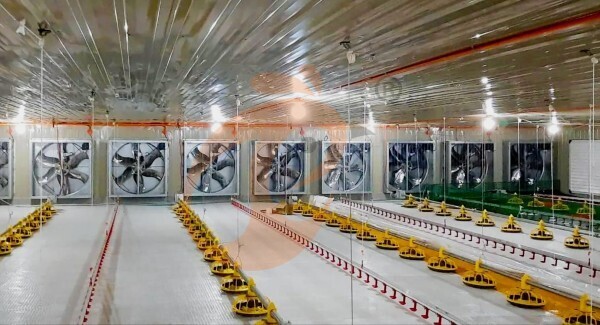

(5) Ventilation And Airflow

Balance airflow to maintain uniform temperature and humidity across the house.
Adjust ventilation as chicks grow or external weather changes.

(6) Hygiene And Labor Efficiency

Implement structured cleaning schedules for floor panels and feeders.
Use tiered feeding and slope-adjusted floor panels to optimize waste management and reduce labor.

(7) Performance Outcomes

Proactive monitoring and management improve uniformity and survival rates by up to 12%.
Optimized growth and environment contribute to higher operational efficiency and ROI.
