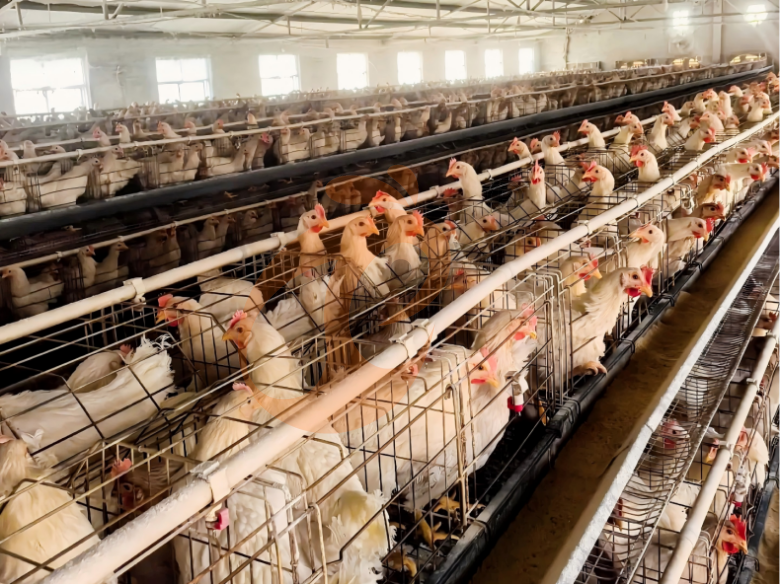

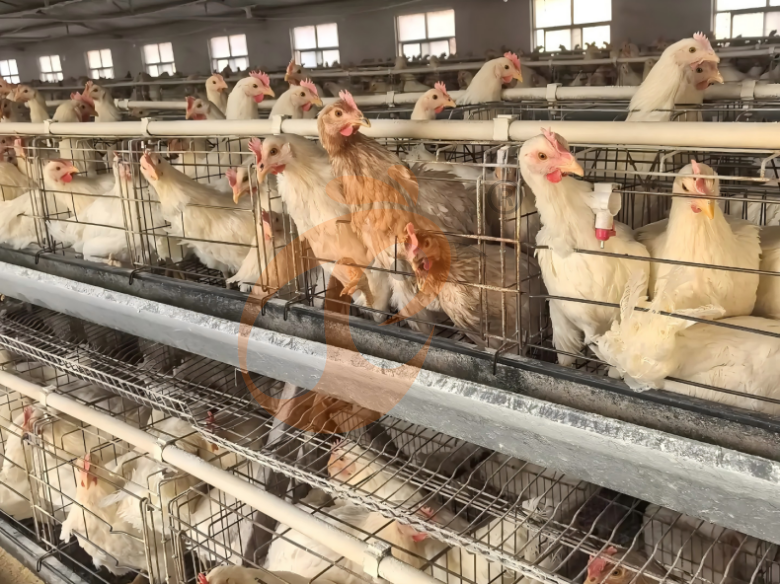

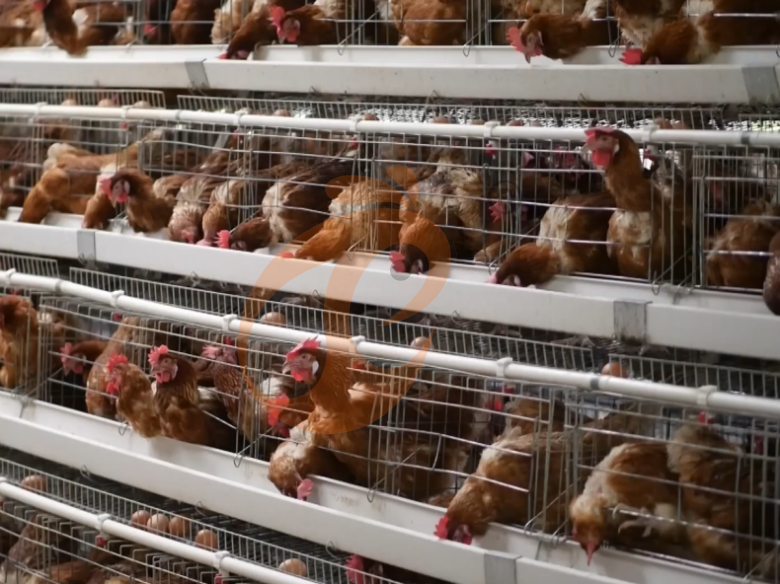

Semi Automatic A Type Layer Battery Cage System

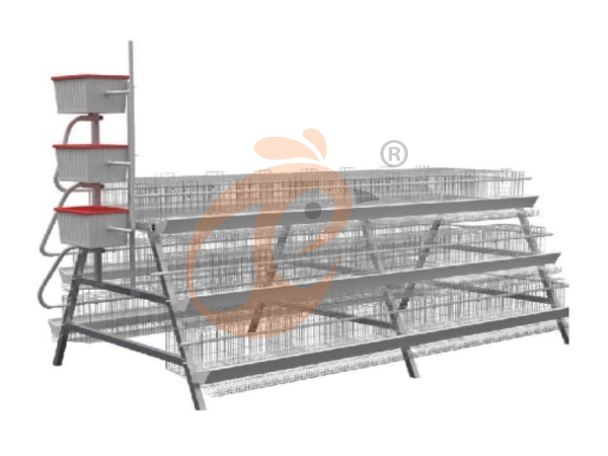

"Quick Viewing Of A Type Manual Layer Battery Cage"

What Is A type Manual Battery Cage?

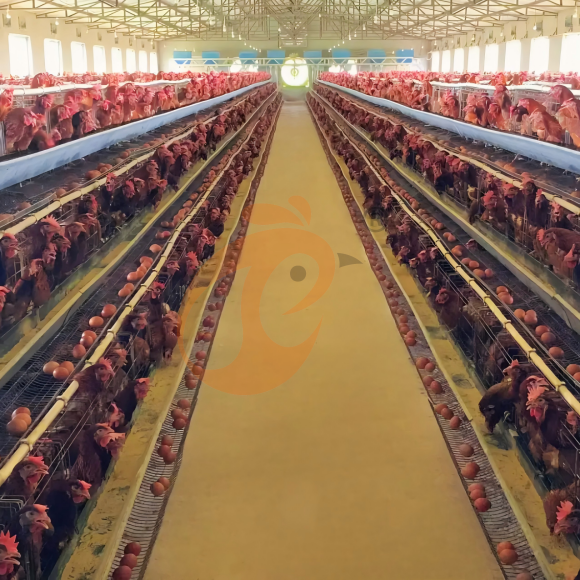

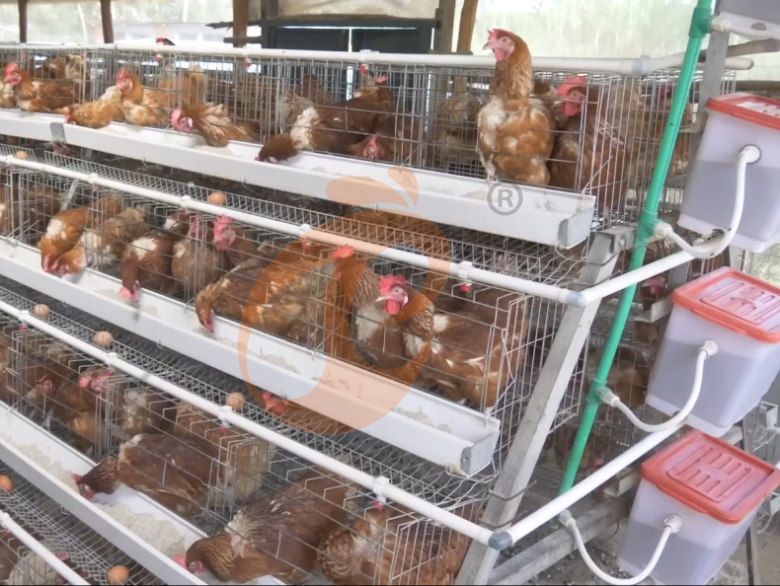

A type manual battery cage sample showing

For less than 10,000 egg laying hen egg production.

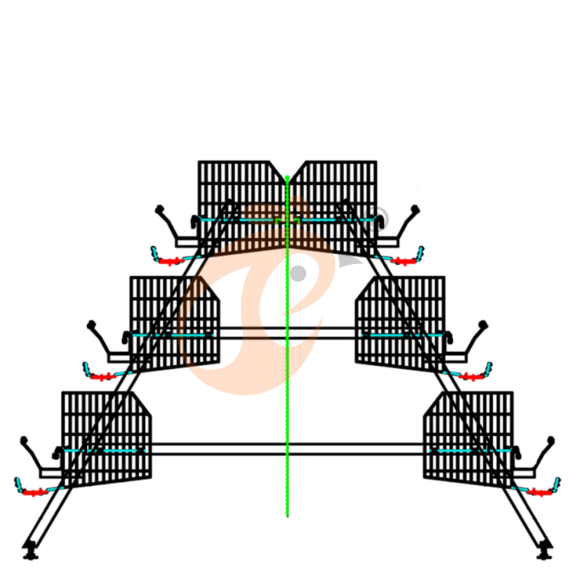

“A-Type” refers to a multi-tiered frame shaped like an “A”.
Materials are high-quality Q235 galvanized steel wire and frame.

Swipe left and right to view excel information

Item	Parameter
Capacity	100-10,000+ layers/house chooses it
Feeding System	Manual
Drinking System	Automatic
Egg Collection	Manual
Manure Cleaning	Automatic

Key Structural Components

Frame & Mesh: Steel frame + welded wire mesh — strong and long-lasting.
Feeding Troughs: PVC or metal troughs — simple design, manual feed filling.
Watering System: Manual tanks with pressure regulators or nipple drinkers.
Egg Collection: Basic manual collection at cage front or bottom.
Manure Handling: automatic scrapers cleaning.

Hot Sale Typical Dimensions

1. Type 1 for sale:

Tiers: 3 tiers
Capacity/set: 96 chickens
L X W X H: 2m by 1.8m by 1.5m
House Size: 50 x 12 x 4.15-5.25 (L x W x H): 7,560 birds
House Size: 100 x 12 x 4.15-5.25 (L x W x H): 15,480 birds

2. Type 2 for sale:

Tiers: 4 tiers
Capacity/set: 160 chickens
L X W X H: 2.2m by 2.4m by 1.75m
House Size: 50 x 12 x 4.15-5.25 (L x W x H): 10,080 birds
House Size: 100 x 12 x 4.15-5.25 (L x W x H): 20,640 birds

Why Choose Taiyu Group's Poultry Farm Equipment

1. Case 1

2. Case 2

Global supplier with proven large-scale installations
Full turnkey project capability — from cages to climate control
Durable, galvanized equipment with long service life
Automation & smart management systems included
Custom design, installation, and after-sales support provided

Main Advantages Of A Type Manual Battery Cages

Lower upfront cost – good for startup small farms.
Easy installation & maintenance – simpler than automated systems.
Better control & hygiene – elevated cages reduce ground contact and disease risk.

How To Handle Chicken Manure With A Type Manual Battery Cages?

Manure falls directly into the manure pit without contacting hens or eggs.
Scraper machines operate at 10–20 m/min, capable of daily or every-other-day removal.
Continuous manure removal reduces ammonia levels by 35–55%, improving respiratory health and laying performance.

WhatsApp to +86 18830120193 – Directly getting detailed introduction, newest price and your poultry house design.

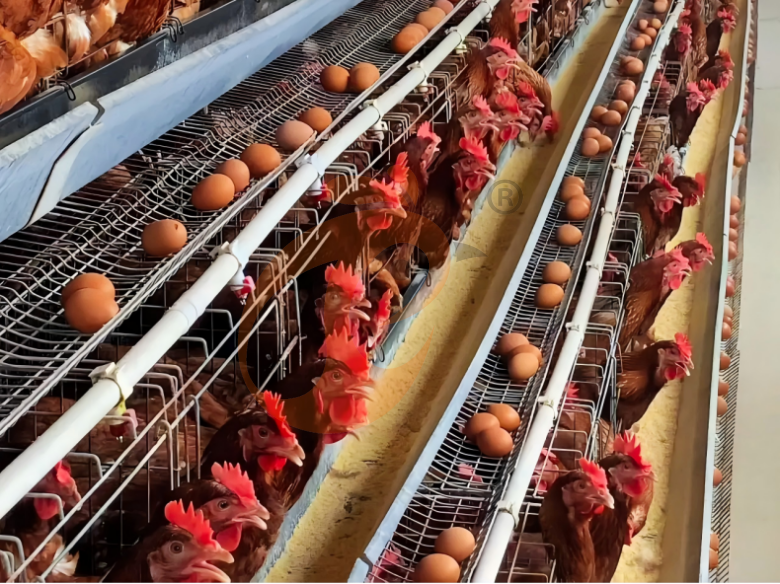

"European Standard Semi Automatic A Type Layer Battery Cage System"

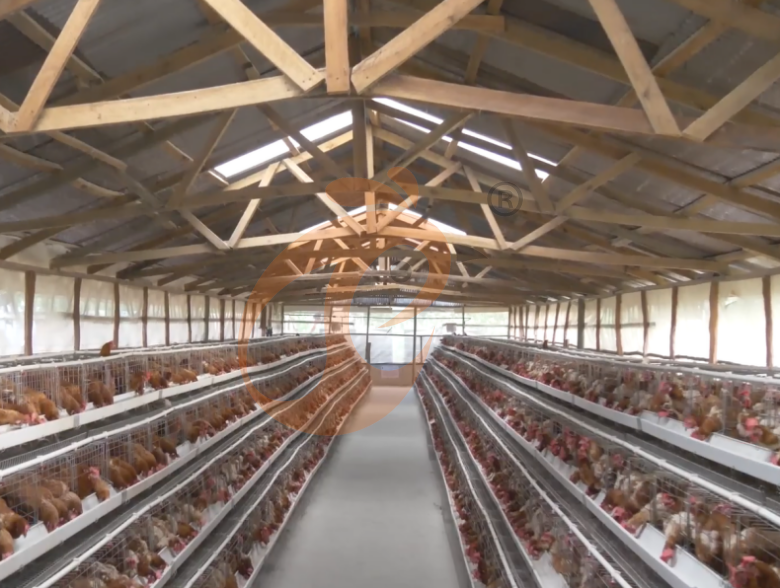

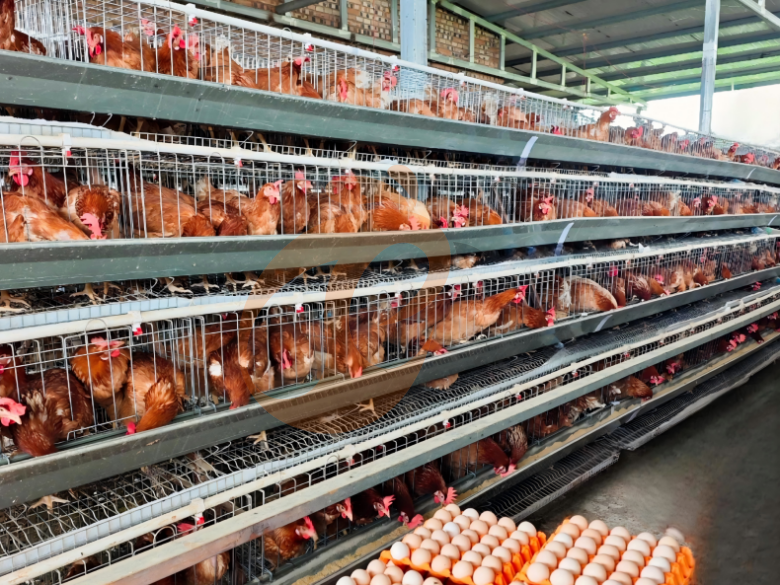

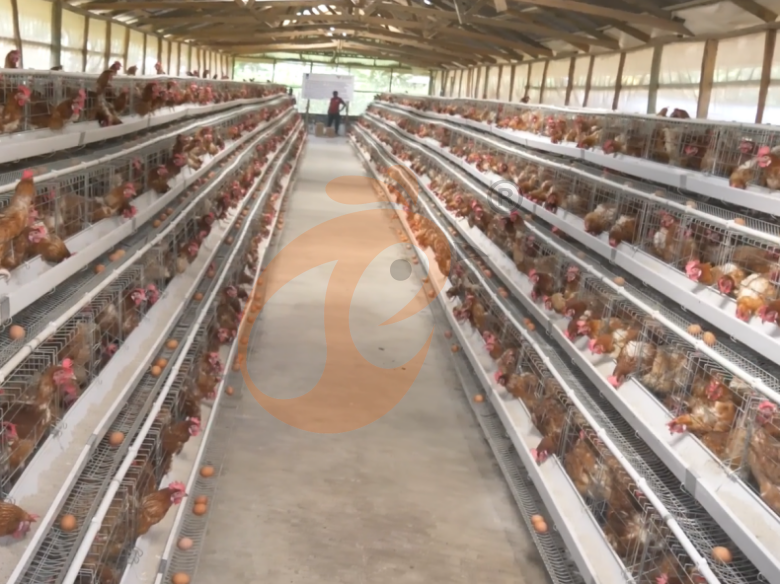

3 Tiers, 2 Rows

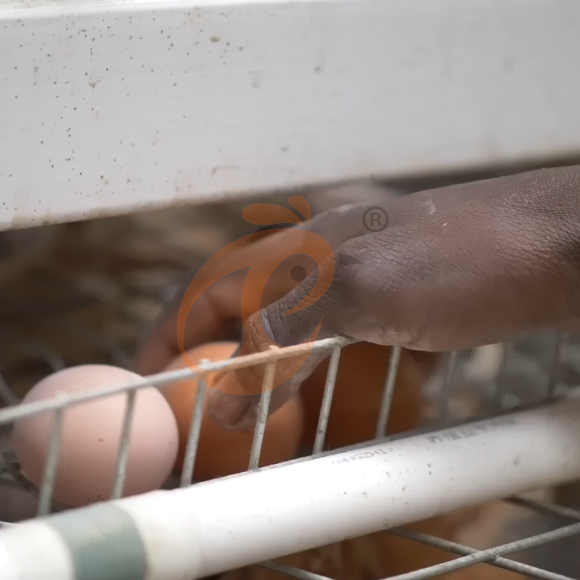

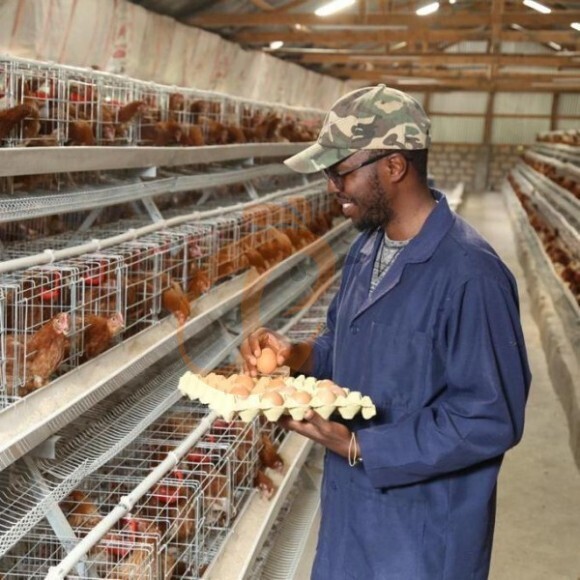

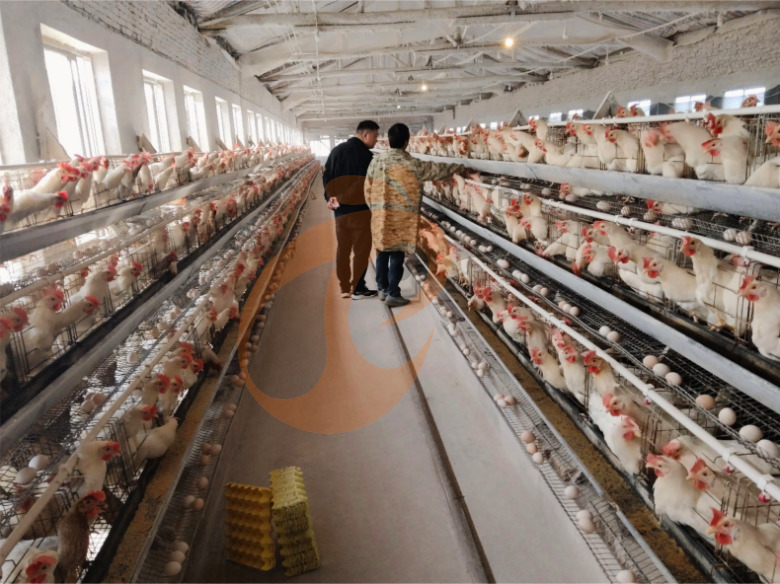

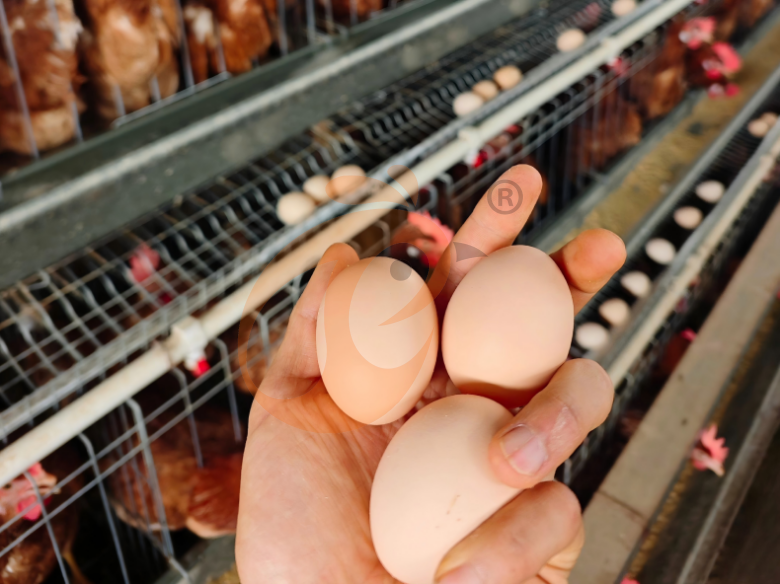

Wroker Picking Eggs

Our design and quality of semi automatic A frame layer battery cage system and poultry farm equipment based on European and USA standard.

All pictures (or videos) of this pages are the application of our semi automatic A frame layer battery cage system in customers' poultry farm. Our technicians have rich experience in localizing poultry farms.

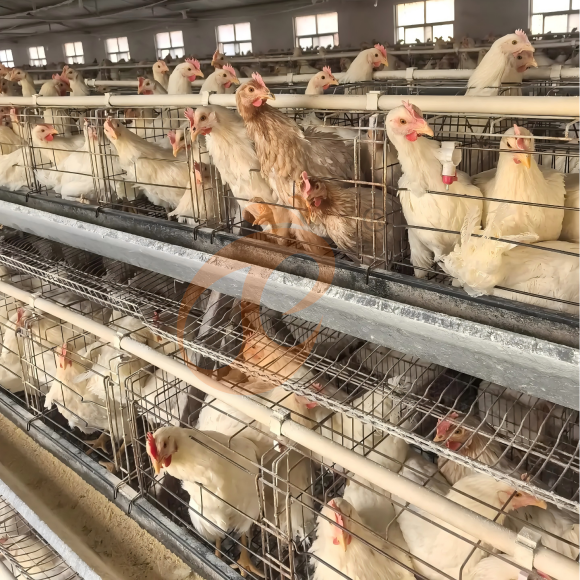

16 Weeks Old

Moving chicken into a well-designed “smart apartment,” enjoying one-touch feeding, constant clean water, and eggs that roll away instantly—all while staying calm, healthy, and laying more premium eggs.

It's what the semi automatic A frame layer battery cage system delivers. Today we are diving into how this chicken cage design acts like a personal caretaker for every hen, maximizing productivity while keeping your balance sheet happy.

1. Concise Specifications Of Semi Automatic A Type Layer Battery Cage System

For your reference only, the following data is estimated, The exact data is based on the actual needs of the project and customer requirements, or our exact quotation.

3 Tiers, 2 Sets

3 Tiers

4 Tiers

5 Tiers

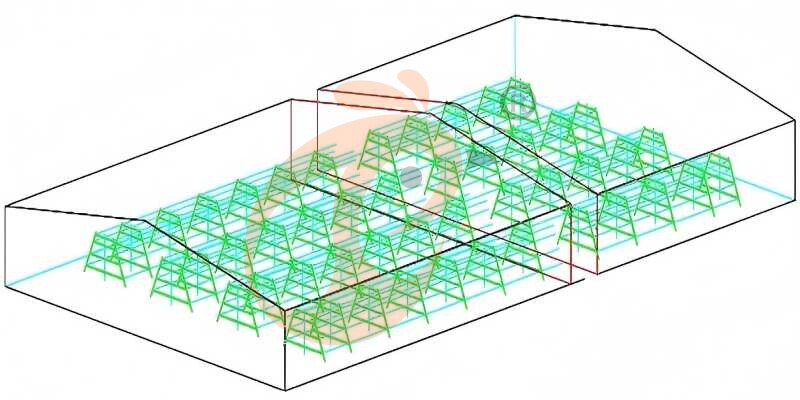

Layout Of Battery Cage System In Poultry House

Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

Component	Regular Data
Cage Model	3 tiers	4 tiers	5 tiers
House Size: 50 x 12 x 4.15-5.25 (L x W x H)	7,560 birds	10,080 birds	12,600 birds
House Size: 100 x 12 x 4.15-5.25 (L x W x H)	15,480 birds	20,640 birds	25,800 birds
Standard Cage Dimension (L x W x H)	2.2 x 2.4 x 1.65m	2.2 x 2.4 x 1.95m	2.2 x 2.4 x 2.25m
Birds Per Set	120 birds	160 birds	200 birds

2. Custom Fit: Choose The Right "Layout" For Peak Flock Performance

Choosing semi automatic A frame layer battery cage system is like selecting a top-tier team uniform—only the right fit unlocks maximum potential.

Our “A-Type smart apartments” offer multiple layouts to meet different bird comfort levels and management needs. The table below is your "housing guide" with numbers.

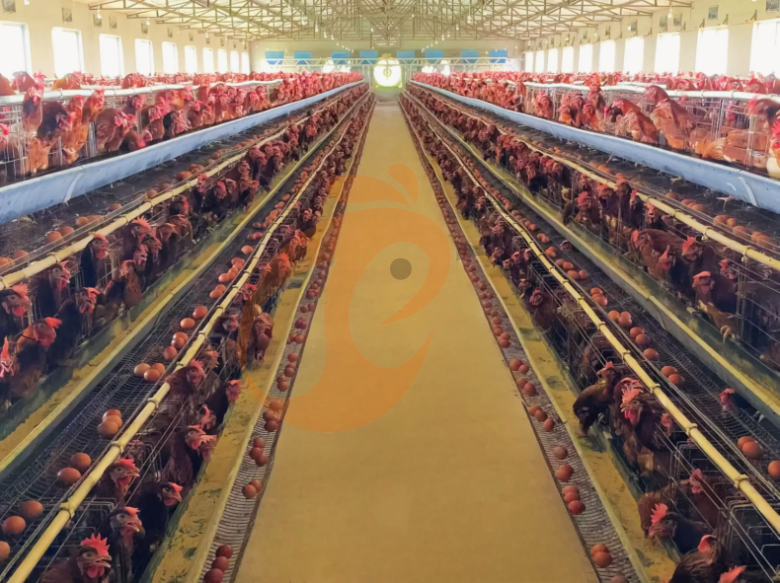

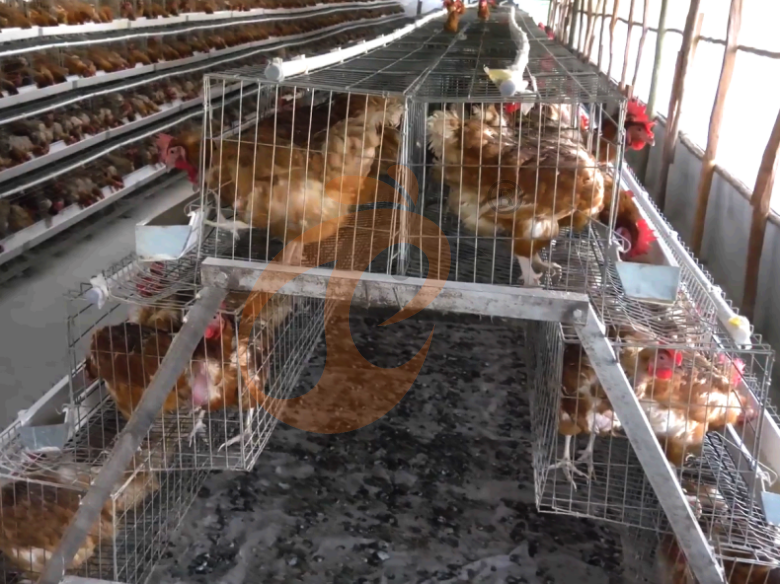

3 Tiers, 2 Rows

A Frame Battery Cage Layout For Layers

Data is for reference only. Swipe horizontally to view full table.

Type	Tier/Set	Size(L x W x H)/Unit(M)	Cell Size(L x W x H) (CM)	Cells/Unit Per Set	Birds/Cells	Birds/Set	Space/Bird(CM2)
A1	3	2.2 x 2.4 x 1.65	43 x 38 x 38	30	4	120	418
A2	4	2.2 x 2.4 x 1.95	43 x 38 x 38	40	4	160	418
A3	5	2.2 x 2.6 x 2.6	43 x 38 x 38	50	4	200	418

"Why Choose Our Semi Automatic A Type Layer Battery Cage System"

3. Comfort By Design: Details That Keep Hens Happy

A great battery cage design is in its details. The semi automatic A frame layer battery cage system is not just about efficiency—it’s a textbook example of hen-focused comfort engineering.

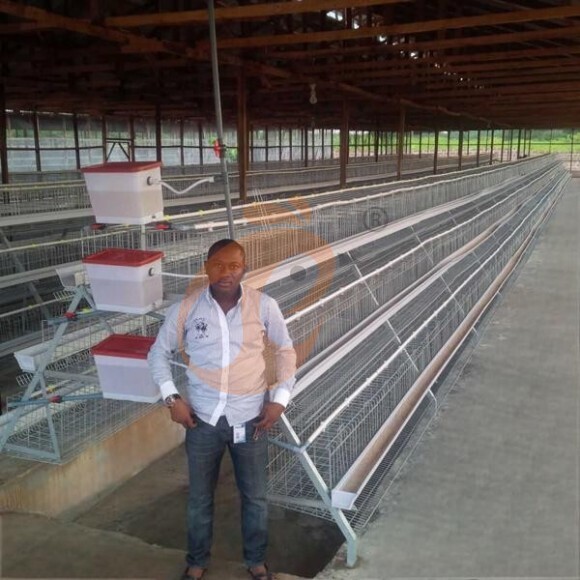

Poultry Farmer

With His Poultry Farm

Comfort Codes Of A-Frame Design

Design Detail	Functional Benefit	Impact On Flock	Quantifiable Data (Typical Values)	Role In Cage Design
Precision Sloped Cage Floor	Gentle egg rolling, minimal collision	Reduced shell cracks, fewer dirty/broken eggs	Egg breakage rate: ≤0.5% vs. 1.2% (manual)	Key for egg collection & protection
Optimized Mesh Size & Material	Smooth support, easy manure fall-through	Less foot dermatitis, drier floor	Mesh spacing: 2.5×2.5 cm;	Welfare & hygiene foundation
Scientific Feeder/Water Line Placement	Easy access to feed and water, less competition	Balanced nutrition intake, lower stress	Feeder space: 10–12 cm/bird; water nipple ratio: 10–12 birds/nipple	Integrated cage design feature
Central A-Frame Open Space	Enhanced ventilation and light distribution	Lower ammonia, improved air quality & light	Air exchange: ≥5 m³/hour per bird; light uniformity: 90–95% coverage	Built-in environmental advantage
Hot-Dip Galvanized Steel Wires	Smooth surface, rust-resistant, easy cleaning	Preserves feather quality, reduces infection risk	Wire zinc coating: ≥200 g/m², lifespan: 25 years	Durability & biosecurity core

These micro-level details directly influence bird health, behavior, and productivity: lower stress = better feed intake = longer laying peaks and lower mortality.

"The Advantages Of Semi Automatic A Type Layer Battery Cage System"

4. Semi-Automation: Your Smart Assistant For Precision Farming

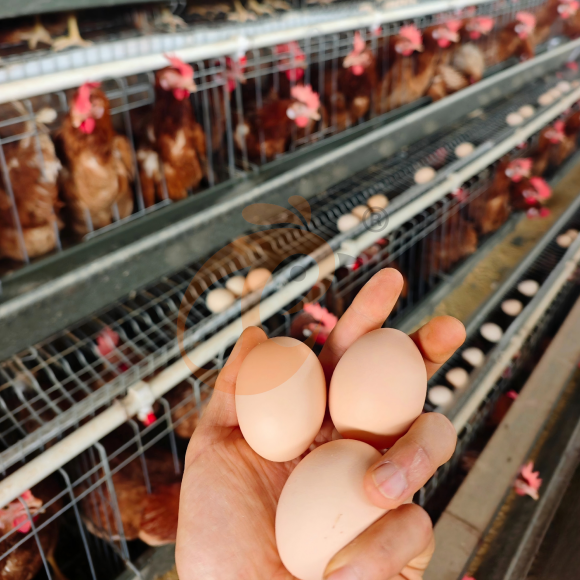

Chicken Laying

This design standardizes daily routines—feeding, egg collection, manure observation—making them easier, faster, and measurable.

Data like feed consumption, water intake, egg output, and manure quality allow early risk detection and fine-tuned nutrition.

Instead of repetitive manual work, you can focus on observing flocks and making better decisions—a far more valuable use of time.

(1) Semi-Auto Systems For Precision Management

Manual Feeding System

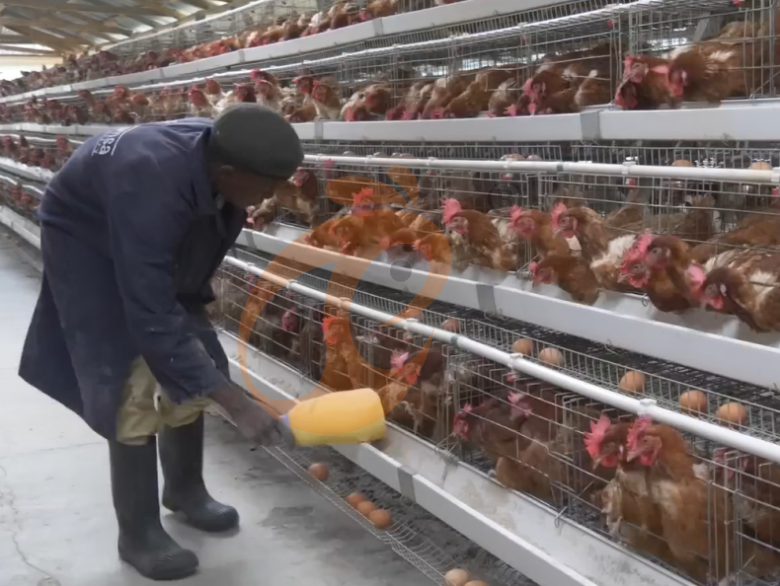

Worker Adds Feed

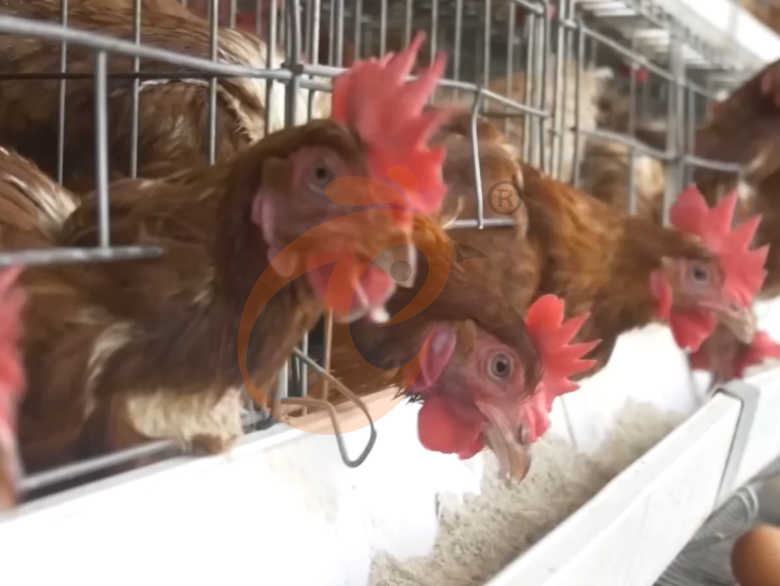

Chicken Eating

Automatic Drinking System

Water Line

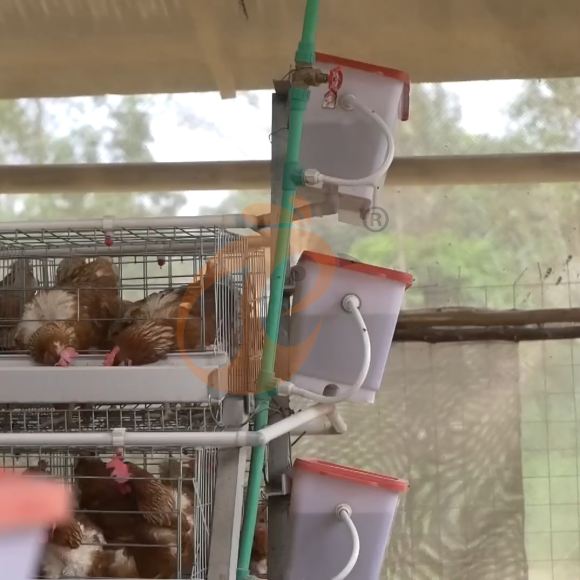

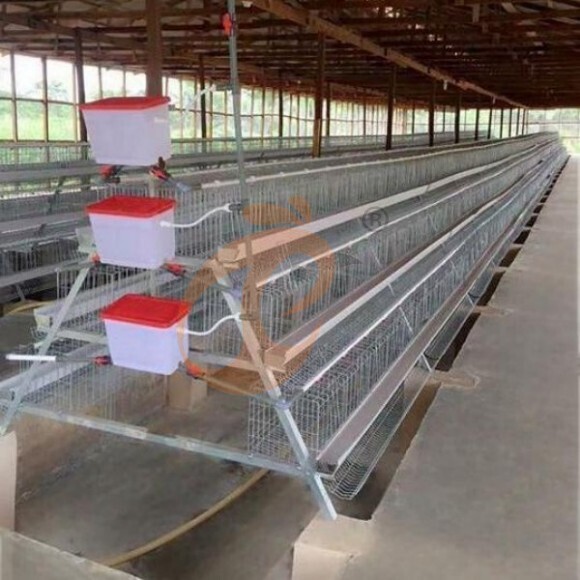

Water Tank

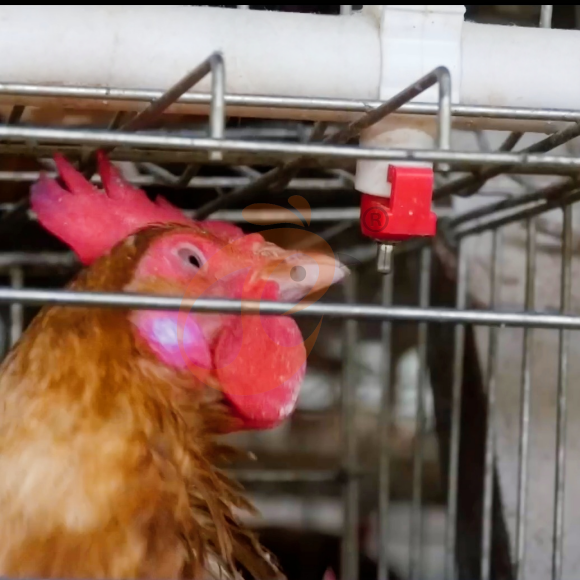

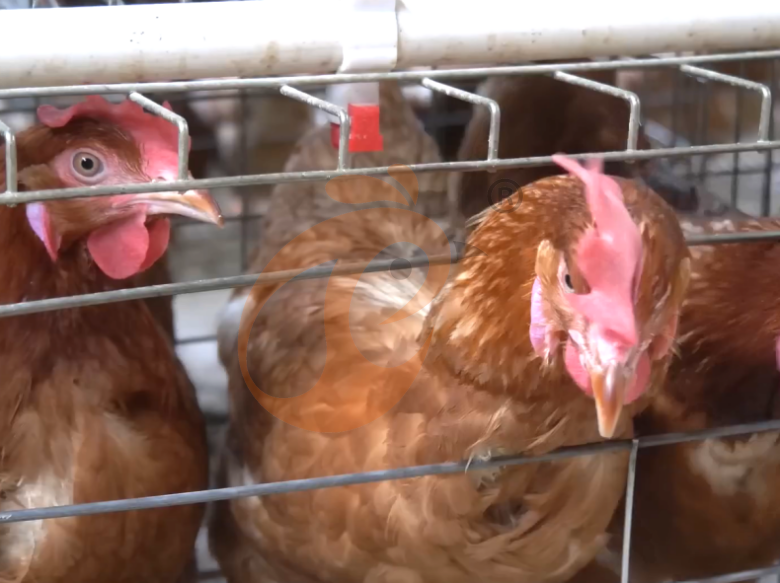

Touching Drinker

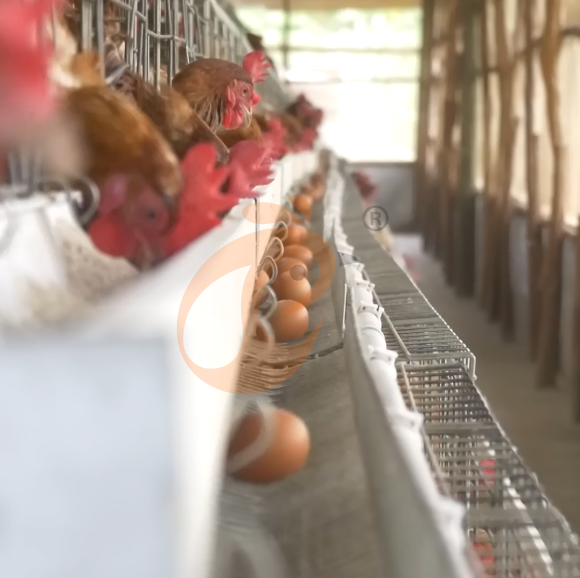

Manure Egg Collection System

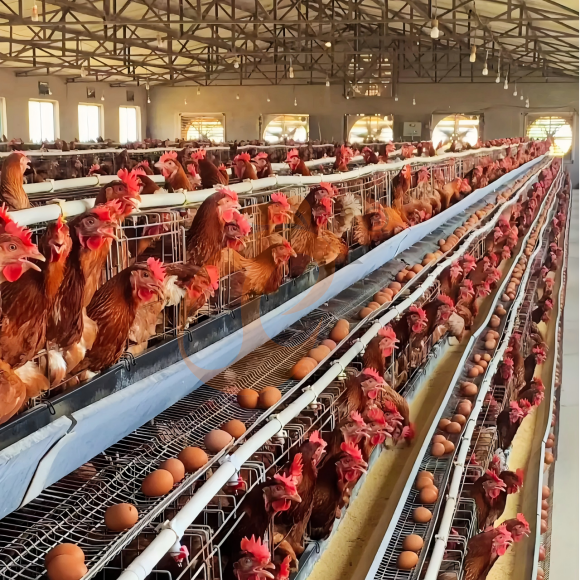

Egg Flow Out

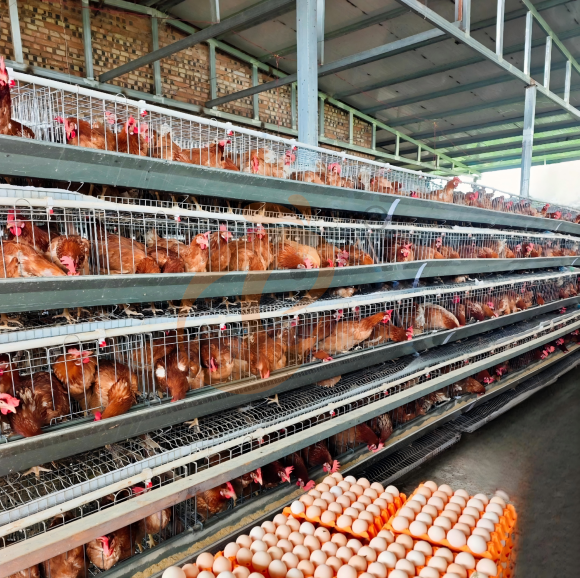

Picking Eggs

To Egg Tray

Automatic Manure Cleaning

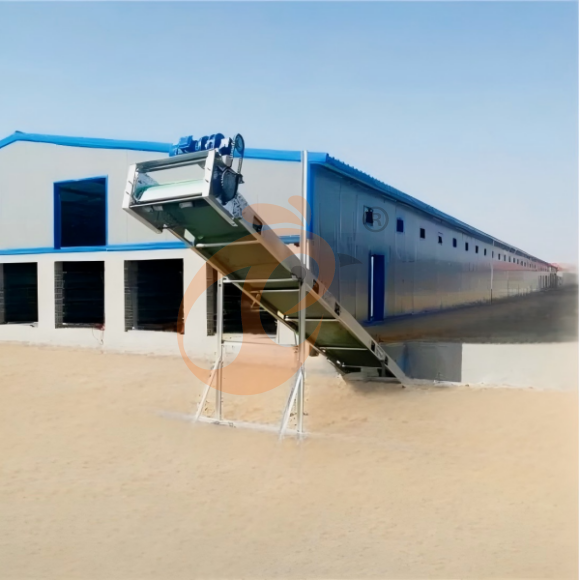

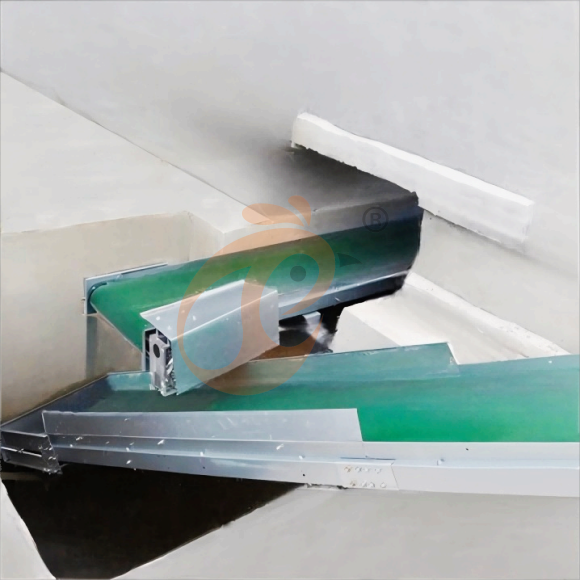

Type 1 Belt Device

Outside To Chicken House

Truck Accepts Manure

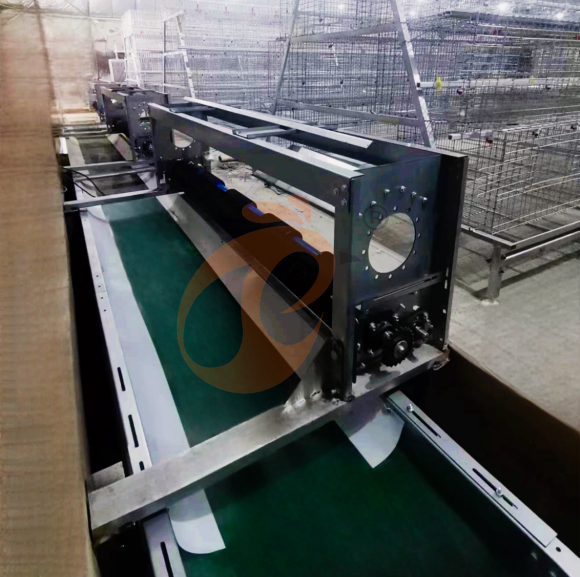

Type 2 Manure Scraper Cleaning

(2) Summary

System	How It Supports "Precision"	Management Value	Typical Parameters	Design Requirements
Manual Feeding	Manual feed delivery using push carts or buckets, supported by wide troughs to reduce spillage	Flexible feeding schedule, direct observation of feed intake	Trough width 90–100 mm, depth 70–90 mm; feed space 10–12 cm/bird	Smooth edges to prevent injury, accessible aisle width ≥1m
Automatic Drinking	Nipple drinkers provide continuous clean water; manual inspection for leaks or blockage	Stable hydration and easy disease monitoring via water consumption	Nipple ratio 1:10–12 birds; flow rate 60–80 ml/min; pressure 15–20 KPA	Stainless steel pipeline, adjustable height 350–450 mm
Manual Egg Collection	Eggs roll to front trays via sloped cage floor, manual tray pickup and packaging	Lower breakage, easier sorting & counting	Floor slope 7–8°; breakage rate ≤0.5%; manual pickup 2–3 times/day	Anti-crack tray material, easy reach design
Automatic Manure Cleaning	Manure drops to pit; optional scraper/belt for easier removal	Cleaner air, reduced ammonia levels	Scraper speed 5–7 m/min (if installed); manual cleaning cycle 1–2 times/day	Clearance ≥200 mm, corrosion-resistant scraper
Modular & Tiered Layout	Easy flock grouping by age or production stage	Targeted feeding, lighting, and vaccination programs	Typical capacity 90–200 birds/set	Independent aisle width ≥1m for easy access
