Basic information

When rearing poultry birds, the type of birds reared end the kind of cage to be used needs to be put into consideration. We categorically divide cages into three categories and they are broiler cages, layer battery cages and pullet cages. Broilers are known for their rapid growth so they attain a body weight of around 2.2 - 2.4kg within 6 weeks because they tend to eat more and drink more than other species so this aids their growth and their cages are designed in such a way that suit their characteristics. Their nipples are different from others

Unlike layers which weighs 1.5 - 1.8kg and attain their sexual maturity at 20-22 weeks. Layers are reared mainly for their production of eggs so they cannot be reared in a broiler cage. The layer battery cages are used in poultries in performing daily poultry task with the ability to produce the desired result for the farmer

These automatic layer cages are made based on the industrialization and intensification of the chicken industry, automatic layer chicken cage equipment and related environmental control technologies have achieved some achievements, such as nipple drinking water technology, automatic feeding technology, cooling technology and livestock

Product description

The layer battery cage has some components which help to perform specific duties with little or no stress such as an automatic feeding hopper which helps take chicken feed from a central hopper or a bin out to feed the birds continuously all day. The automatic egg collector’s conveyor belt takes the eggs to the header, the flexible fingers carefully place the eggs on a cross conveyor, which then take the eggs to the classifier room and this helps to reduce broken eggs

The broiler cages helps in better utilization of the space available and that is important especially when the lands are expensive. In addition, using broiler cage to raise broilers provide better hygienic condition that could lead to improving the health and quality of broilers. The mortality rate as well in is very low unlike other ways of keeping broilers

So many researches done has shown that raising broilers in  broiler cages could provide better production efficiency than raising broilers on the floor. Because of their differences boilers and layers cannot be reared in the same type of cage. Layer birds are reared in layer battery cage while broilers are reared in broiler cages

Specification list

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

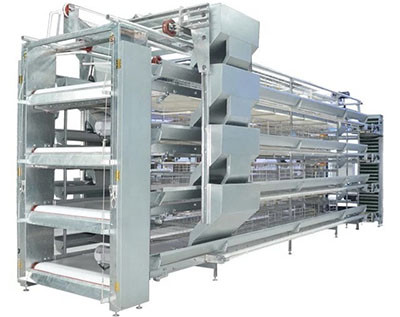

1.Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, 4 birds/cell, LXWXH/set: 2mX2.5mX2.12m, LXWXH/cell: 1960mmX350mmX380mm

2.Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/set: 1.1mX1.9mX2.56m, LXWXH/cell: 1050mmX1000mmX635mm

3.Pullet chicken cage

96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/set: 1.25mX1.5mX2.9m, LXWXH/cell: 1200mmX600mmX625mm

4.Breeder chicken cage

280 female and 40 male/set, 4 tiers/set, 8 cells/set,  35 female and 5 male/cell, LXWXH/set: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5.Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6.Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

Features

1. It enables the birds to feed evenly

2. Its centralized management saves energy and resources, reduces the incidence of avian diseases, unique cage door design which effectively prevents the birds from moving up and down to waste fodder

3. It increases the production efficiency

4. The automatic manure remover removes manure is thereby reducing harmful gases

5. It has higher automation which can save the land resources, energy and labor cost, feed and reduces the cost of drug use

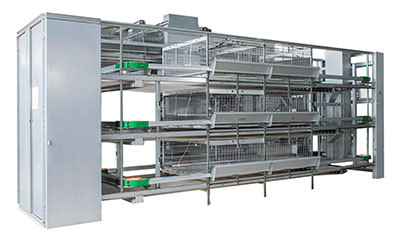

The differences between layer battery cage and broiler cage

1. Layer can only be kept in their cage at the point of laying eggs while broilers can be kept in their cages right from a day old

2. The feed capacity of layer battery cage is different from that of broiler cage

3. The bottom net of layer battery cage is not flat while the bottom net of broiler cage is flat

4. The broiler cages must be caged. This is necessary for preventing the chicken from running away and easy to feed, so the horizontally adjustable baffle in front of the cage and the adjustment range is larger than that of battery layer cage

5. Broiler cages does work with an egg collection system while layer battery cages works with it

Advantages

1. It reduces the cost of labour

2. It has a full automatic feeding and watering system

3. It has a reasonable design of meshes which makes more room for the circulation of air and reduces the spread of diseases

4. It is easy to operate and maintain

5. It has a unique environmental control system that ensures the house has fresh air

6. It has multiple choices for your cage tier

Our services

1. We provide detailed information to our customers

2. We sell long lasting equipments to meet our customers’ demands

3. We give our first time customers suggestions on how they should go about their poultry farm

4. We give satisfactory answers to any questions they may have concerning our products

5. We are well experienced on the product we are manufacturing

6. We follow up our customers from time to time concerning the equipments they purchased

Frequently ask questions

Q: How does the automatic manure cleaning system work with the broiler cages?

A: The automatic manure cleaning system works with the broiler cages to ensure a clean and healthy environment for the birds

Q: Is broiler cages really needed in a poultry farm?

A: Yes, because it has an automatic feeding, drinking, cleaning, management and an automatic control system, which ensures the energy conservation and that makes it really efficient in a poultry farm

Q: What production system is best for broilers?

A: Broiler cage system is the most efficient for boilers because with broiler cage system feeding and caring for the broiler becomes pleasant and fruitful and in such conditions, the bird grows quickly
